Brand Name: | shengfeng |
---|---|
Temperature of Media: | Medium Temperature |
Material: | Casting |
Pressure: | Medium Pressure |
Standard or Nonstandard: | Standard |
Model Number: | H42X |
Place of Origin: | China (Mainland) |
Port Size: | DN50-DN300 |
Media: | Water |
Power: | Hydraulic |
Structure: | Check |
Nominal pressure: | 1.6 2.5mpa |
Nomianal diameter: | DN50-DN600 |
applicable temperature: | 0-80 |
applicable medium: | water |
Quick Details
Specifications

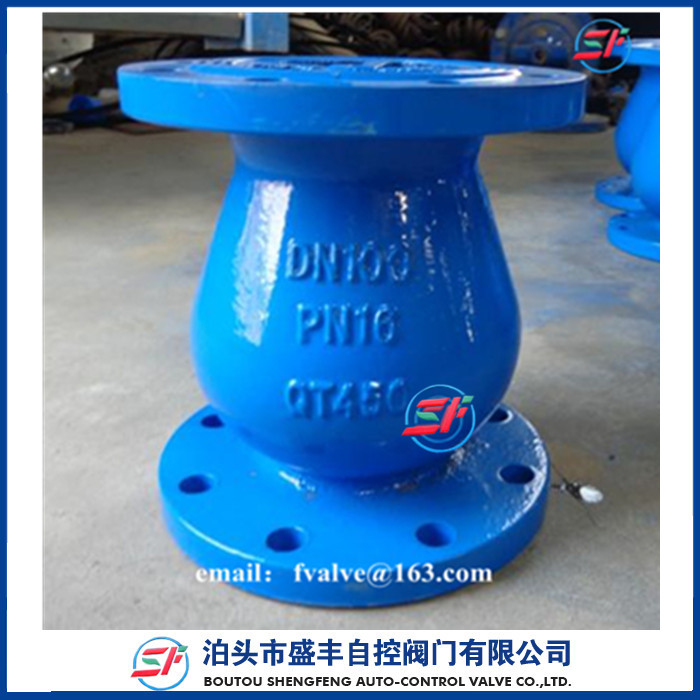

H42X mute check valve purpose:
this valve is mainly used for water supply and drainage, fire protection, havc system,can be installed in the pump outlet place,to prevent the backflow medium and water hammer pump damage.
Characteristics:
Internal parts are streamline design,small flow resistance,energy saving,on its own spring force closed.Can prevent the water hammer,simple structure,reliable in performance.this valve should be installed vertically.
Performance specification:
Nominal diameter:DN50-DN500
Applicable tempertaure:100
Applicable medium:water
Main parts materials:
Body\cover:ductile iron
Stem:2Cr13
Diaphragm:EPDM
Seal ring of disc:EPDM
Spring:stainless steel
Disc\seat:brass
Surface coating:epoxy resin
