| Rated Voltage: | 16-50VDC |
|---|---|
| Capacitance: | as customer requirements |
| Application: | Power |

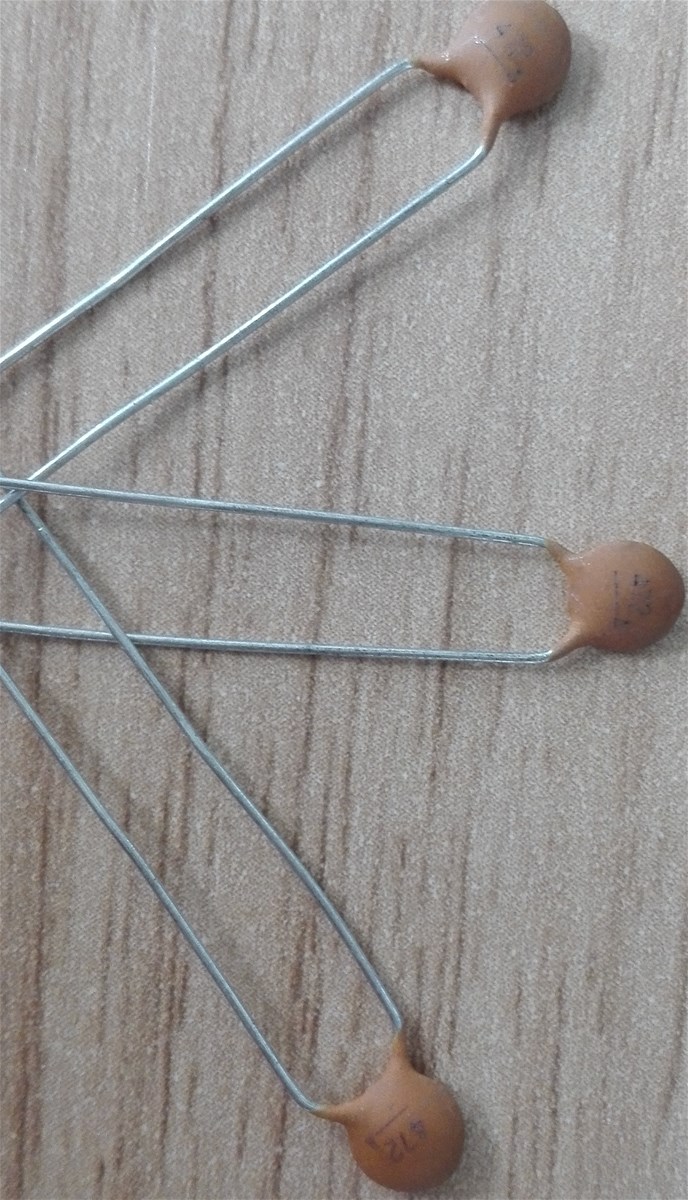

| Type: | Ceramic Capacitor |
| Brand Name: | gjs |
| Operating Temperature: | -30-105 |
| Package Type: | Through Hole |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| operating temperature: | -30--85℃ | |||||||
| Rated working voltage: | 16VDC,25VDC,50VDC | |||||||
| Test voltage: | 2 times of the rated voltage | |||||||
| Dissipation factor: | at 1khz, 1±0.2Vrms,25℃16v≤7%;25V, 50V≤5% | |||||||
| Insulation Resistance(I.R)at 25℃: | 16V: 100MΩ or 10MΩ·uf,Choose the small value; | |||||||
| 25V,50V: 1000MΩ or 20MΩ·uf choose the small value | ||||||||
| Feature: | |||||||||||||||||||
| Chip of capacitors is surface layer Semiconductive structure | |||||||||||||||||||
| High capacity | |||||||||||||||||||
Small size
|
