| Brand Name: | shengfeng |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Casting |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | F4 |
| Place of Origin: | China (Mainland) |
| Port Size: | DN50-DN600 |
| Media: | Water |
| Power: | Hydraulic |
| Structure: | Gate |
| Nominal pressure: | 1.0 1.6 2.5mpa |
| shell test: | 1.5 2.4 3.75mpa |
| medium: | water |
Quick Details
Specifications
Product discripition:
Groove gate valve is the introduction of the European high-tech rubber build technology production,overcoming the rubberaging and rust,etc Got stuck,the valve using the elastic deformation of flexible disc compensation funtion to achieve good sealing effect,the valve is open lightweight,realiable sealing,good elastic memory and searvice life signidicant advantages such as long,the products are widely used as regulation,river closure device.
Material of main parts:
| No | Part | Material |
| 1 | Body | Ductile iron |
| 2 | Disc | Suctile iron packed with NBR |
| 3 | Bolt | CS SS |
| 4 | Gasket | EPDM NBR |
| 5 | Cover | Ductile iron |
| 6 | Stem | Stainless steel |
| 7 | O-ring | EPDM silicone |
| 8 | Thrust bearing | Brass |
| 9 | Bolt | CS SS |
| 10 | Gland | Ductile iron |
| 11 | Dust proof gasket | EPDM NBR |
| 12 | Hand wheel | Ductile iron |

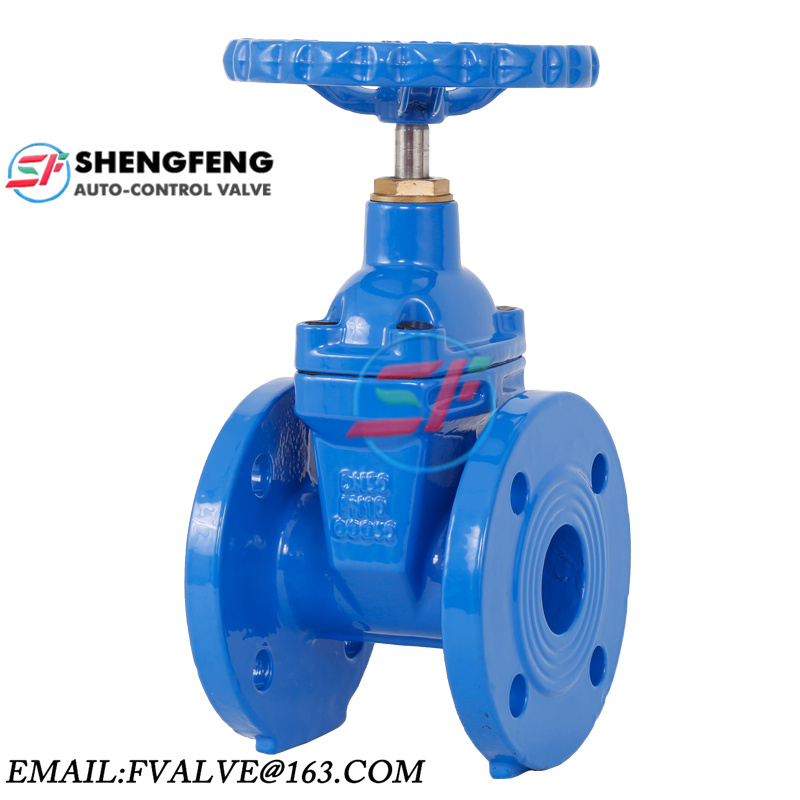

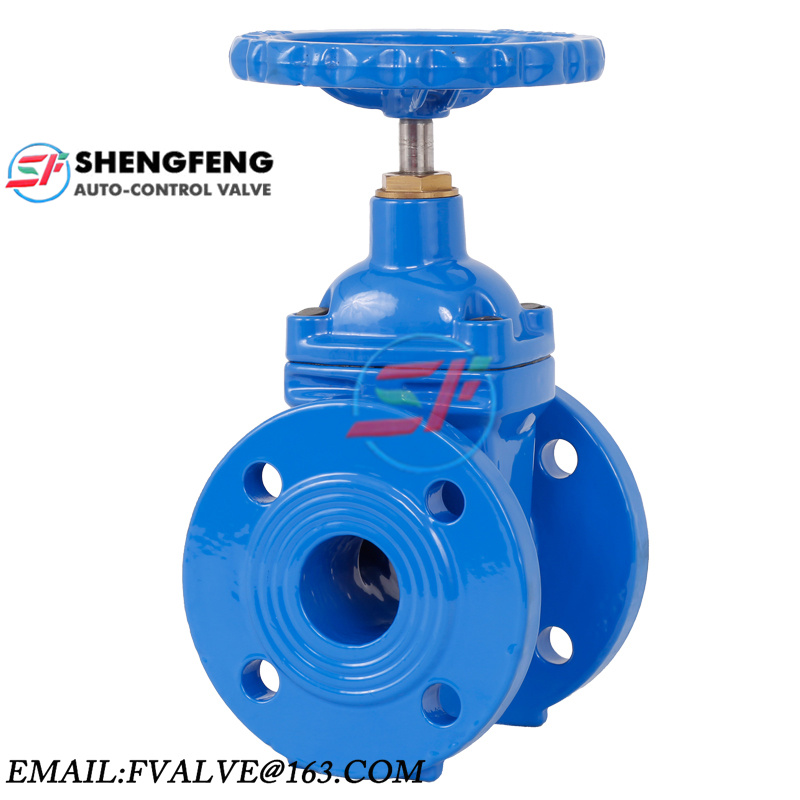

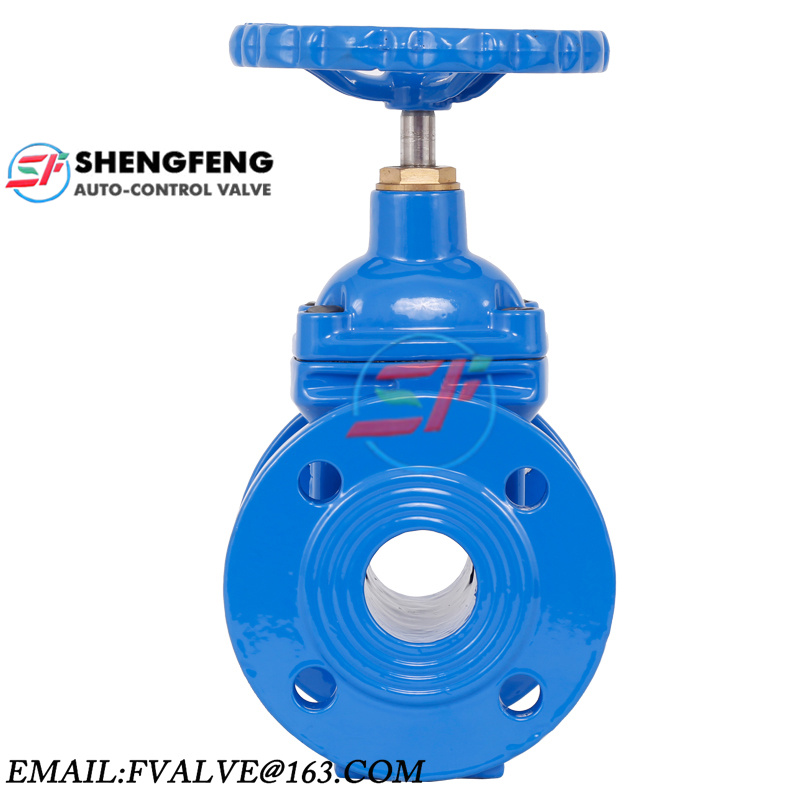

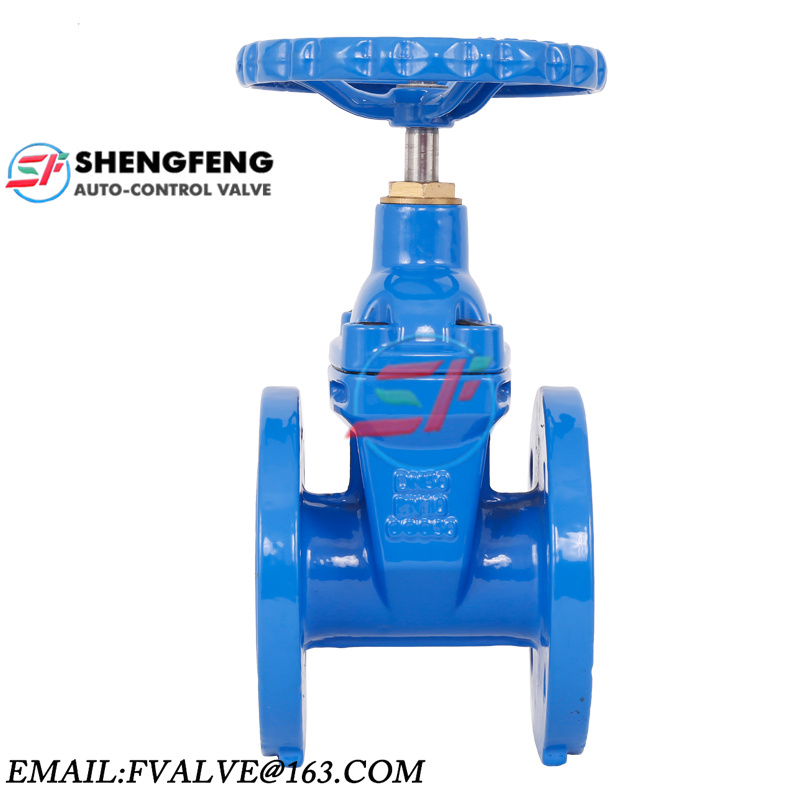

Product photo:
