| Brand Name: | ecvv |
|---|---|
| Advertising Type: | Indoor |
| Interface Type: | Touch screen:infrared/capacitive |
| Application: | Indoor |
| Material: | Metal Case + Toughened |
Quick Details
Specifications

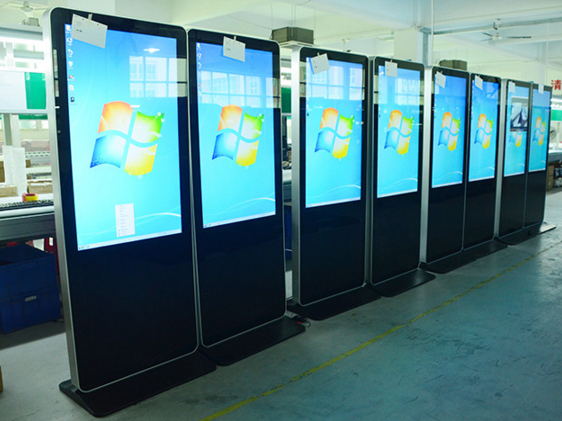

Product Description for 55 inch floor stand digital signage,totem,LCD advertising screens
| Main Features | ||||||||||
| 1. Ultra-high-fidelity sound, pleasant stereo sound 2. Ultrathin and ultra-light hardware case, delicate and beautiful 3. Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill! 4. Verity and complete software, stable and reliable 5. Have a lock, anti-theft functions 6. Widely used in the bus, building and lift room, supermarket, pubic places, train etc | ||||||||||
| Specification | ||||||||||
| Model No. | US-AD550LF,US-AD550NF | |||||||||
| Panel size | 55″ TFT-LCD | |||||||||
| Display area(mm)/mode | 1209.6×680.4 16:9 | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.63(H)×0.63(V) | |||||||||
| Brightness (nits) | 500cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| RJ45 | Included(Network version only) | |||||||||
| 3G / WiFi Module | Included(Network version only) | |||||||||
| USB | 1 ( USB2.0 interface) | |||||||||
| SD | 1 (Compatible MMC/MS) | |||||||||
| CF | 1(optional) | |||||||||
| L/R audio input | 1 (RCA*2) | |||||||||
| L/R audio output | 1 (RCA*2) | |||||||||
| Speaker | 2×5W(9Ω) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Remote controller | IR Remote Controller | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||||
| Maximum power consumption | <=280W | |||||||||
| Standby power consumption | <5W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 20%~85% | |||||||||
| Storage humidity | 10%~90% | |||||||||
| Appearance | ||||||||||
| Color/appearance | White,black,customized | |||||||||
| Body Dimension | 1900(H)*886.78(L)*90(W)mm | |||||||||
| after packing size | 1990mm×1030mm×250mm | |||||||||
| Case | Metal case SPCC | |||||||||
| Installation | Floor-standing | |||||||||
| Gross Weight | 108kg | |||||||||
| Quality Standard | ISO9001,CCC | |||||||||
| Detailed functions | ||||||||||
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
| Audio format | Wave/MP3/WMA/AAC | |||||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
| Image resolution | 480P/720P/1080P | |||||||||
| Payment terms |
| Sample Leading time | 3~5 working days | |||||||||
| Bulk Order Leading time | 10~ 12 working days | |||||||||
| Payment term | T/T---100% payment before production for sample,30% payment before production and 70% balance before shipping for bulk order. | |||||||||
| Warranty | 1year | |||||||||
| Transportation way | by Express, by air, by sea | |||||||||
