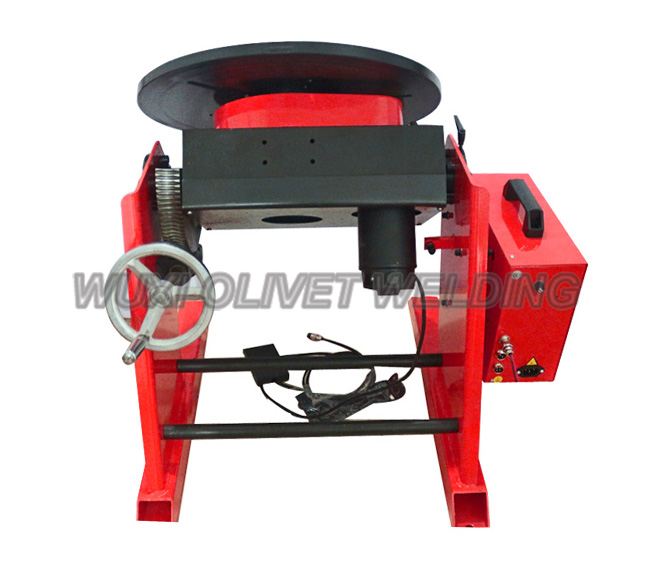

- HBJ-CNC Series

Olivet's range of welding positioners provides the quickest means of both rotating and tilting through 360 degrees while allowing maximum access to the workpiece.

 - HBJ-CNC Series

Stable Rotating Process

Olivet has a comprehensive range of positioner for automatic welding. these very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's HBJ-CNC Series  are with capacities ranging for 100 to 300kgs.

Features

for annular welding, cutting, polishing and assembly.

Easy to set up a small welding center equipped with quick chuck, torch holder and roller supports.

Program infinitely variable speed control system.

Program specify accurate delay time and angle of rotation.

Compact and robust design, easy to operate.

Scope of Delivery

A.  1 Power and 1 Idler turning rolls

B.  1 Electric control system

    1 control panel

1 foot switch

Main Technical Parameters

Model	Horizontal load	Vertical Load	Rotation speed	Tilting range	Table dia.	Table center  hole
HBJ-CNC100	100 kg	50 kg	0.5-6 rpm	0o-90o/ manual	400 mm	80 mm
HBJ-CNC200	200 kg	100 kg	0.2-2.5 rpm	0o-90o/ manual	400 mm	80 mm
HBJ-CNC300	300 kg	150 kg	0.2-2.5 rpm	0o-90o/ manual	500 mm	170 mm
