- SLBT Series

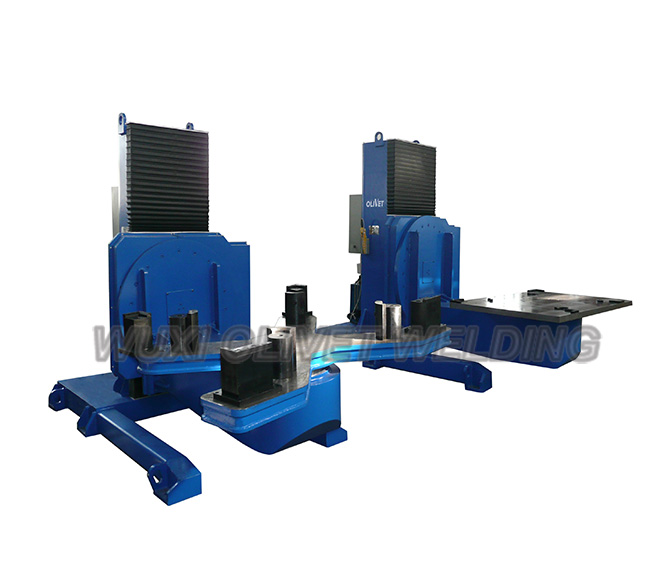

L type three axies positioners are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable.

Stable Rotating Process

Olivet company has a comprehensive range of positioner for. these very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's positioners are with capacities ranging for 100 to 200,000kgs.

 are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable. They have infinitely variable height control as a result of a hydraulic cylinder and remote control of all functions.

Scope of Delivery

A.  1 Main body

B. 1 Lifting system

C.  1 Electric control system

    1 control panel

    1 remote pendant

    1 foot switch

Main Technical Parameters

Model	Max. Load	Rotation peed	Tilting range	Tilting Speed	Rotation motor	Tilting Motor	Elevating stroke
SLBT-05	500 kg	0.1-1 rpm	360o	1 rpm	0.75kw	1.5 kw	500 mm
SLBT-10	1,000 kg	0.1-1 rpm	360o	1 rpm	1.1 kw	2.2 kw	600 mm
SLBT-15	1,500 kg	0.1-1 rpm	360o	1 rpm	1.5 kw	2.2 kw	700 mm
SLBT-30	3,000 kg	0.1 – 1 rpm	360o	0.5 rpm	1.5 kw	3 kw	800 mm
SLBT-50	5,000 kg	0.1 – 1 rpm	360o	0.5 rpm	2.2 kw	4 kw	1200 mm
SLBT-100	8,000 kg	0.1 – 1 rpm	360o	0.4 rpm	3 kw	5.5 kw	1500 mm
