Product Main

Quick Details

Brand Name: Secukey
Communication: 125KHz
Power Supply: 12 V DC
Capacity: 3000
Dimension: 128mm*48mm*26mm
Model Number: SF1
Place of Origin: China (Mainland)

Specifications

SF1 is a waterproof metal case standalone fingerprint access control with integrated EM reader.
IP66 waterproof makes it very suitable for outdoor use; with the slim design, it is an ideal choice to install on door frame.
Waterproof Access Control Reader

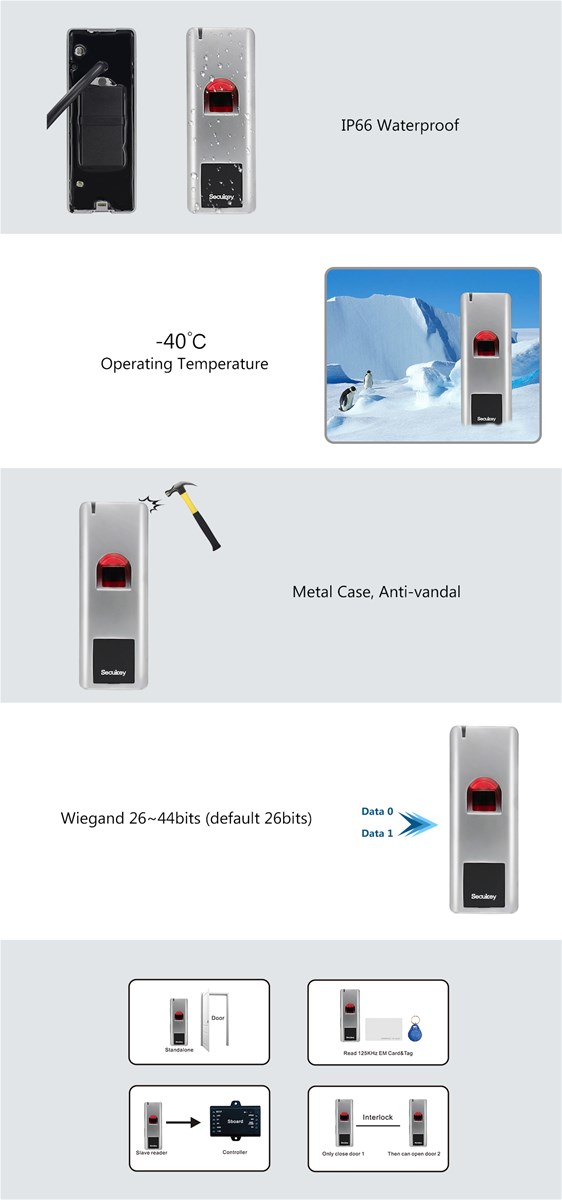

Main Features:

> Waterproof, up to IP66
> Metal Design & Anti-Vandal
> Standalone, one relay
> 1,000 fingerprint, 2,000 card users
> Wiegand 26~44 output
> Pulse mode, toggle mode
> Multi fingerprints/cards access
> Interlock, Support Principal User




Specifications:

User Capacity
Fingerprint
Card
3000
1000
2000
Operating Voltage
Idle Current
12V DC
 < 45mA
Proximity Card Reader
Radio Technology
Read Range
EM
125KHz Proximity Card
1~4 cm
Fingerprint Reader
Resolution
Identification time
FAR
FRR
Optical Fingerprint Module
500DPI
<1S
<0.001%
<0.01%
Wiring Connections
Relay output, exit button, alarm, door contact, Wiegand output
Relay
Adjustable Relay Output Time
Lock Output Load
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
Wiegand Interface
Wiegand 26~44bits output
Environment
Operating Temperature

Operating Humidity
Meets IP66
-30°C ~ 60°C (-22°F ~ 140°F)--Default
-40°C ~ 60°C (-40°F ~ 140°F)--Optional
10%RH ~ 99%RH
Physical
Color
Dimensions
Unit Weight
Shipping Weight
Zinc-Alloy
Silver
L128 x W48 x H26 (mm)
400g
500g
