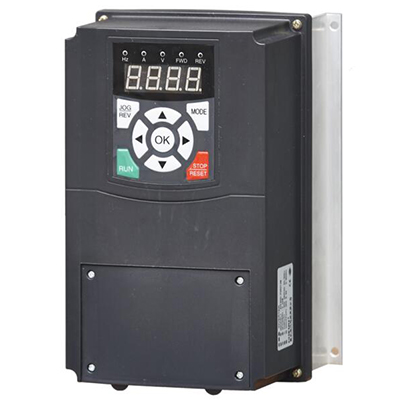

ZVF600 Series pump control inverter is the company's own research and development of high degree protection pump inverter,
Adapt to a variety of sensor signats, simple operation, high reliability, low noises, can be individually controlled a pump and can also
Be more on-line operation


1. High protection IP54, All-round anti-corrosion anti-splash water
2. High performance V/F and vector control
3. Water supply special design, water shortage protection, water coming, start automatically
4. Single pump constant pressure, maine and auxiliary pump single-line networking, automatic control
5. Antifreeze, rust-proof function, more humane protection for protecting pump
6. One-button pressure setting, quick parameter view
7. Dedicated water supply function and fault protection function
8. Professional heat-resistant design, small power, without fan can be more reliable
9. Directly installed on the motor, no need for the cabinet, simple and convenient to operate

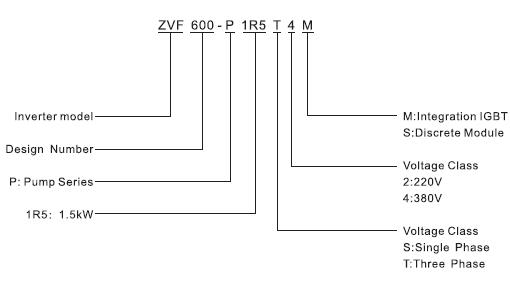

Inverter Model	Voltage(V)	Power(kW)	Output Current(A)	Figure
ZVF600-P0R7S2/T2M	220	0.75	5	Fig.1
ZVF600-P1R5S2/T2M	220	1.5	7.5
ZVF600-P2R2S2/T2M	220	2.2	10
ZVF600-P3R7T2M	220	3.7	16	Fig.2
ZVF600-P0R7T4M	380	0.75	2.5	Fig.1
ZVF600-P1R5T4M	380	1.5	3.7
ZVF600-P2R2T4M	380	2.2	5
ZVF600-P3R0T4M	380	3.0	6.8
ZVF600-P4R0T4M	380	4.0	9.0	Fig.2
ZVF600-P5R5T4M	380	5.5	13
ZVF600-P7R5T4M	380	7.5	17
