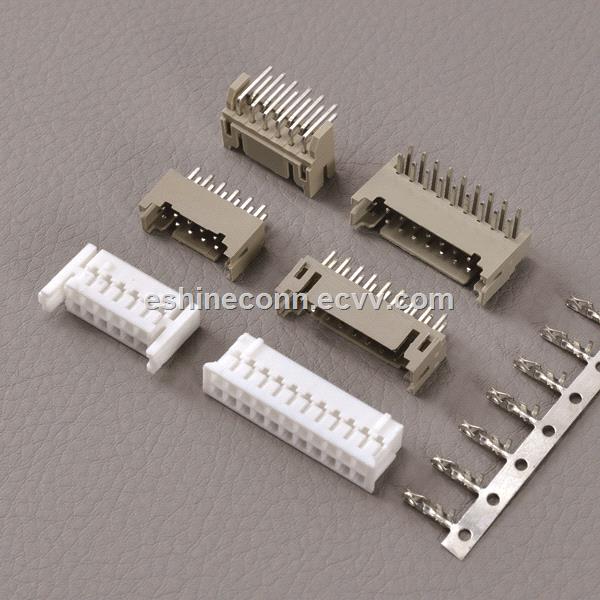

Equal JST PHD 2.0MM Pitch Disconnectable Crimp Style  Wire to Board Connectors Housing, Terminal,Wafer for Robotics, 2.0



Name	JST PHD 2.0mm connector	Application	Signal, power Supply, and output circuits
Connector	JST PHD connector	Circuits/poles/pins	2~16
Pitch	2.0mm	Certificate	ROHS, UL,HF

Descriptions:

Fully shrouded header

Reliable contact

this is a 2.0mm pitch, crimp style, double-row, wire-to-board Connector. It is designed to meet the demand for high-density and low-profile Connection.

Compact

It is widely used in much kind of power supply, signal, and Output circuits that appear in consumer electronic products.

They can be equal JST, Molex, JAE, AMP, TYCO, Hirose, Yeonho, Civilux, Samtech ect famous parts.





Housing	Equivalent of JST PHDR-(08~34)VS
Contact:	SPHD-002T-P0.5, tin plated
Shrouded Header/wafer	B(8~34)B-PHDSS Top entry, Side entry; DIP B(8~34)B-PHDSS-B
Pitch Centerline	2.0mm
Circuits/poles/pins	2~16
Number of Rows	Single
Current rating	5A AC,DC
Voltage rating	250V,AC,DC
Wire range	AWG24~28



Application:

Robotics, PCB assemblies, Signal-jumpers; High-power solutions, Computers, Notebook PC,LCD, Digital camera, PAD, LED Lamp, Scanner, BT alarm button, taximeter, Fingerprint machine, flat colorful TV, Power source for electronic communication, Business machine, Telecommunications, Home appliances, Medical equipment, Cell phone, Security systems, Car, ATM Machines, Inkjet, MFP/LBP, Projector, RAILWAYPRODS, etc. Industrial.

If you can't find the part number Here, please contact us or send your drawing or part number.





Eshine can also refer you to a Number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs:   AWG

UL Style:

Other end:

Assembly connector

Completer strip/Tin plate:

Semi Strip/Tin plate:



OEM orders are welcomed!
