General Specification

Model No.

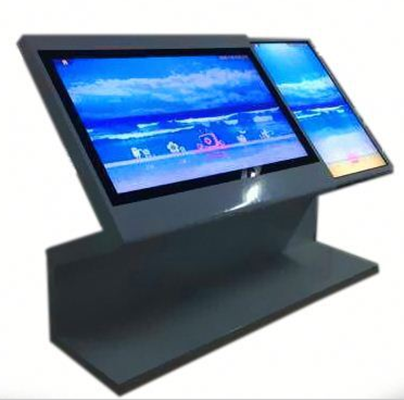

M4203D-  LCD monitor ip65 outdoor LCD enclosure

Material of shell

3mm Aluminium,1.5mm mild steel, 5mm temperglass, Industrial high level Podwer coating.

Certification

FCC,RoHS,CE

Interface

USB,HDMI,VGA,…..

Guarantee

1 year

Speaker

10Wx2

Storage Medium

Flash memory card(2gb to 36gb for the capacity)

Video formats

MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)

Audio formats

MP3

Photo formats

JPG,bmp

Audio output

Stereo L/R, 5Wx2, 8Ω

Storage Temp.

-7 to 65 Celsius degree

Normal Working Temp.

-5 to 65 Celsius degree

Language

the default is Chinese and English, others need to be confirmed

Power Supply

AC 110V - 240V, 50/60HZ

Specification of kiosk LCD display

Size of Screen

42 inch

Ratio

16:9

Display Area

930mm(W)x523mm(H)

Dot Pitch

0.4845mm(H)x 0.4845mm(W)

Max Resolution

1920x1080

Number of Colors

16.7m

Brightness

500cd/m2

Response Time

8s

Contrast

800:1

Viewing Angle

178°

Using Life

50000 hours

Accessories

AC power line

Remote Controller

Base

Warranty Card

Flash Memory Card

Security Keys

User Manual
