| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Voltage: | 380 v 50 hz |
| Brand Name: | SAN |
| Condition: | New |
| Weight: | 3800-7000KG |
| Dimension(L*W*H): | 6200*2600*1800 |
| Power(W): | 4.4-11 KW |
| Model Number: | SANGP-B |
| Place of Origin: | China (Mainland) |
| Processing Type: | Winding Machine |
| Product Type: | |

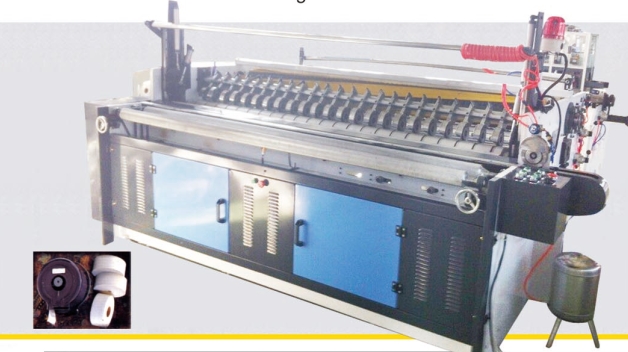

| Name: | Automatic jumbo roll slitting and rewinding machine |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:
Automatic Jumbo Roll Slitting Rewinder is used to slit and rewind toilet tissue,non-woven and air-laid paper.the machine cut and rewind single-layer paper roll into two,three and four layers with various widths for the production of napkins,tissues, facial or sanitary napkins. the machine features for stable operation, easy operation and good winding profiles, making it the ideal equipment for paper mills and textile factories.
2.Techincal parameters: Machine Model 1575 1880 2400 2600 3150 3500 Raw Material Width(mm) 1800 2100 2400 2500 3000 3500 Finished product diameter ≤1200mm Raw material diameter 1200mm Speed 260-300m/min Pneumatic System 3 HP air compressor Power 4.5-11KW Dimension 6200*2600*1800-6200*4000*1800mm Weight 3800-7000kg
