| Brand Name: | shengfeng |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Casting |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | F4 |
| Place of Origin: | China (Mainland) |
| Port Size: | DN50-DN600 |
| Media: | Water |
| Power: | Hydraulic |
| Structure: | Gate |
| color: | blue |
| Body material: | ductile iron |
| medium: | water |
Quick Details
Specifications
Product presentation:
the valve disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.Nonrising resilient seated gate valves solve the problem in general gate valve such as leakage,rusting etc.and saves installation space.It is used widely in tap water insudtry,sewage treament,shipping construction,petroleum,chemicals,food,pharmacy,textile,electric power,metallurgy and energy system's pipeline to adjustable and shut off fluids.
Performance apecification:
Working pressure:1.0-1.6mpa
Seal test: 1.1mpa 1.76mpa
Shell test: 1.5mpa 2.4mpa
Design standards: DIN3352
Flange standard: DIN2501
Structure length standard: DIN3202
Working temperature: NBR80
EPDM120
Materials of main parts:
| NO | Part | Material |
| 1 | Body | Ductile iron |
| 2 | Disc | Ductile iron pack with NBR |
| 3 | Bolt | CS SS |
| 4 | Gasket | EPDM NBR |
| 5 | Cover | Ductile iron |
| 6 | Stem | Stainless steel |
| 7 | O-ring | EPDM Silicone |
| 8 | Thrust bearing | Brass |
| 9 | Bolt | CS SS |
| 10 | Gland | Ductile iron |
| 11 | Dust proof gasket | EPDM NBR |
| 12 | Hand wheel | Ductile iron |

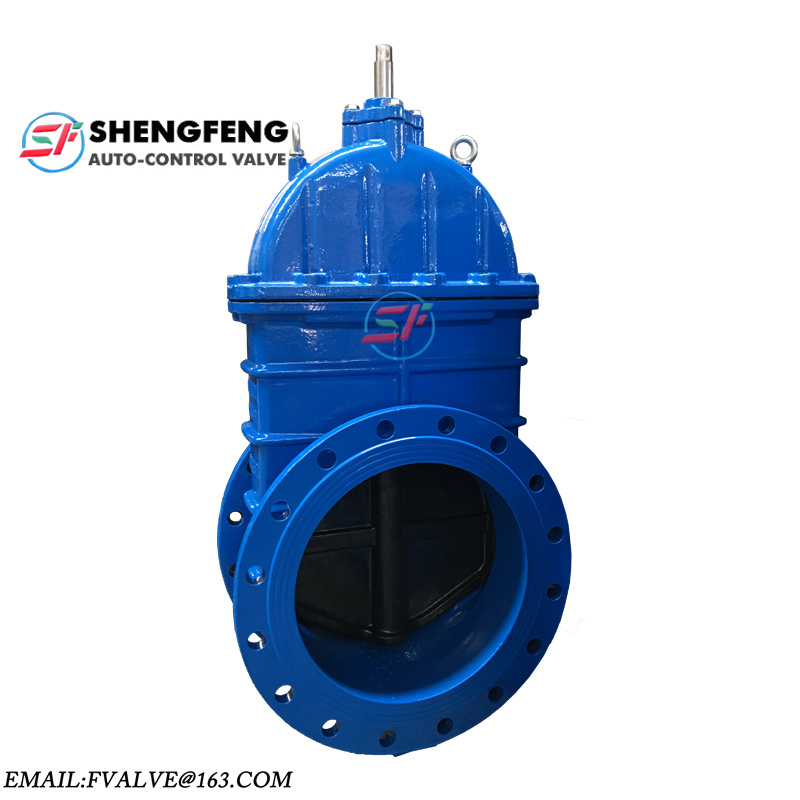

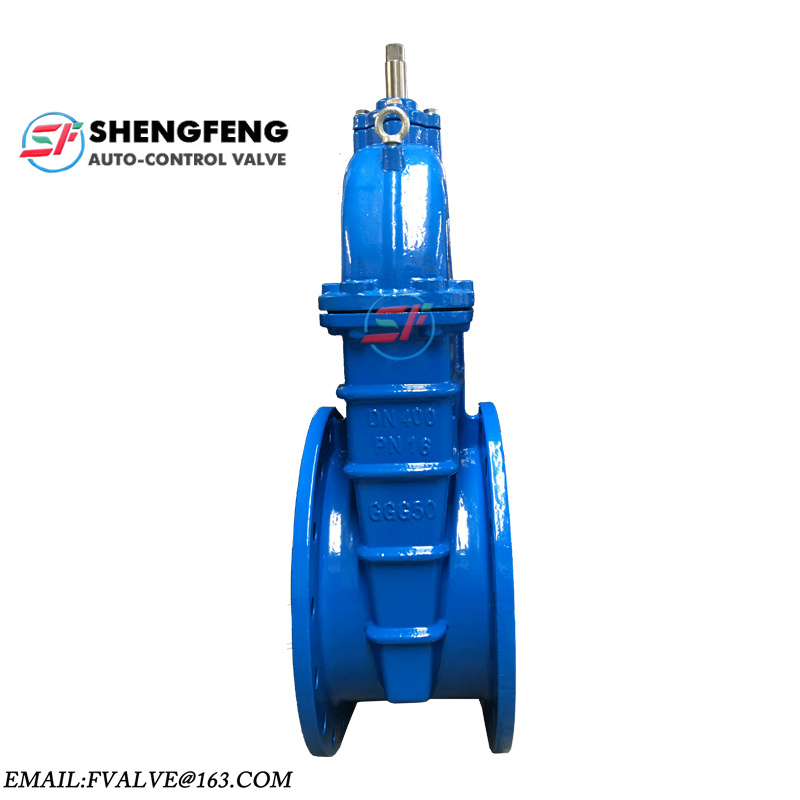

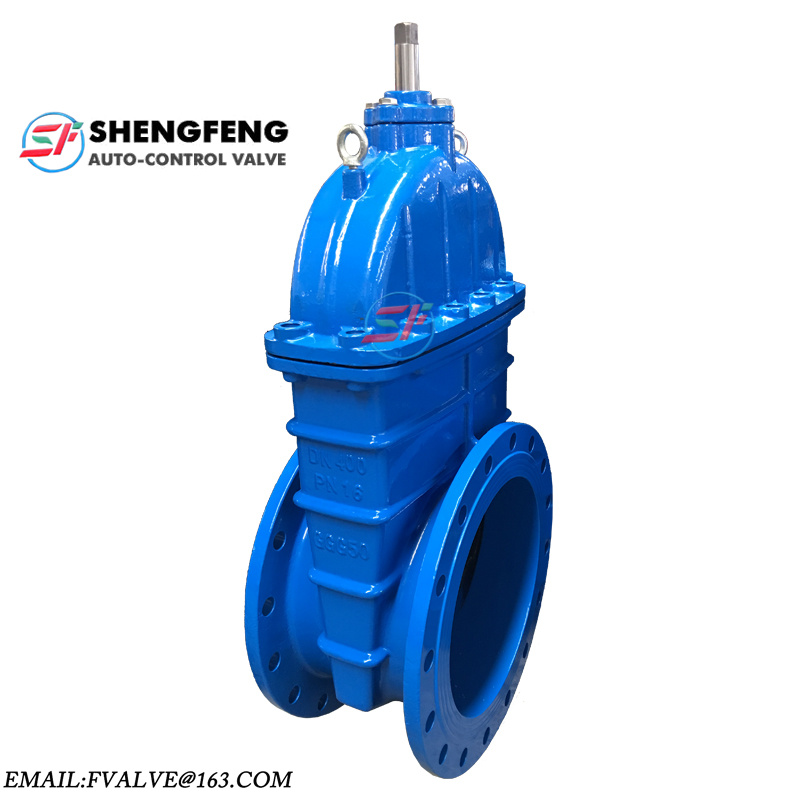

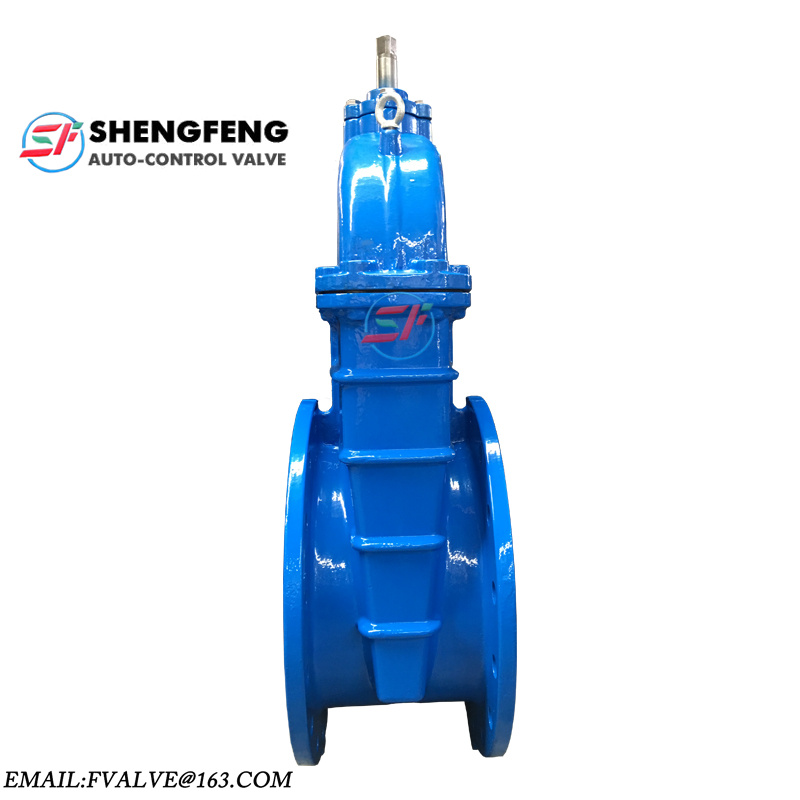

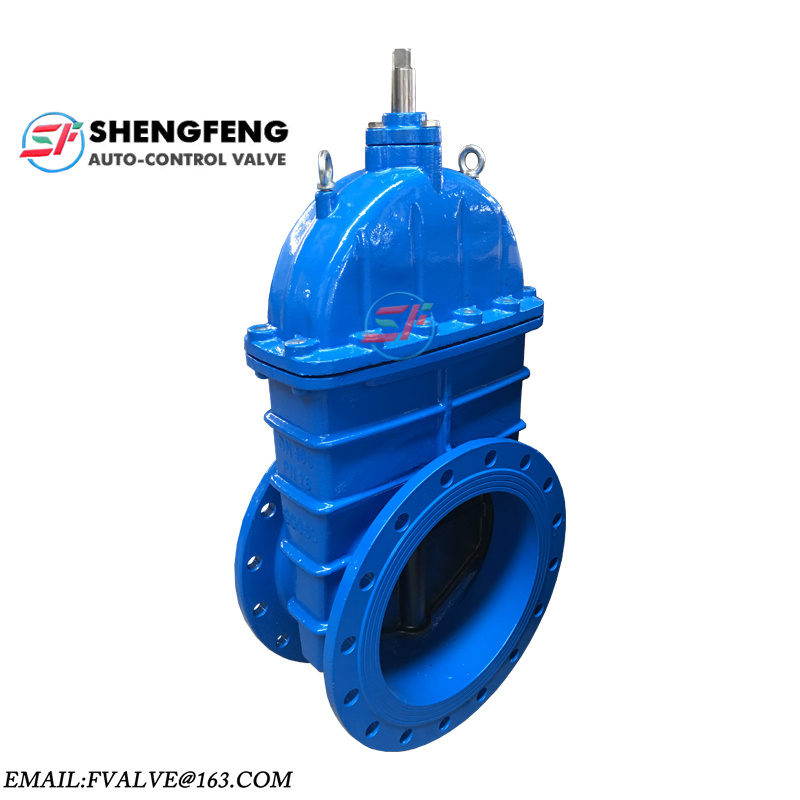

Product photo:
