Product Main

Quick Details

Type: Roller
Structure: Spherical
Outside Diameter: 130-2280 mm
Bore Size: 60-1000 mm
Brand Name: FBF SKF
Structure: spherical
Type: roller bearing
Place of Origin: China (Mainland)
Number of Row: Single Row
Seals Type: Seal or Open
Precision Rating: P0,P6,P5,P4,P2
Model Number: 29422E
Type:: Roller
Structure:: Thrust
Size:: 60 - 1000 mm
Precision Rating:: P5 P4 P2
Seals Type:: Open
Number of Row:: Single row
Precision bearing:: P0,P6,P5,P4,P2
Material:: chrome steel-stainless steel-carbon steel-plastic-ceramic

Specifications

FBF SKF thrust spherical roller bearing 29422E used for Motorcycle Engine equipment

FBF SKF thrust spherical roller bearing 29422E used for Motorcycle Engine

the roller of this type of bearing is Spherical shape, and the spherical raceway of the housing washer has self-aligned function. this type of bearing can support very big axial loads, meanwhile it can support certain radial loads. Oil lubrication is commonly used during work.Furthermore, this bearing has the self-aligning capability which is as good as spherical roller bearings.

this type of bearing is mainly used in hydroelectric generators, vertical motors, propeller axle of vessels, tower cranes, squeezing presses, etc.

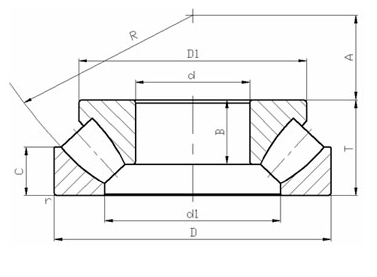

Principal dimensions Basic load ratings   Speed ratings Designation
Dynamic Static Limiting speed Reference speed
d D H C C0
mm kN R/min
190 380 115 2850 8000 950 1700 29438 E *
200 280 48 656 2650 1400 2200 29240 E
200 340 85 1860 5500 1000 1700 29340 E *
200 400 122 3200 9000 850 1600 29440 E *
220 300 48 690 3000 1300 2200 29244 E
220 360 85 2000 6300 1000 1700 29344 E *
220 420 122 3350 9650 850 1500 29444 E *
240 340 60 799 3450 1100 1800 29248
240 380 85 2040 6550 1000 1600 29348 E *
240 440 122 3400 10200 850 1500 29448 E *
260 360 60 817 3650 1100 1700 29252
260 420 95 2550 8300 850 1400 29352 E *
260 480 132 4050 12900 750 1300 29452 E *
280 380 60 863 4000 1000 1700 29256
280 440 95 2550 8650 850 1400 29356 E *
280 520 145 4900 15300 670 1200 29456 E *
300 420 73 1070 4800 900 1400 29260
300 480 109 3100 10600 750 1200 29360 E *
300 540 145 5000 16600 670 1200 29460 E *
320 440 73 1110 5100 850 1400 29264
320 500 109 3350 11200 750 1200 29364 E *
320 580 155 5700 19000 600 1100 29464 E *
340 460 73 1130 5400 850 1300 29268
340 540 122 2710 11000 600 1100 29368
340 620 170 6700 22400 560 1000 29468 E *
360 500 85 1460 6800 750 1200 29272
360 560 122 2760 11600 600 1100 29372
360 640 170 6200 21200 560 950 29472 EM *
380 520 85 1580 7650 700 1100 29276
380 600 132 3340 14000 530 1000 29376

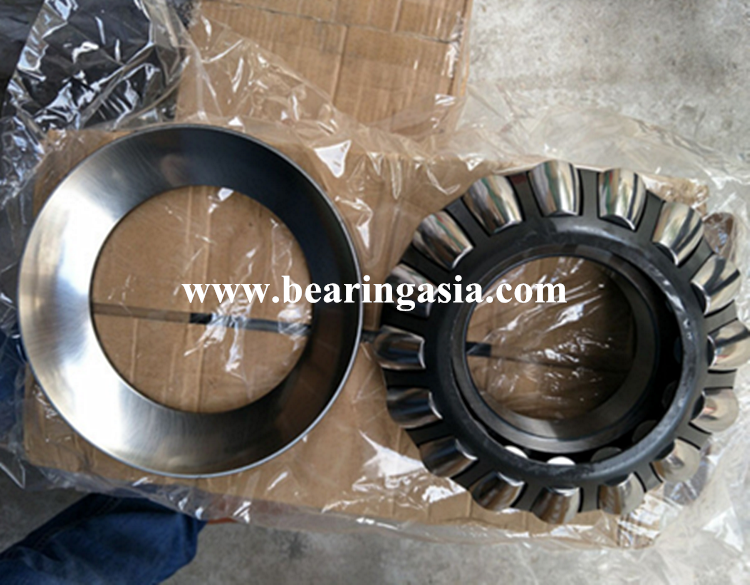

FBF SKF thrust spherical roller bearing 29422E used for Motorcycle Engine

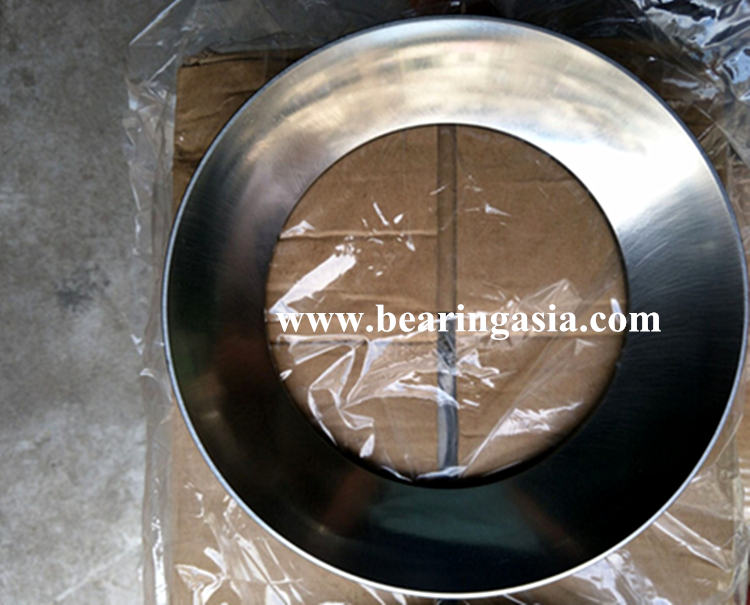

FBF SKF thrust spherical roller bearing 29422E used for Motorcycle Engine
