Timeproof protable household rapeseed screw conveyor





Product Description



this machine is A new type of agriculture, industrial machinery, conveying granular materials, Applicable to food, plastic bulk handling operations, all sorts of small Particle materials such as pipe layout can be used to level, tilt, vertical Conveying material, have to walk, the operation is simple and convenient, can Be single transportation task independently.

this machine is suitable for individual farmers, food profession and agricultural cooperatives. Also can Be used for farms, feed mills, sunflower seed, food factory, plastics factory Conveying makings of the occasion.  Could Transport wheat, soybean, corn, rice, sorghum, plastic, resin, rice, sunflower Seeds, melon seeds and other particle objects.

this machine is Suitable for the farm, dock, station, large grain loading, unloading, cover, Out of the warehouse, warehouse, pour the crib, and food processing, feed Processing and brewing industries in the production process of bulk and bulk Transport, bulk unloading mechanical operation.







Product Working



this machine is Mainly use the way of delivery of the save Labour when the province, transfer Material







Product Details

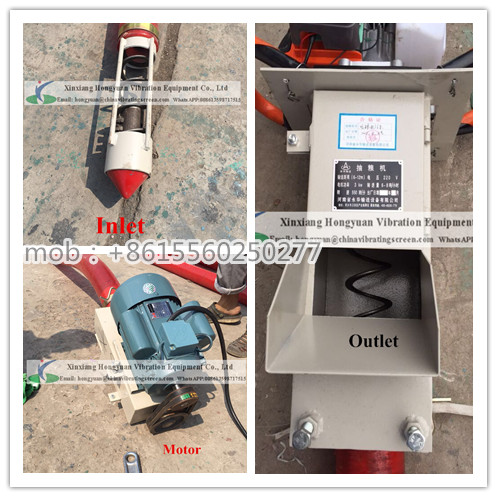

this machine is Roughly includes three parts: feeding inlet, outlet and motor.







Product Material



Soft Spiral is manganese steel.







Specification



	Length (Meters)	Pipe diameter	Loading Capacity(t/h)	Motor phase-power(kw)	Installation	Structure	Conveying height
XL-100-6	6	100mm	5-8	-220V-3kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-100-8	8	100mm	5-8	Single phase -220V-3kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-100-10	10	100mm	5-8	Single phase -220V-3kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-100-12	12	100mm	5-8	Single phase -220V-3kw	Vehicle mounted	Steel screw blade inside
XL-160-6	6	160mm	15-20	-220V-4kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-160-8	8	160mm	15-20	Three phase -	Vehicle mounted	Steel screw blade inside	3-4m
XL-160-10	10	160mm	15-20	Three phase -220V-4kw	Vehicle mounted	Steel screw blade inside	3-4m
XL-160-12	12	160mm	15-20	Three phase -220V-4kw	Vehicle mounted	Steel screw blade inside	3-4m



Packing



Packing Size:1200*1200*500mm

If container is too tight, we will use PE film for packing or pack it according to customers special request.







Working Notice







A. Check whether the power supply when The match is firm, reliable due and modes, such as abnormal immediately cut off The power and has no damage equipment, exception to rule out rear can normal Operation.



B. the equipment triangle has been Adjusted when delivery from factory, but after a period of time will appear Loose phenomenon, affect the discharge effect, to stop work at this moment, Will open on both sides of the plate, adjusting the motor to adjust the screw Bolt. Triangle in the event of wear serious, need to change is the Triangle.Idling on vibration is normal, immediate loading.



C. Appeared in the process of work such as discharging mouth jam, can open the front cover, check for foreign material Inside, can remove foreign bodies at this time.At the same time to check whether there is cloth feeding port, plastic sheeting and other entanglement Thoroughly remove, clear the inlet tube part of the food at the same time (about 1 meter or so), and then open the can.
