| Insulation Material: | PFA |
|---|---|
| Conductor Material: | Copper |
| Application: | Heating |
| Type: | Insulated |
| Brand Name: | Relico Wire&Cable |
| Conductor Type: | Stranded |
| Model Number: | AF-250 |
| Place of Origin: | China (Mainland) |
| Color: | White |
Quick Details
Specifications
Model Description

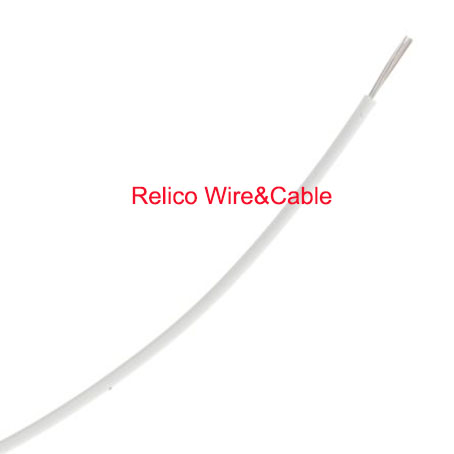

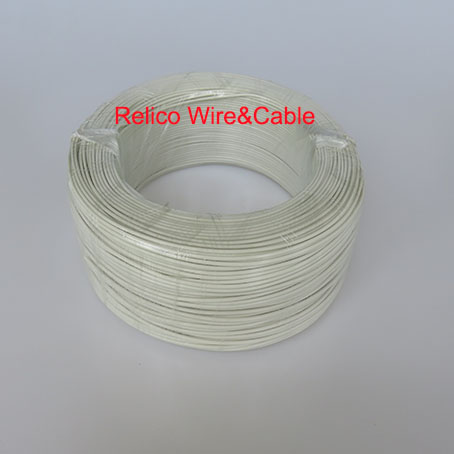

AF-250:Silver Plating Copper, PFA Insulated Lead Wire
AFKP-250:Silver Plating Copper, PFA Insulated Shielding Lead Wire
AFKPH-200:Copper, PTFE Tap Wrapped Insulated Shielding PFA Jacket Wire&Cable
Conductor Sizemm2 |
Conductor Construction Roots/Diametermm |
Insulation Diametermm |
Wire Diametermm |
Conductor Electric Resistance ≤Ω/km |
Weightkg/km |
0.05 |
7/0.10 |
0.20 |
0.70±0.08 |
398 |
1.19 |
0.08 |
7/0.12 |
0.25 |
0.80±0.08 |
206 |
1.62 |
0.12 |
7/0.15 |
0.25 |
0.95±0.08 |
128 |
2.53 |
0.2 |
7/0.20 |
0.26 |
1.14±0.05 |
83.5 |
3.83 |
0.35 |
19/0.16 |
0.26 |
1.32±0.05 |
49.5 |
5.78 |
0.5 |
19/0.18 |
0.26 |
1.42±0.05 |
40.1 |
7.0 |
0.6 |
19/0.20 |
0.26 |
1.52±0.05 |
30.2 |
8.43 |
0.75 |
19/0.23 |
0.275 |
1.70±0.05 |
22.7 |
10.5 |
1.0 |
19/0.26 |
0.25 |
1.80±0.05 |
19.0 |
12.5 |
1.2 |
19/0.28 |
0.33 |
2.06±0.08 |
15.3 |
16.1 |
1.5 |
19/0.32 |
0.325 |
2.25±0.08 |
11.7 |
19.5 |
2.0 |
19/0.37 |
0.305 |
2.41±0.08 |
8.78 |
24.5 |
2.5 |
37/0.30 |
0.34 |
2.78±0.10 |
6.86 |
32.3 |
4.0 |
37/0.37 |
0.395 |
3.38±0.10 |
4.51 |
46.9 |
6.0 |
37/0.45 |
0.465 |
4.08±0.10 |
3.05 |
68.2 |
