| Brand Name: | COLO |
|---|---|
| Coating: | Powder Coating |
| Substrate: | Aluminum |
| Type: | Coating Spray Gun |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 12 Months |
| Certification: | CE ISO |
| Weight: | 50KG |
| Dimension(L*W*H): | 69X56X52cm |
| Power(W): | 50w |
| Voltage: | 380V/220V |
| Model Number: | COLO--800D-L2 |
| Place of Origin: | China (Mainland) |
| Item: | Electrostatic Powder Coating Gun |
| Application: | Powder Coating |
| Model: | COLO-800D-L2 |
| Product: | Electrostatic Powder Coating Gun |
Quick Details
Specifications
Manual Electrostatic Powder Coating Spray Gun for Painting
Model: COLO-800D-L2
Excellent features:
1) most economical and popular type, sold to more than 90 countries
2) perfect coating, with low fault rate, marketing for 8 years
3) quick delivery time: 1-3 working days, for we have professonal manufacturing technology
4) Warranty time: 1 year, in warranty period we provide free replacements for any quality problem.

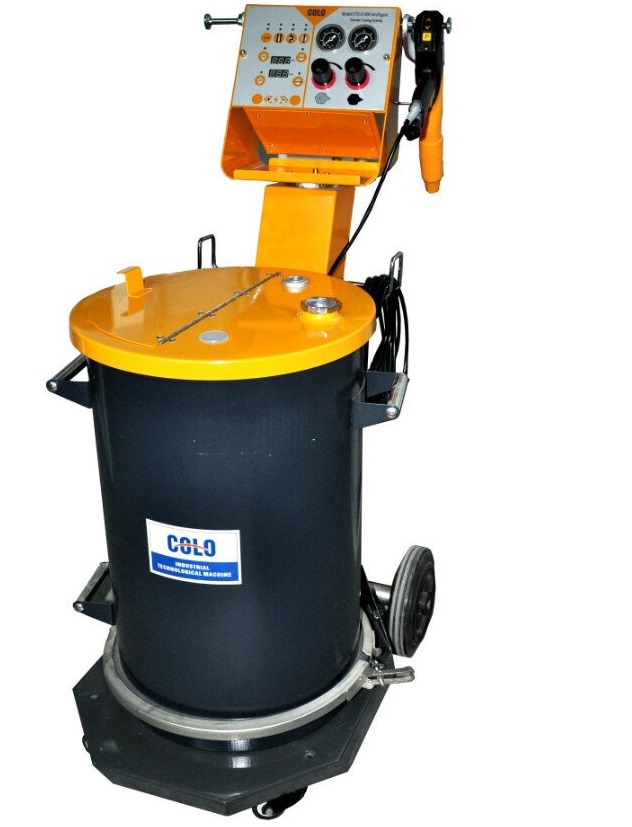

COLO-800D-L2-structure
1 control unit 2 Manual powder gun(COLO-06 gun match with this unit)
3 injector 4 Mobile frame with hand rail
5 Fluidized powder hopper 6 Powder filler flap
7 Swivel wheel 8 Filter unit
9 Gun holder 10 Shelf
11 Hose holder 12 Hose holder
13 Rubber wheel

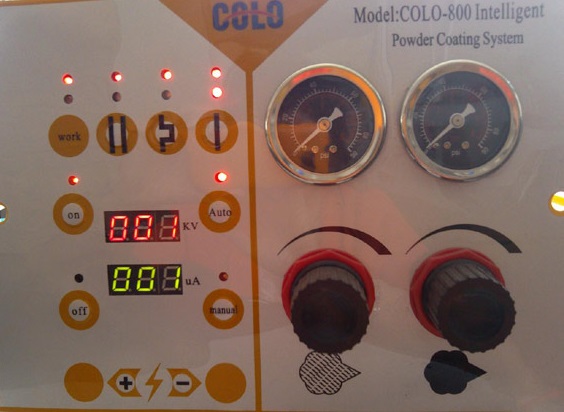

Function of COLO-800D Control Unit:
1.Can manually adjusting coating data when customer coat different kinds of work-pieces:
| Workpieces type | Output voltage | 1ST air | 2sec air | Painting distance |
| Flat Big Size | 80-100kv | 4-6kg/cm2 | 2-3kg/cm2 | 15-20cm |
| Corner,sides | 40-60kv | 2-3kg/cm2 | 0.5-1 kg/cm2 | 10-15cm |
| Repaint | 20-30kv | 2-3kg/cm2 | 0.5-1kg/cm2 | 15-20cm |
2.Also with 3 auto models which is factory set, when you coat corners or flat parts, or need re-coating, just press the 3 buttom
Flat model: coating flats parts.
Corner model: specially coating corners of workpiece
Recoat model: .Repeatly coating.
Specification of COLO-800D-L2 Powder Coating Spray Gun
Electrical Data
| MODEL | COLO-800D-L2 |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
Pneumatic data
| Maximum powder injection | 600g/min |
| Polarity | Negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 oC+50 oC |
More details, contact with us
