Brief Introduction:

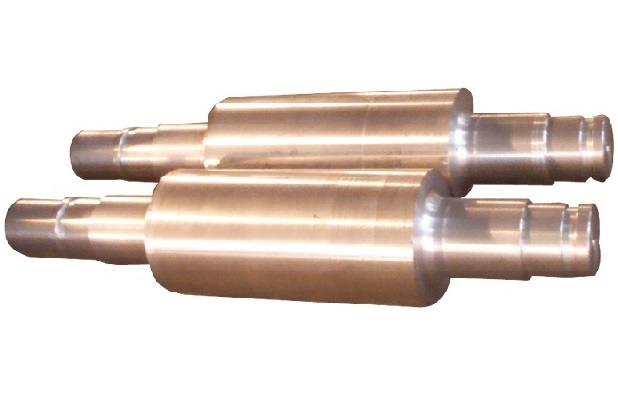

Alloy cast steel Rolls have less carbon content but variety of alloy elements are used to strengthen the matrix. The microstructure is primarily pearlitic with parts of cementite. Their properties include high tensile strength and toughness. after the tailored heat treatment process, the micro structure condition improves thereby complimenting good mechanical properties like good thermal cracking resistance, fatigue resistance and wear resistance.

Application:
?Medium and small blooming rolling.
?Section roughing rolling.
?Section strip wire rod rough and intermediate rolling.
?Billets rough rolling mill and rail beams

Material Spec:
Alloy cast steel RollsACB 1ACB 2 Composition (%Wt)
Carbon (C)0.50-0.900.60-1.20
Silicon (Si)0.50,MAX0.50,MAX
Manganese (Mn)0.60-0.900.60-0.90
Nickel (Ni)0.50,MAX0.50-0.90
Chromium (Cr)0.60-1.000.80-1.20
Molybdenum (Mo)0.20-0.400.20-0.50
Mechanical Properties
Hardness (HSC)30-4040-45
Tensile Strength (N/mm2)600 - 750
