| Output Voltage: | 110V-480V |
|---|---|
| Input Voltage: | 220V |
| Output Type: | Dual |
| Output Power: | 201 - 300W |
| Brand Name: | RADIN |
| Output Current: | 6A-63A |
| Output Frequency: | 50-60Hz |
| Model Number: | RDQ3NX |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

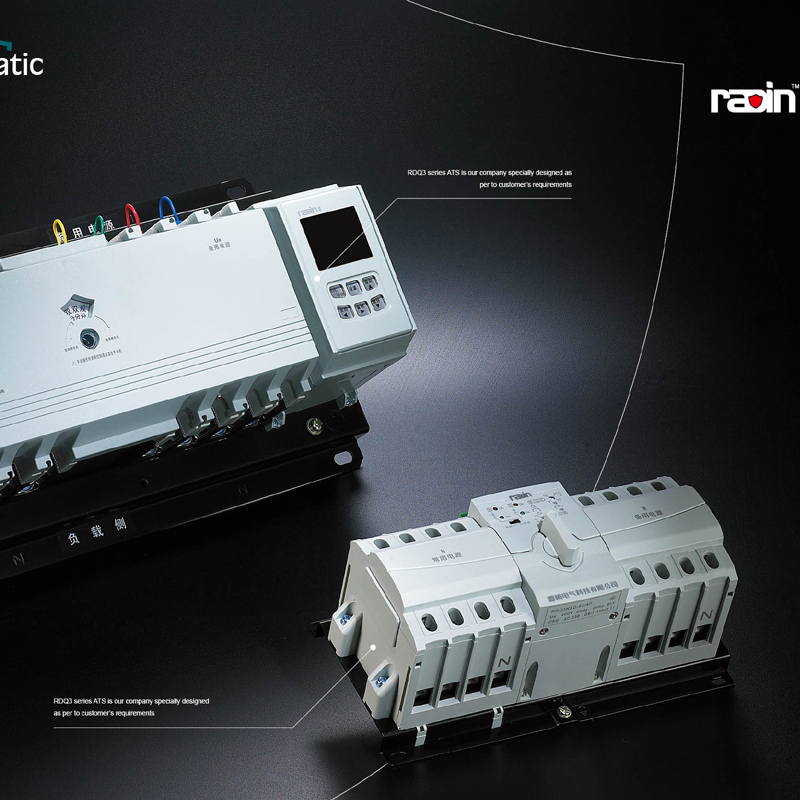

ATS Automatic Work with Eaton ATS Controller Auto Transfer Switch
Radin Electric provides ATS design, engineering, and full after sales support for a wide range of automatic transfer switch applications. We offer onsite electrical audits to assist in determining the correct product and installation to meet your exact needs and requirements.
RDQ3NX-A/B/C/D series ATS is our company introduced to the market on 2009, effectively solved the problems of MCB type ATS 's insufficient functions, poor reliability, un-convenient replacement etc., this product have three patent certificates ( Invention patent, Utility models patent, Appearance patent), C/D series is a new type introduced to market on 2010, this product have complete functions, concept innovation, is a unique product among the similar products.
Product Structure
RDQ3-63-A/B/C/D series ATS comprised with two MCB and accessories, mechanical interlock system, intelligent controller etc. Product have A, B,C,D four type control construction, A type is basic type ( Only provide with auto change auto recovery, phase missing protect, auto/manual control), B type is intelligent type( including the A type functions and have Generator start, fire linkage, time delay functions), C and D type is improved type, increased three phase voltage monitoring function on A and B type. this ATS series circuit breaker keeps the original breaker's overload and short circuit protection function.
Radin Electric provides ATS design, engineering, and full after sales support for a wide range of automatic transfer switch applications. We offer onsite electrical audits to assist in determining the correct product and installation to meet your exact needs and requirements.
Technical Specification
about ATS| Model | RDQ3NX-A/B/C/D |
| Working Voltage | AC150-265V 50/60Hz |
| Operation Mode | Auto and Manual |
| Transfer Mode | Auto Transfer with Auto Recovery |
| Transfer time delay | 0.2s Fixed / 0~30s adjustable |
| Rated Current | 6A to 63A 3P and 4P |
RDQ3NX-A/B/C/D series ATS is our company introduced to the market on 2009, effectively solved the problems of MCB type ATS 's insufficient functions, poor reliability, un-convenient replacement etc., this product have three patent certificates ( Invention patent, Utility models patent, Appearance patent), C/D series is a new type introduced to market on 2010, this product have complete functions, concept innovation, is a unique product among the similar products.
Product Structure
RDQ3-63-A/B/C/D series ATS comprised with two MCB and accessories, mechanical interlock system, intelligent controller etc. Product have A, B,C,D four type control construction, A type is basic type ( Only provide with auto change auto recovery, phase missing protect, auto/manual control), B type is intelligent type( including the A type functions and have Generator start, fire linkage, time delay functions), C and D type is improved type, increased three phase voltage monitoring function on A and B type. this ATS series circuit breaker keeps the original breaker's overload and short circuit protection function.
RDQ3NX Series Advantages:
1. Product withModularized design, executive unit, transmission mechanism,Control circuit completely independent, easy for replacement.
2. Mechanical transmission device adoptGear transmission, completely eliminate the possibility of closing at same time;
3. Compact appearance, it is one of theSmallestProduct on the market;
4. the control circuit layout adopt working power and sampling power separate withSingle chip control, toOvercome the electromagnetic interferencefrom the hardware construction;
5. Working power voltage range: AC200-400V;
6. Less power consumption, max. Peak power loss4.8W, only 20%of other similar products;
7. Product have complete functions, withGenerator start, fire linkage, on delay functions etc.;
8.Modularized design, good components interchange performance,Easy installation;
9. Can useVarious executive circuit breaker;
1. Product withModularized design, executive unit, transmission mechanism,Control circuit completely independent, easy for replacement.
2. Mechanical transmission device adoptGear transmission, completely eliminate the possibility of closing at same time;
3. Compact appearance, it is one of theSmallestProduct on the market;
4. the control circuit layout adopt working power and sampling power separate withSingle chip control, toOvercome the electromagnetic interferencefrom the hardware construction;
5. Working power voltage range: AC200-400V;
6. Less power consumption, max. Peak power loss4.8W, only 20%of other similar products;
7. Product have complete functions, withGenerator start, fire linkage, on delay functions etc.;
8.Modularized design, good components interchange performance,Easy installation;
9. Can useVarious executive circuit breaker;
Working Conditions
Ambient Temperature
Max. +60oC
Min. -20oC
24h average not more than +35oC
Altitude: Not more than 2000m
Atmospheric conditions: humidity not more than 50% at max.+40oC, higher humidity is allowed at lower temperature, at most wet month, the average max humidity is 90% at the average min temperature +25oC, and have considered the condensation on the product surface due to temperature variation.
Dlivery Terms
Shipment & Express & Air express
Ambient Temperature
Max. +60oC
Min. -20oC
24h average not more than +35oC
Altitude: Not more than 2000m
Atmospheric conditions: humidity not more than 50% at max.+40oC, higher humidity is allowed at lower temperature, at most wet month, the average max humidity is 90% at the average min temperature +25oC, and have considered the condensation on the product surface due to temperature variation.
Dlivery Terms
Shipment & Express & Air express
FAQ:
1. What's the warranty term?
24 Monthes.
2.how long does it take to deliver my goods?
Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days.
3. Do you offer sample?
Yes, we offer sample order for customer to test the goods.
4. What kinds of payment terms do you accept?
We offer kinds of payment ways foe customer to chose from. T/T,L/C,Aliexpress,Western union etc.
5. What if there's quality peoblem?
We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.
We are sure any of your questions will get our prompt reply, just leave the message
1. What's the warranty term?
24 Monthes.
2.how long does it take to deliver my goods?
Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days.
3. Do you offer sample?
Yes, we offer sample order for customer to test the goods.
4. What kinds of payment terms do you accept?
We offer kinds of payment ways foe customer to chose from. T/T,L/C,Aliexpress,Western union etc.
5. What if there's quality peoblem?
We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.
We are sure any of your questions will get our prompt reply, just leave the message
