Product Main

Quick Details

Brand Name: SINIWO
Color: Customized
Compatible Brand: Acceptable
frequency: 300 ~ 3400 Hz
Product name: Telephone receiver
Model Number: A05
Place of Origin: China (Mainland)
Material: PC /ABS
Color: Customized
Level of protection: IP65
Vandal proof: yes
Certificate: CE, ISO9001
Application: Mobile phone handset
Warranty: 1 year
Style: K-style
Weight: 0.3kg
Cord: coil cord /armored cord

Specifications

1.XiangLong Communication Industry offers a wide variety of high-quality, vandal resistant handsets. All handsets are constructed of durable ABS/PC plastic combined with a high strength stainless cord with internal steel lanyard or coiled cord.



2.most handsets found in this section are designed based on the traditional G-Style shape but we offer K-style handsets as well. Our G-Style handsets are available in Black (standard), Red or Yellow.



3.Our G Style handsets are available with Carbon, Electret or Dynamic microphones and the receivers are available with or without a varistor (Non-varistor is standard). Available armored cord lengths are 32" (standard), 18" and 54", coiled cord lengthens are 4'(standard),15' and 25',any cord length can be produced on custom orders which meet our MOQ.



4.We also offer extended wires per our customer's requirements without any minimum order. the standard wire terminal is Y-spade connectors and we also offer 4-pin modular and 3.5mm TRS audio jacks. Many other terminals and connectors can be added upon request.

5.Magnetic handsets are also available which will include a magnet in the receiver area that will interact with a reed switch to bring the telephone equipment on and off hook, as an alternative to using lever and microswitch-based hookswitches.



6.Our G-Style handsets can be produced in virtually any color, made to any cord length, wire length, equipped with just about any microphone and receiver element, and made with virtually any type of terminals or connectors. Please  contact us  with questions or to request a quote for any handset combination which you do not see listed below.



7.Pls also check below chart for more information:



Material

Vandal Resistence PC

ABS757

Weather Resistence ABS PW-978B

Carbon-Loaded ABS

Carbon Fiber material

or specified

Cord Armoured cord and  Coiled cord available
Cord     Length             Customized
Receiver

Non-Varistor(Standard)

with varistor(Available)

Microphone

Carbon Transmitter

Electret Microphone

Dynamic 150 Ohms Microphone

or specified

Connector

XH Plug

Y spade lugs

4-pin modular

Single audio jack

Two way radio audio jack

USB

Binder Aviation Plug

or specified

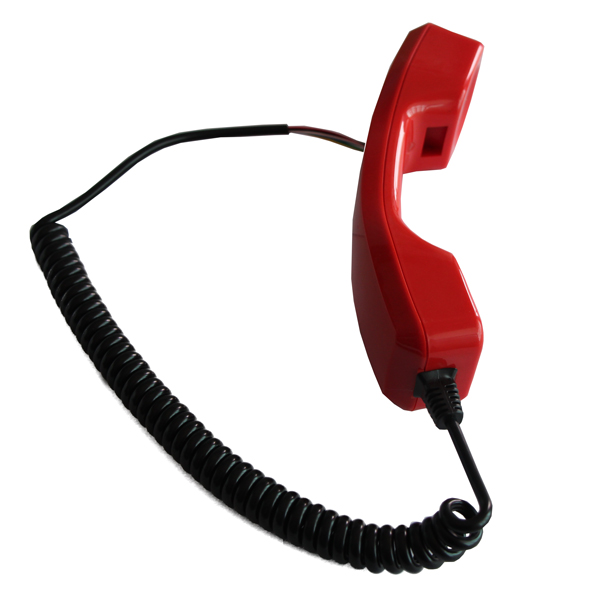

vandal proof rugged android mobile phone audio jack handset
