Product Main

Quick Details

Pressure:	Low Pressure
Standard or Nonstandard:	Standard
Power:	Electric
Structure:	Diaphragm Pump
Brand Name:	ME
Application:	Metering
Fuel:
Usage:	Air Pump
Theory:	Vacuum Pump
Model Number:	WP15
Place of Origin:	China (Mainland)

Specifications

Appliation: blood pressure monitor,air pressure massage,patient monitor
Specifications:
Model No.:WP15

Rated Voltage	DC3.0V	DC6.0V	DC12.0V	DC24.0V
Rated Current	≤800mA	≤430mA	≤230mA	≤130mA
Air Flow	≥1.5 LPM	≥1.5 LPM	≥1.5 LPM	≥1.5 LPM
Max Air Pressure	≥450mmHg	≥450mmHg	≥450mmHg	≥450mmHg
Leakage	≤10mmHg/Min	≤10mmHg/Min	≤10mmHg/Min	≤10mmHg/Min
Inflation Time	≤10S(500CC Container)	≤10S(500CC Container)	≤10S(500CC Container)	≤10S(500CC Container)
Noise	≤55dB	≤55dB	≤55dB	≤55dB
Life Test	400H	400H	400H	400H

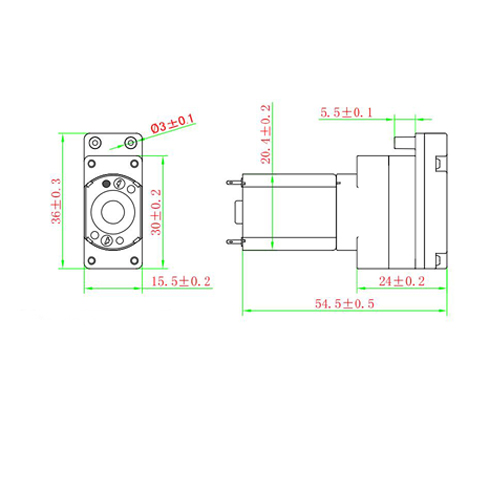

Product Size:
