the device and its measurement method

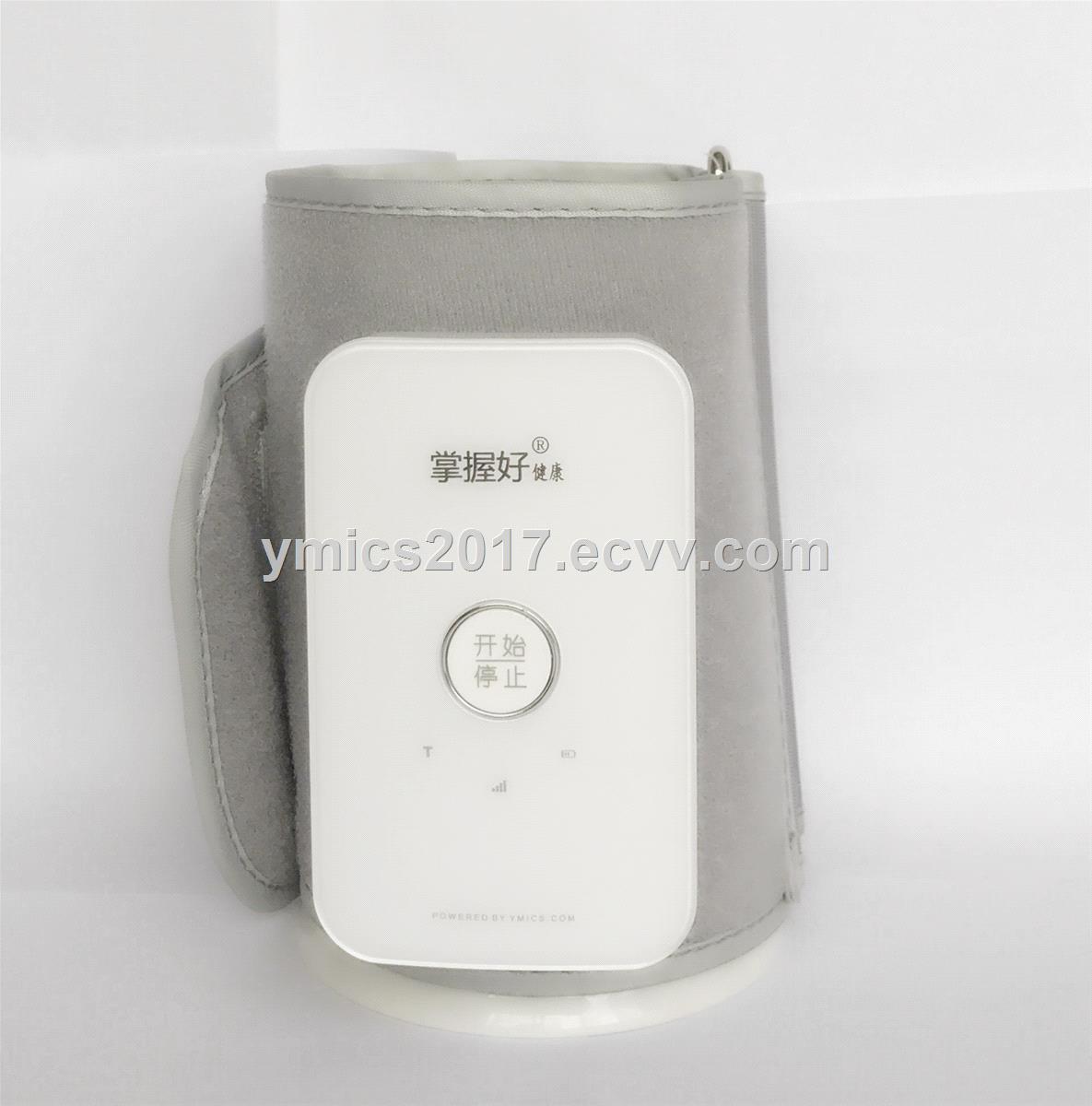

Telemetric home blood pressure measurement involves the patient measuring their blood pressure 80 times in 24 hours. We suggest to do a 24 hours monitoring once a week. The YMBPA23 --24 hours wearable GSM blood pressure monitor automatically sends measurements to the Hypertension Management Platform, which has proven its worth over many years of surgery use. The measurements can be transferred from the cloud to the social communication APP (such as whatsapp, facebook, kik,wechat and so on) . The YMBPA23 reduces the number of patient visits required, reduces the workload for the physician and his or her assistants and saves time for the patient. Moreover the plenty of measurements can help doctor find the highest spot of the blood pressure in a day and the trends of the blood pressure of the patient. So they can give better advice for the patient about how to manage their blood pressure well.

the product benefits

Maximum measurement accuracy (CE Approval)

Safe and simple to operate

Measurement data is automatically transferred by the integrated GSM module

Automatic status reports save time and smooth the workflow

the clinical benefits

Faster, more effective blood pressure control

Long-term improvement in therapeutic effect

Improved patient compliance and sense of responsibility

Treatment can be adjusted with minimum effort on the part of the physician, medical assistants and patient

Device data

Size (LxWxH) and weight: 96 x 58 x 23 mm, 216 g

Measurement method: Oscillometric

Validation: ISO13485, CE

Measurement precision:

Blood pressure: ± 3 mmHg

Pulse: ±5 BPM

Pressure measurement range:

Systolic 60-255 mmHg

Diastolic 30-195 mmHg

Pulse measurement range: 40-170 BPM (beats per minute)

Frequency bands: GSM900/1800 MHZ

Quad Band GSM:  900 and 1800MHz, GSM, GPRS, EDGE, 3G

Memory capacity: 90 measurements

Power supply: a DC 3.7V 1400mAh Li-ion polymer battery

Interfaces: USB Charger; GSM module (built in)

Regulatory standards: ISO/IEC 17025, EN609501:2006+A11:2009+A1:2010+A12:2011, EN301489-1 V1.9.2, EN301489-7 V1.3.1, EN301511 V9.0.2, R&TTE(99/5/EC), ROHS(2011/65/EU)

Accessories

user guide

USB Charger
