| Type: | TFT |
|---|---|
| Brand Name: | SHARP |
| Interface Type: | Parallel RGB (1 ch, 6-bit) , 50 pins , FPC |
| Resolution: | 240(RGB)*320 (QVGA) |
| application: | industrial |
| Model Number: | LQ035Q7DB05 |
| Place of Origin: | Japan |
| Luminance: | 160 cd/m2 (Typ.) |
| Contrast Ratio: | 85:1 (Typ.) (TM) 15:1 (Typ.) (RF) |
| Operating Mode: | TN, Normally White, Transflective |
| Active Area: | 53.64(W)*71.52(H) mm |
| Light Source: | 6S1P WLED , 10K hours , No Driver |
Quick Details
Specifications

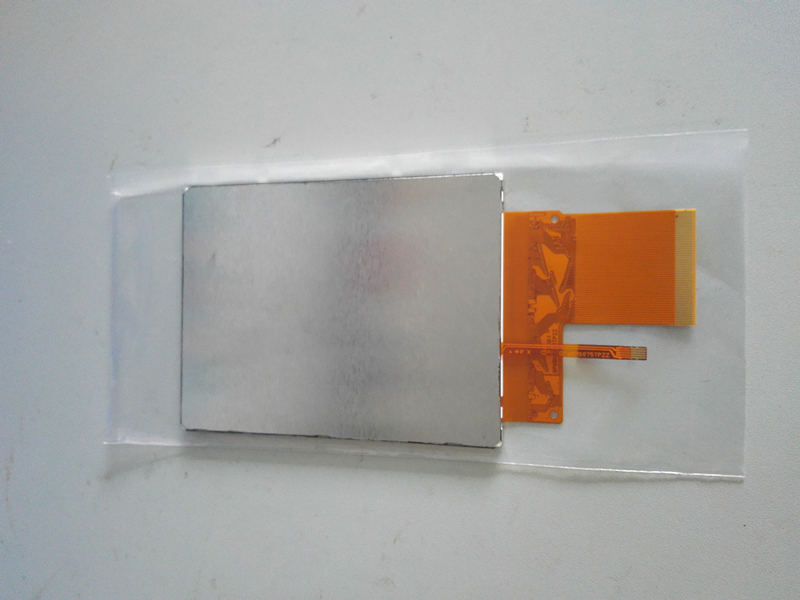

Sharp 3.5 inch LCD display LQ035Q7DB05 LCD
Product Description
LQ035Q7DB05 SPECIFICATION
| Panel Brand | Sharp | Panel Model | LQ035Q7DB05 |
| Panel Size | 3.5 inch | Panel Type | A-Si TFT-LCD, LCM |
| Resolution | 240(RGB)×320 (QVGA) | Pixel Format | RGB Vertical Stripe |
| Display Area | 53.64(H)×71.52(V) mm | Luminance | 225 CD/m2 (Typ.) |
| Bezel Area | 57.4(H)×75.2(V) mm | Outline | 65(H)×85(V) ×3.7(D) mm |
| Treatment | Hard coating (3H) | Operating Mode | TN, Normally White, Transflective |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) | Contrast Ratio | 85:1 (Typ.) (TM) 15:1 (Typ.) (RF) |
| Good View at | 6 o'clock | Response | 30/50 (Typ.)(Tr/Td) |
| Interface Type | Parallel RGB (1 ch, 6-bit), 50 pins, FPC |
Light Source | 6S1P WLED, 10K hours, No Driver |
| Support Color | 262K | Touchscreen | without |
| Weight | 40.0g (Typ.) | ||
| Power Supply | 5.0/3.3/15.0/-10V (Typ.)(VSHA/VSHD/VDD/VEE) | ||
| Environment | Operating Temperature: -10 ~ 60 °C; Storage Temperature: -25 ~ 70 °C | ||
