| Type: | TFT |
|---|---|
| Brand Name: | Toppoly |
| Interface Type: | 39 pins CPU , FPC |
| Resolution: | 240(RGB)*320 [QVGA] |
| application: | industrial |
| Model Number: | TD022SREC6 |
| Place of Origin: | Japan |
| Diagonal Size: | 2.2 inch |
| Type: | LTPS TFT-LCD, LCM |
| Support Color: | 65K 50% (CIE1931) |
| Configuration: | RGB Vertical Stripe |
| RGB Vertical Stripe: | 195 cd/m2 (Typ.) |
| Active Area: | 33.84(H)*45.12(V) mm |
| Light Source: | WLED [4S1P] |
Quick Details
Specifications

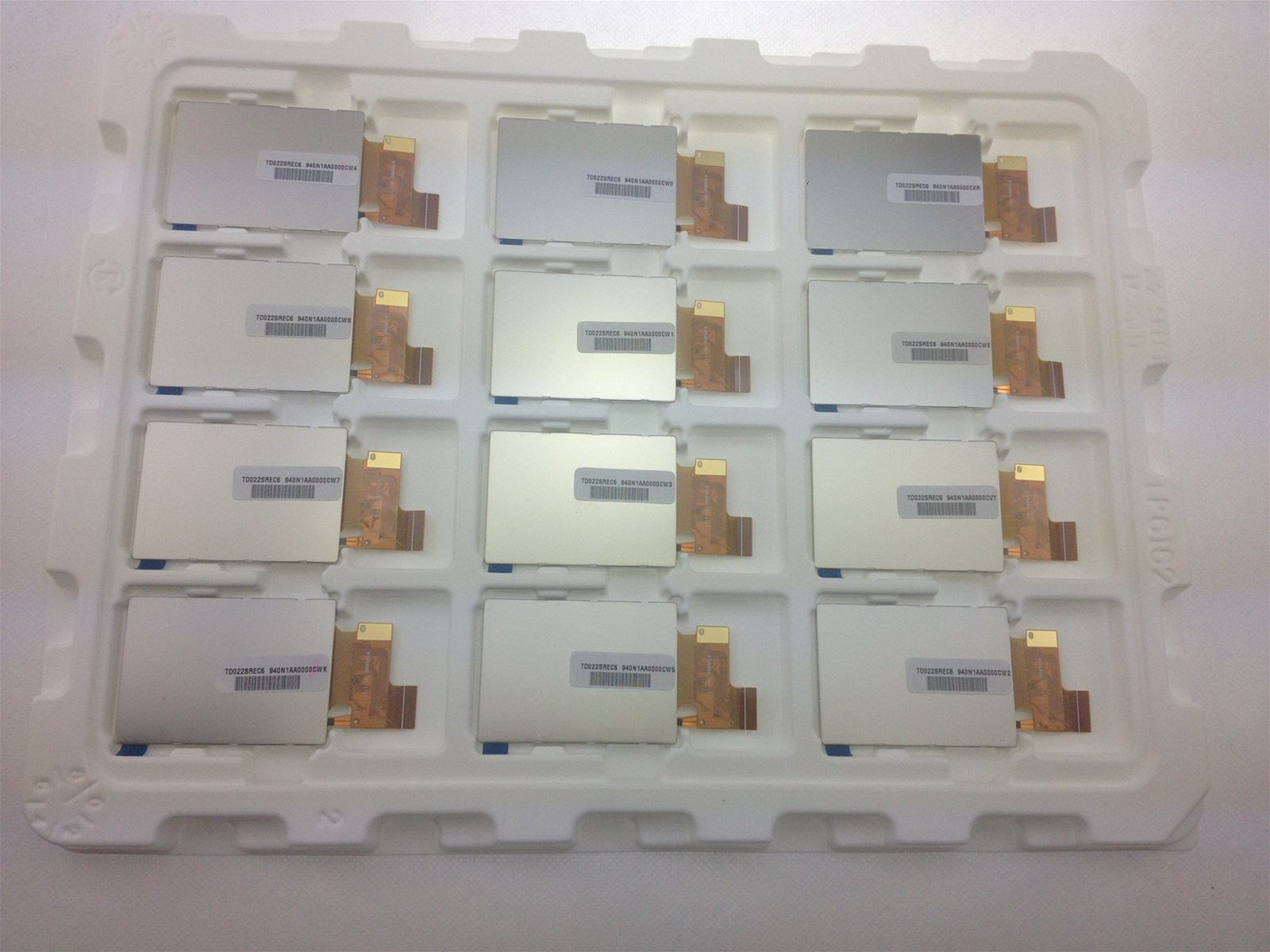

2.2 inch LCD display for TOPPOLY TD022SREC6 LCD
Product Description
TD022SREC6 SPECIFICATION
| Panel Brand | TOPPOLY | Panel Model | TD022SREC6 |
| Panel Size | 2.2 inch | Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 240(RGB)×320 [QVGA] | Pixel Format | RGB Vertical Stripe |
| Display Area | 33.84(H)×45.12(V) mm | Luminance | 195 CD/m2 (Typ.) |
| Bezel Area | / | Outline | 40.6(H)×56.6(V) mm |
| Treatment |
|
Operating Mode | TN, Normally White, Transflective |
| Viewing Angle | 55/45/45/60 (Typ.)(CR≥10) | Contrast Ratio |
|
| Good View at | / | Response | 14 (Typ.)(Tr+Td) |
| Interface Type | 39 pins CPU, FPC |
Light Source | WLED [4S1P] |
| Support Color | 65K 50% (CIE1931) | Touchscreen | without |
| Weight | / | ||
| Power Supply | 2.8V (Typ.)(DVDD) | ||
| Environment | / | ||
