| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 years |
| Certification: | ISO9001 |
| Brand Name: | ZY |
| Condition: | New |
| Weight: | 5 tons |
| Dimension(L*W*H): | 800*140*150cm |
| Voltage: | 380v |
| Power(W): | 8000 |
| Model Number: | ZY |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 70 sets/month |
| Use: | Roof |
| Tile Type: | Colored Steel |
| Type: | Tile Forming Machine |
| chain:1": | Ridging Cap Cold Forming Machine |
| color:blue or as per your requirements: | Ridge Caps Roof Making Machine |
| Thickness of the plate:0.3-0.6mm: | Ridging Cap Cold Forming Machine |
| PLC logo:Mistubishi: | Ridge Caps Roof Making Machine |
| cutting plate material:Cr12: | Roofing Ridge Cap Sheet COld Roll Forming Machine |
| HS Code:84552210: | Hydraulic Aluminium Ridge Caps Roof Making Machinery |
| Roller material:Cr12: | Hydraulic Aluminium Ridge Caps Roof Making Machines |
| Hydraulic pressure:10-12Mpa: | Metal Ridge Sheet Forming Machine |
| Control system:PLC delta inverter: | Metal Ridge Cap Cold Forming Machine |
| Material shaft:45# with heat treatment: | Metal Ridge Cap Making Machine |
Quick Details
Specifications

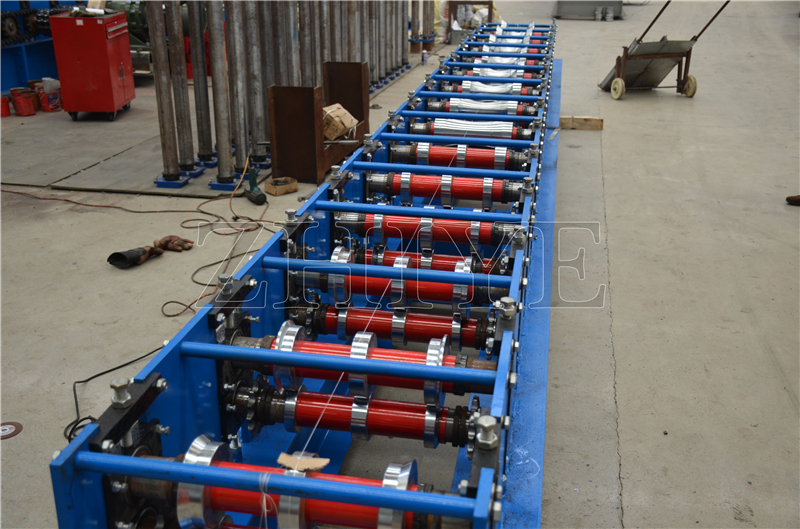

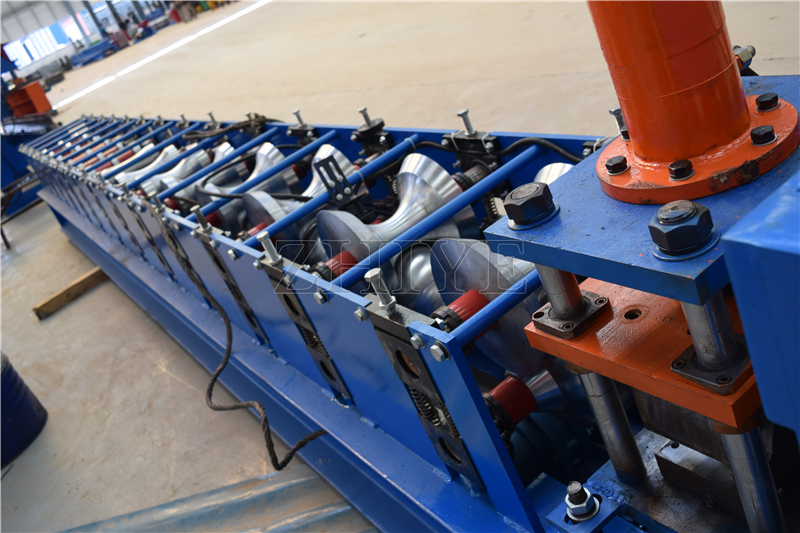

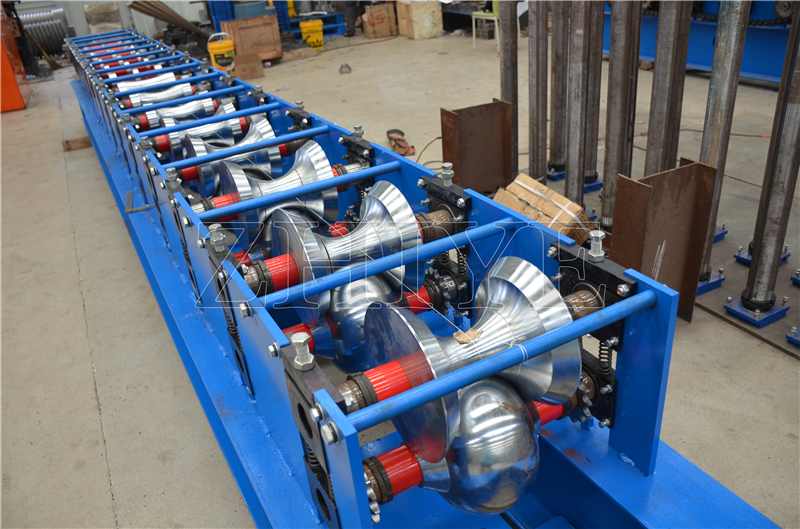

Ridging Cap Cold Forming Machine
1. Ground-level land
2. 5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
Ridging Cap Cold Forming Machine
Number Items Unit\Type RF-RC
1 Steel Thickness mm 0.5-0.6
2 Forming Speed m/min 8-12
3 Roller stands stand 16
4 Roller Material 45# steel, coated with chrome
5 Main Motor Power Kw 7.5
6 Hydraulic cutting Power Kw 4
7 Hydraulic pressure Mpa 10-12
8 Power Supply 380V, 50Hz, 3 phase
9 Tolerance mm 1.5
10 Material of cutting Cr12
11 Control system PLC with touch screen
12 MachinenetWeight T 8
Number |
Items | Unit\Type | RF-RC |
| 1 | Steel Thickness | mm | 0.5-0.6 |
| 2 | Forming Speed | m/min | 8-12 |
| 3 | Roller stands | stand | 16 |
| 4 | Roller Material | 45# steel, coated with chrome | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 10-12 |
| 8 | Power Supply | 380V, 50HZ,3 phase | |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting | Cr12 | |
| 11 | Control system | PLC with touch screen | |
| 12 | MachinenetWeight | T | 8 |
