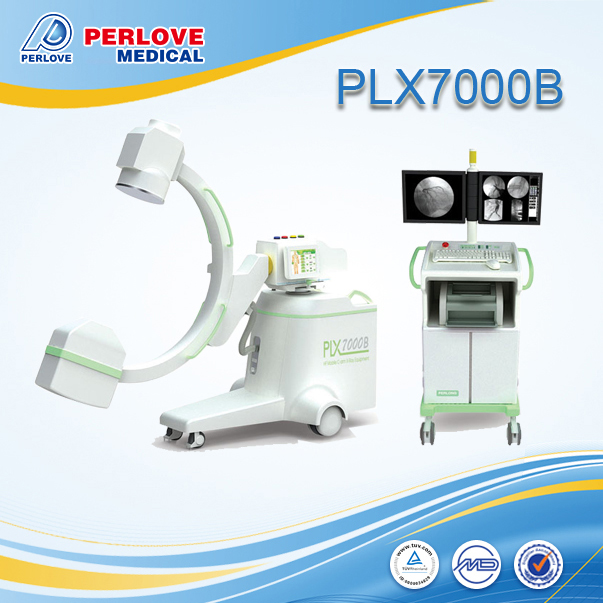

Worldwide installation C arm equipment PLX7000B for peripheral angiography



 Usage  of 6.0KW diagnostic Mobile c arm X-ray machine PLX7000B

 6.0KW diagnostic Mobile c arm  X-ray machine PLX7000B   is wildly used in Department of Orthopedics, Department of General Surgery, Orthopedics, Urology Surgery, Spine Surgery, Abdominal Surgery, Department of Pain Treatment, Cardiology, Gastroenterology, Gynecology, Operating Room, etc.









Technical parameter  of 6.0KW diagnostic Mobile c arm X-ray machine PLX7000B





High frequency inverter power supply	Power output:6.0kW    Inverter Frequency:60 kHz
Automatic &Manual Continuous Fluoroscopy	Tube voltage:40kV~125kV     adjust continuously
	Tube current:0.3mA~4mA      adjust continuously
Automatic &Manual Enhanced Fluoroscopy	Tube voltage:40kV~125kV     adjust continuously
	Tube current:0.3mA~8mA      adjust continuously
DSI Digital Spotfilm Imaging	Optional 1-5 pictures
Photography tube voltage tube current	40kV~125kV   160mA
X-ray tube special for high frequency	Rotary anode focus 0.3/0.6 mm
	Anode thermal capacity:212kJ



Features   of 6.0KW diagnostic Mobile c arm X-ray machine PLX7000B







1.High-power, micro-focus and high-frequency generator optimize digital images.



2.Intelligent control of exposure makes low dose.



3.Many operating modes meet various clinical needs.



4.Muti-leaf and vertical light control reduces soft X-ray and the skin dose effectively.



5.Imported well-known image intensifier and full-digital CCD camera provide high-quality and high-resolution images.



6.Dual high-resolution LCD monitors assure image quality.



7.the powerful digital graphic workstation supports DICOM 3.0, the registration of worklist and manual registration.

8. Workstation has the function of high-capacity digital storage. Fluoroscopy and digital spot film are stored in lossless digital format. It has powerful processing capabilities like edge enhancement, gamma correction,multiple images, movie playback, window width/level, template experts, burn, etc.

9 Four-D electric motion control, accurate positioning, flexible and comfortable control, large frame design provides lager diagnostic spaces and comfortable surgical environment. New design and new ideas brings superior experience.



9. Two panels of human graphical LCD touch screen provide intelligent and convenient operation. Dual motion control system and double foot brake make this machine greatly meet the demands of clinical operations.



 Package: WOODEN CASE.Packing Detail: 2900 * 1650* 1750mm, GW:750KG





Medical equipment in carton,wooden case,standard exporting package

\
