| Brand Name: | annxin |
|---|---|
| Material: | copper line |
| Voltage: | 50w |

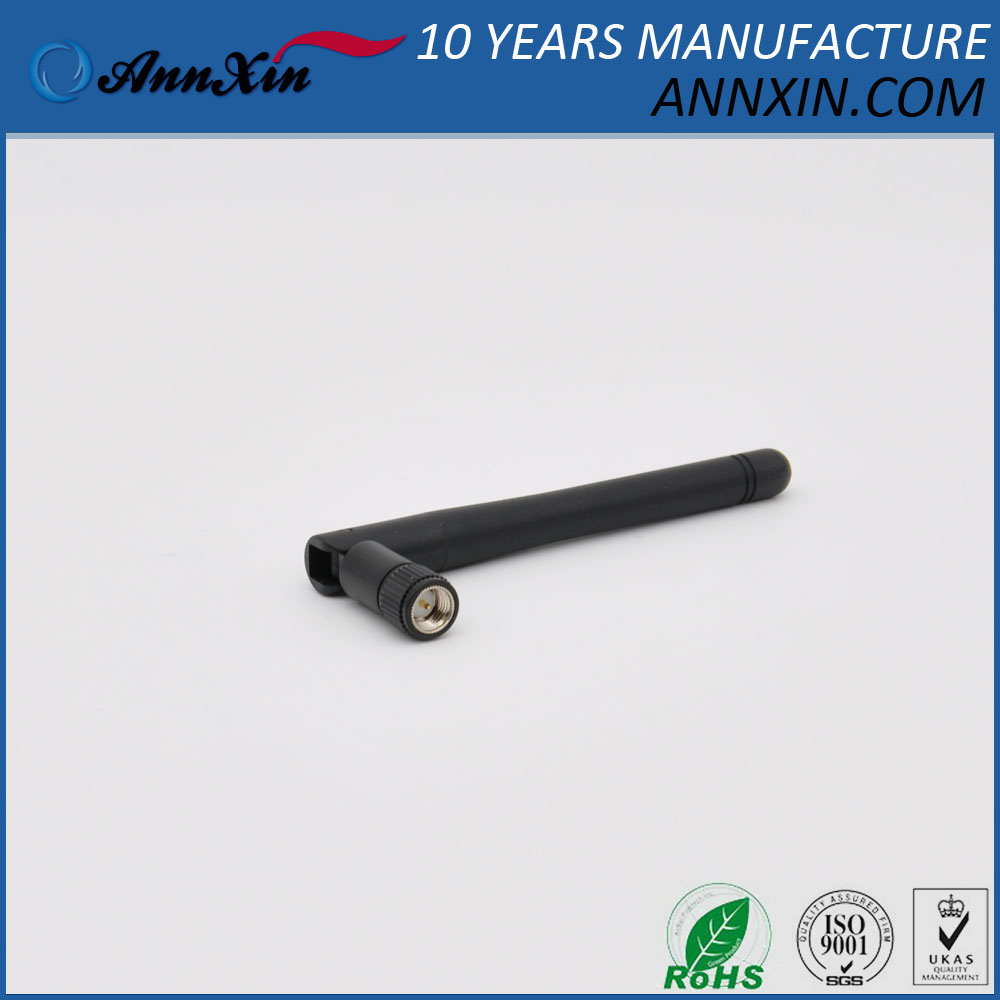

| Name: | 3G GSM Omnidirectional Antenna 2dBi with Flexible Joint SMA male |
| Certification: | 914419003347399560 |
Quick Details
Specifications
this compact omnidirectional antenna is designed for the frequency of 824-960 MHz (2G, GSM) and 1710-2170 MHz (3G, UMTS) and has a gain of 2dBi.
It supports all current/common standards like HSDPA, HSUPA, HSPA, HSPA+, EDGE, GPRS.
the antenna will be simply connected to the external antenna connector of your GSM/UMTS device. It has a standard SMA male plug with a flexible 90 joint.
Technical Data:
Type of Antenna:Omni 3G / GSM Antenna
Gain:2dBi
Impedance:50 Ohm
Frequency:824-960 MHz (2G, GSM)
1710-2170 MHz (3G, GSM)
Polarisation:Vertical (Linear)
Beamwidth:360 Horizontal
Connector:SMA male
Appliance:Indoor
Dimensions:108mm x 10mm
Weight:8g
Color:Black
It supports all current/common standards like HSDPA, HSUPA, HSPA, HSPA+, EDGE, GPRS.
the antenna will be simply connected to the external antenna connector of your GSM/UMTS device. It has a standard SMA male plug with a flexible 90 joint.
Technical Data:
Type of Antenna:Omni 3G / GSM Antenna
Gain:2dBi
Impedance:50 Ohm
Frequency:824-960 MHz (2G, GSM)
1710-2170 MHz (3G, GSM)
Polarisation:Vertical (Linear)
Beamwidth:360 Horizontal
Connector:SMA male
Appliance:Indoor
Dimensions:108mm x 10mm
Weight:8g
Color:Black
