| Temperature range: | -70~150 |
|---|---|
| Accuracy: | 0.5 |
| Theory: | Temperature Recorder |
| Usage: | Industrial |
| Brand Name: | OTS JUNYUAN |
| Model Number: | JY-OTS-1000P1 |
| Place of Origin: | China (Mainland) |
| Power: | Electronic |
Quick Details
Specifications

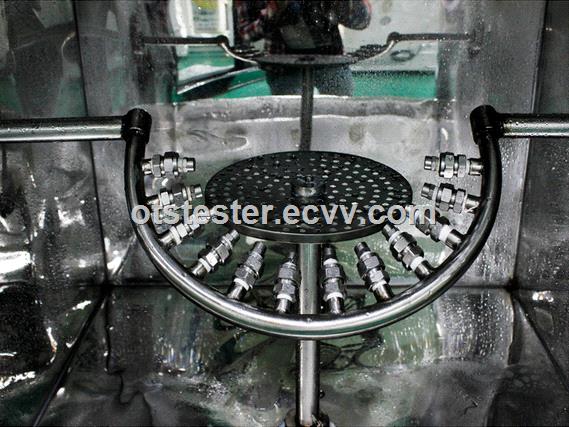

Touch Screen IPX1/2/3/4 Standard Rain Water Spray Test Chamber
Product Description
Rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronicProducts, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and itsSpare parts and other products. It provides the basis to improve the performance of the products.
this product uses the scientific design makes the device capable of Realistic simulation drip, water spray, splashing water, environmental, Water and so on. into the overall control system and the use of inverter Technology, making the rotation angle of rainfall in the test frame, Spray angle and swing the pendulum swinging spray volume can Automatically adjust the frequency.
Out case protection grade:
1.IPX1, IPX2 test
IPX1, X2 Negative pressure to absorb design
Unique nozzle, not easy to block
2.IPX3, IPX4 test
Pipe swing-type designed with gear motor, angle and speed adjustable.
Nozzle Angle aiming at the circle center
the main technical parameters
Features:
1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.
2. the test sample will be put or installed on the center of the Half-round sinuous pipe and make the bottom of the test samples and the Oscillating axis in a horizontal position. during test, the sample would Spin around the center line.
3. Can manual default the test parameters, complete testing automatically Shut off the water supply and pendulum pipe angle automatic zeroing and Automatic eliminate seeper, avoid scale blockage needle tip.
4. PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6 Best after sales service: One year free parts maintenance.
7 Customization is available & welcomed.
Our Services
We are here to help you. Services available:
Product Description
Rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronicProducts, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and itsSpare parts and other products. It provides the basis to improve the performance of the products.
this product uses the scientific design makes the device capable of Realistic simulation drip, water spray, splashing water, environmental, Water and so on. into the overall control system and the use of inverter Technology, making the rotation angle of rainfall in the test frame, Spray angle and swing the pendulum swinging spray volume can Automatically adjust the frequency.
Out case protection grade:
1.IPX1, IPX2 test
IPX1, X2 Negative pressure to absorb design
Unique nozzle, not easy to block
2.IPX3, IPX4 test
Pipe swing-type designed with gear motor, angle and speed adjustable.
Nozzle Angle aiming at the circle center
the main technical parameters
| Model | JY-OTS-800P | JY-OTS-1000P | ||||
| Internal Dim.WHD(mm) | 800800800 | 100010001000 | ||||
| External Dim.WHD(mm) | 125018001100 | 175018501300 | ||||
| Water Temp. | Normal | Normal | ||||
| Spray Type | Total Water Flow (L/min) |
R1 | 1.8 | IP1 | with in 1~1.5mm/min(In drip box) | |
| R2 | 3.2 | IP2 | with in 3~3.5mm/min(In drip box) | |||
| S1 | 24.5 | IP3 | Angle600,R:400mm,1.1L/min | |||
| S2 | 39.2 | IP4 | Angle1800,R:400mm,1.8L/min | |||
| Pressure of Spray nozzle (kgf/cm*2) |
R1 | 0.1 | 1.Flow rate of the water=0.07L/min | |||
| 2.1P3,Radius:400mm,16Number or open | ||||||
| Holes=16,total water flow:1:1L/min. | ||||||
| R2 | 0.3 | 3.1P4,Radius:400mm,25Number or open | ||||
| S1 | 1 | Holes=25,total water flow:1:8L/min. | ||||
| S2 | 3 | *Radius:200mm,R400mm. | ||||
| (for 1P3,1P4 only) | ||||||
| (RPM)Test Specimen Frame | 17RMP | 1RPM | ||||
| Spray Nozzle Rotation Speed | 23RPM | Promote the pipe on both sides of the vertical line of 30 Each time back and forth about four seconds to promote | ||||
| Swing 60 from vertical for 4 seconds at one time | ||||||
| Promote the pipe on both sides of the vertical line of 180 for about 12 seconds to promote one round | ||||||
| Swing 180 from vertical for 12 seconds at one time | ||||||
| Material | Interior | SUS#304 | ||||
| Exterior | ||||||
| Other Components | Chamber lamp.Wiper | Chamber lamp.Wiper,casters with Adjusters | ||||
| Casters with Adjusters | ||||||
| Power Source(K.W.) | AC 1 220V 60/50Hz 4KW | |||||
Features:
1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.
2. the test sample will be put or installed on the center of the Half-round sinuous pipe and make the bottom of the test samples and the Oscillating axis in a horizontal position. during test, the sample would Spin around the center line.
3. Can manual default the test parameters, complete testing automatically Shut off the water supply and pendulum pipe angle automatic zeroing and Automatic eliminate seeper, avoid scale blockage needle tip.
4. PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6 Best after sales service: One year free parts maintenance.
7 Customization is available & welcomed.
Our Services
We are here to help you. Services available:
Replacement manuals
- Consumables and replacement parts
- on-site maintenance and repair
- Warranty support
- over-the-phone service support and advice
If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals: PDF Files of manuals for current models are available free. Please contact Us to request a copy. Older and printed copies at additional charge.
- Service repair: We Prefer you contact us direct at the factory with any problems you may Be experiencing. We help diagnose the problem, arrange for any needed Parts, and schedule a technician to do the repairs. Rarely can a local Contractor get all that done for you as quickly as we can. We also Guarantee the work.
FAQ
Q1: Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2: how to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your Required.
Q3: Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning Before shipping, you just need link power in your lab, then can start to operate
Secondly; we had detailed operation manual with chamber, any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate.
