Introduction

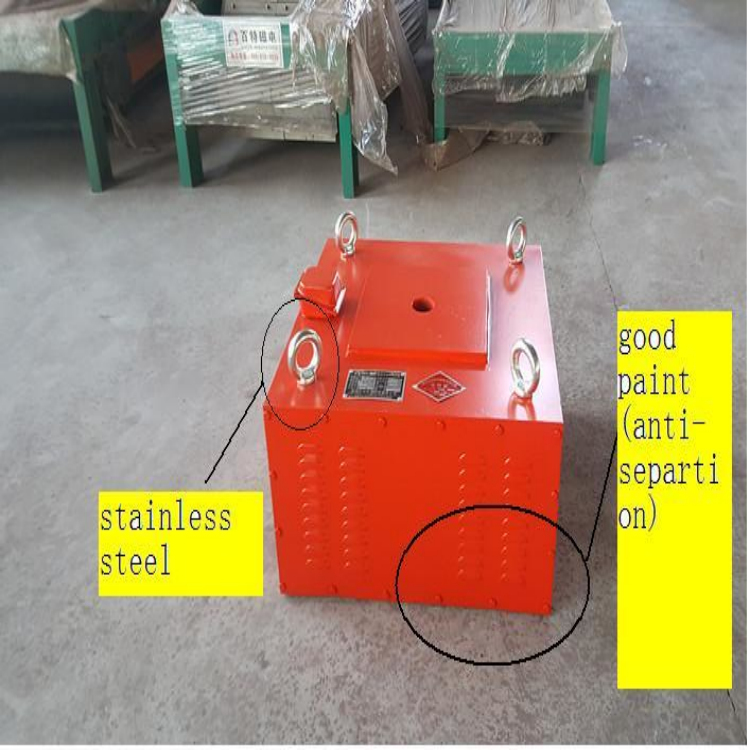

Series RCDA wind cooling electromagnetic iron removeris a wind-cooling electromagnetic iron separator. the internal excitation coils use air-conditioning fans or axial flow fan to cool the separator. When the iron separator is in a good working environment, air-conditioning fans sparse the heat; When the magnetic separator is in a harsh working environment (for example, plenty of dust, coal dust, smoke), axial flow fans sparse the heat. this product has a reasonable structure, low failure rate and a wide use range. It is usually used for conveyor belt to remove iron from any material before the crushing or milling process, and so as to protect the crushing and milling machines.
Product details
-- Strong magnetic intensity and special design for magnetic circuit.
--  the sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
--  Low energy consumption.
--  Easy to install and convenient to use.
--  High efficiency and stable performance.


Technical Data

NO.	Model		Conveyor belt width  (mm)	Suspension height(h=mm)	Material depth(mm)	Magnetic intensity(mt)	Belt speed(m/s)	Existing power (kw)	Condenser power (kw)	Weight(kg)	Appearance Size(mm)
											A	B	C	D
1	RCDA-4		400	100	70	50	4.5	0.6	0.15	350	610	400	240	240
2	RCDA-5		500	150	90	60		1.0	0.15	450	710	500	340	340
3	RCDA-6		600	175	120	60		1.6	0.37	620	910	600	500	500
4	RCDA-6.5		650	200	150	70		2.0	0.37	750	990	650	780	650
5	RCDA-8		800	250	200	70		4.0	0.37	980	1080	800	870	740
6	RCDA-10		1000	300	250	70		6.0	0.55	1330	1400	1000	1250	1040
7	RCDA-12		1200	350	300	70		8.0	0.55	1950	1600	1200	1400	1240
8	RCDA-14		1400	400	350	70		12.0	0.75	2870	1910	1400	1560	1400
9	RCDA-16		1600	450	400	70		15.0	0.75	3800	2010	1600	1760	1600
10	RCDA-18		1800	500	450	70		20.0	1.5	4500	2360	1800	2000	1800
Note:All themodels have T1, T2, T3design whose magnetic intensity Is higher than standard.The magnetic 90mt,120mt and 150mt separately,Discard Iron belt can be equipped with armor.

Packaging & Delivery
Packaging Details:
1. Pack each window with aluminum foil band and PVC film to protect against scratches.
2. Use wood pallet and frames to fix the windows to avoid collision or shaking.
3. Use packing strap to fasten the pallets.
4. Load the pallets with forklifts. Put airbags between pallets to avoid collision.
5. Customized packaging and shipping methods are acceptable.
Delivery Detail:
Shipped in 30 days after payment

FAQ

Q: Do you provide design solutions and drawings?

A: Yes. We will give you design suggestions and we can make CAD drawings as your request.

 Q: Can you provide samples?

A: Yes. We can make customized samples to you for quality checking and design confirmation.

 Q: Can I get installation instructions?

A: Yes. We provide installation instruction manuals or videos.

 Q: What is the lead time?

A: 30-45 days after payment and production drawing confirmation. that depends on the quantity and window type.

 Q: What is your MOQ?

A: Normally the MOQ is 50m². under certain circumstances even 1 piece is acceptable. Please consult with our sales for details.

 Q: What is your payment term?

A: 50% by TT as deposit for production, 50% by T/T against B/L copy.

 Q: Do you accept Credit Card, L/C, D/P and D/A.

A: We think TT is the best. It is safe, fast and the bank charge is relatively lower. We accept other payment methods in some circumstances. Please check it with our sales.

 Q: What is the shipping port?

A: Usually we ship from Qingdao port. If you want to ship from another port we can coordinate with you.

 Q: Are you a Trade Assurance supplier?

A: Yes. We are a selected Trade Assurance supplier.

 Q: What is Trade Assurance?

A: Trade Assurance is a free service offered by that's designed to help create trust between buyers and suppliers. Trade Assurance covers buyers with 100% order protection from their selected Trade Assurance suppliers.

with it you will get 100% product quality protection, 100% On-time shipment protection and 100% Payment protection.

 Q: how to get Trade Assurance service?

A: to get it you only need to CONFIRM your order online with us. PAY to our account designated by via e-Checking, Credit Card or Telegraphic Transfer (T/T). Contact our sales for a quicker access.
