| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Usage: | Water Slot Milling Machine |
| Weight: | 230kg |
| Voltage: | 220v/ 50HZ |
| Brand Name: | LQSK |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Usage: | window-doors machine |
| Weight: | 180kg |
| Voltage: | 220v/ 50HZ |
Quick Details
Specifications
Product features

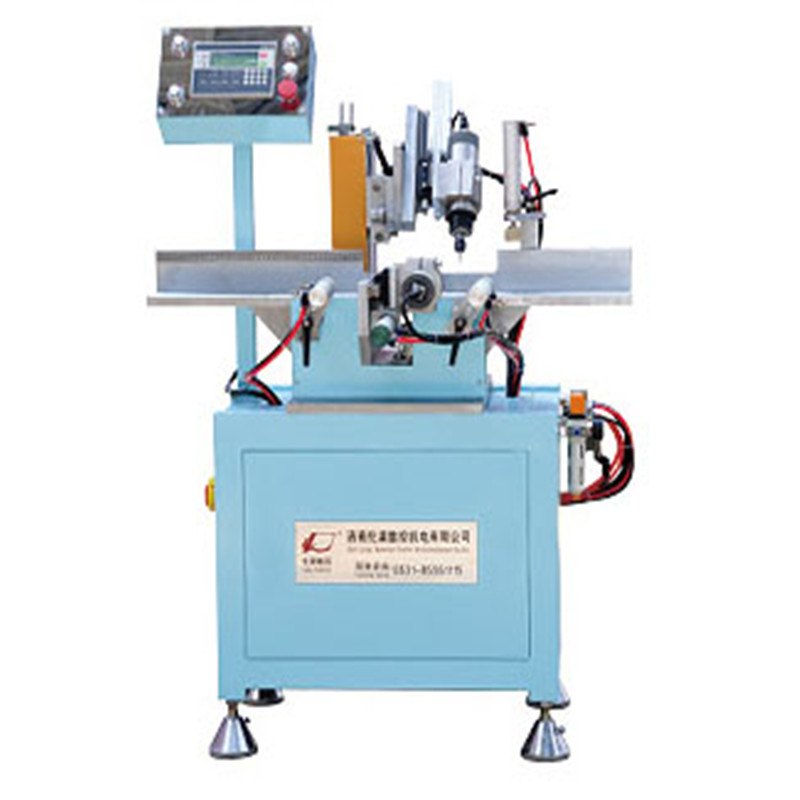

1.It Adopts human machine interface display, controlled by computer integrated machine with advanced technical content and low failure rate.
2. Feeding by highly precise square rail kinematic pair, the precision of the water slot milling is effectively ensured.
3. Milling cutter is equipped with the configuration of frequency control, high speed spindle and motor drive, the processing water slot is superior in outlook quality.
4. Due to one button operation, it is of easiness, convenience, high efficiency and precision.
Main technical parameters
Input voltage220v/50HZInput power1.6kww
Working pressure0.5-0.8MpaAir consumption30L/min
Idling speed
25000r/minwater slot milling length30-60mm
Water slot milling width5mm, 6mmWeight180kg
Contour dimensions1200mm*1000mm*1400mm
1.It Adopts human machine interface display, controlled by computer integrated machine with advanced technical content and low failure rate.
2. Feeding by highly precise square rail kinematic pair, the precision of the water slot milling is effectively ensured.
3. Milling cutter is equipped with the configuration of frequency control, high speed spindle and motor drive, the processing water slot is superior in outlook quality.
4. Due to one button operation, it is of easiness, convenience, high efficiency and precision.
Main technical parameters
Input voltage220v/50HZInput power1.6kww
Working pressure0.5-0.8MpaAir consumption30L/min
Idling speed
25000r/minwater slot milling length30-60mm
Water slot milling width5mm, 6mmWeight180kg
Contour dimensions1200mm*1000mm*1400mm
