| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Usage: | Aluminum & PVC Window-Door Processing Machine |
| Weight: | 220kg |
| Voltage: | 220v/ 50HZ |
| Brand Name: | LQSK |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Usage: | welding machine |
| Weight: | 220kg |
| Voltage: | 380v/50HZ |
Quick Details
Specifications
Product features

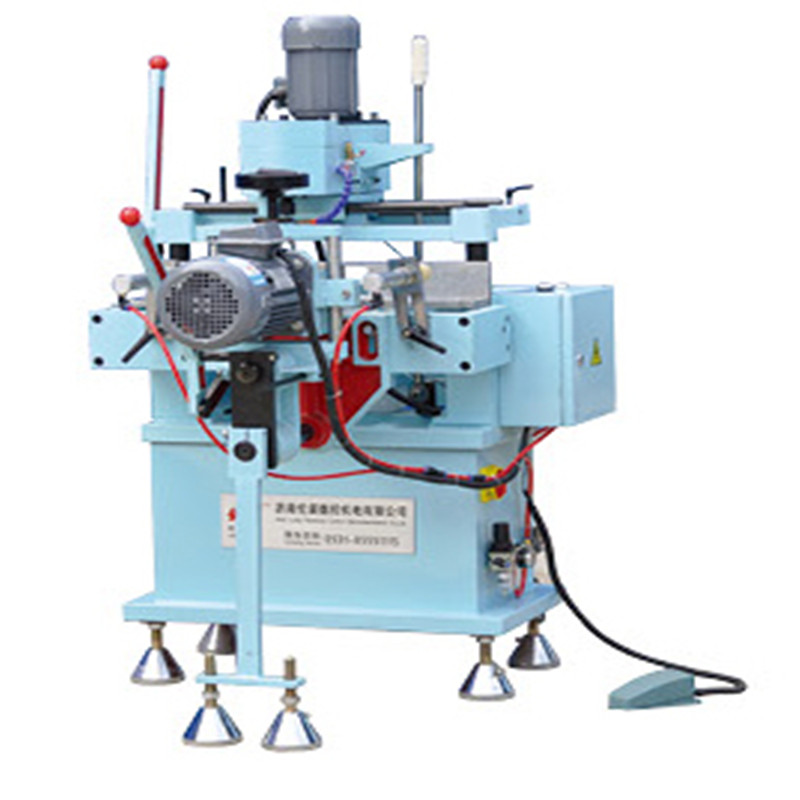

1. Processing the copy-routing milling of drainage groove, lock-hole, and hardware hole of aluminum and PVC profiles.
2. Due to the position of the three holes drill is altered from the bottom to the top of the machine, debugging is easier.
3. Altering different profiling model, different shaped groove hole can be processed.
Main technical parameters
Input voltage380v/50HZInput power2.5kw
Working pressure0.4-0.6MpaAir consumption30L/min
Dynamo rotary speed
2800r/minDiameter of copy-routing milling cutter
5, 8
Rotary speed of Milling cutter 11200r/minRange of copy-routing milling
290*90mm
Adjustment range of three-hole drill330*85*1000mmDiameter of three-hole drill
10, 12
Contour dimensions1200*1100*1400mmWeight220kg
1. Processing the copy-routing milling of drainage groove, lock-hole, and hardware hole of aluminum and PVC profiles.
2. Due to the position of the three holes drill is altered from the bottom to the top of the machine, debugging is easier.
3. Altering different profiling model, different shaped groove hole can be processed.
Main technical parameters
Input voltage380v/50HZInput power2.5kw
Working pressure0.4-0.6MpaAir consumption30L/min
Dynamo rotary speed
2800r/minDiameter of copy-routing milling cutter
5, 8
Rotary speed of Milling cutter 11200r/minRange of copy-routing milling
290*90mm
Adjustment range of three-hole drill330*85*1000mmDiameter of three-hole drill
10, 12
Contour dimensions1200*1100*1400mmWeight220kg
