| Application: | N/A |
|---|---|
| Rated Voltage: | N/A |
| Grounding: | N/A |
| Type: | Electrical Plug |
| Brand Name: | N/A |
Quick Details
Specifications
Full Shielded with zinc alloy housing

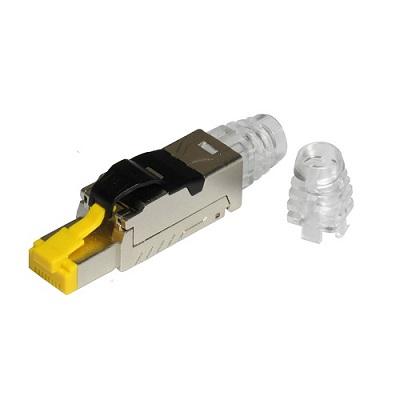

RJ45 Full Shielded Type
180 Straight cable entry
Comply with Cat.8 and Cat.6A
Suitable for the PoE plus ( IEEE 802.3at ) applications
Easy, Quickly, reliable and comfortable installation
Suitable for cabling from home networks to large data centers
Technical Specification | |
Standard |
ISO/IEC TR 11801-9901 Ed.1.0 (2014-08) Category 8 ANSI/TIA-568C.2 Category 6A IEC 60603-7 Category 6A ISO 11801 2nd Edition Class EA Plug IEC 60603-7 IEEE 802.3af/at PoE (PoE+) applications |
Housing and Cover material |
Zinc Die-casting with nickel plated |
Insertion Force |
30N max. (IEC 60603-7) |
Cable Entrance diameter range |
6.0mm~8.5mm |
Insulation Diameter range |
0.95mm~1.45mm |
Solid and stranded Conductor |
22AWG~26AWG (0.686mm~0.241mm) |
Wire scheme |
T568A / T568B |
Retention Strength |
7.7kg between jack and plug |
Operating Temperature |
-10~60(ISO/IEC 11801, ANSI/TIA-568C.2) |
Mating Cycles |
750 cycles Minimum |
IDC mating Cycles |
20 Installation cycles minimum |
RoHS Compliancy |
Compliant |
Accessories |
Copper foil tape*1 Boot: 7.3mm cable entrance *1 9.0mm Cable entrance*1 |
