| Output Voltage: | 320-960mA |
|---|---|
| Input Voltage: | 100-277 |
| Output Type: | Single |
| Brand Name: | LINKUAN |
| Output Current: | 320-960mA |
| Output Frequency: | 89% |
| Model Number: | LKAD028F |
| Place of Origin: | China (Mainland) |
| Power factor: | 0.9 |
| Size: | L132xW45xH24mm |
| Type: | Class 2 constant current |
| Current Accuracy: | 3% |
| Application: | LED LIGHTS |
| Features: | high efficiency,high PF |
| Certification: | TUV,SAA,CB,CCC |
| Name: | shenzhen led driver |
Quick Details
Specifications

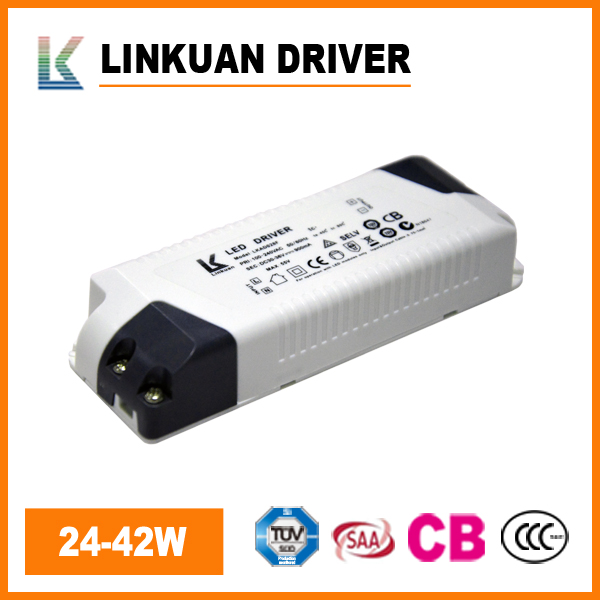

SAA TUV approved high PF LED ceiling lights 960ma 40V LED driver 36w with 50000 hours lifespan
Detail parameter
Product Electric Parameters | |||
Input specification |
Input voltage |
AC90-264V | |
|
Input frequency |
50/60HZ | |
Output specification |
Output voltage can be adjusted |
5% | |
|
Start-up time |
=<1S(input230V,Io=100%) | |
|
Keep time |
=>20mS (input110V,Io=100%) | |
|
Voltage regulation |
(Full load) =<0.5% | |
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery | |
|
over-voltage protection |
=<05% - 150% of the rated voltage | |
Safety standards |
According with EN61347-2-13:2006,EN61347-1/A2:2013,EN2493:2010 standards. | ||
E M C standards |
According with EN5015 standards | ||
Environmental |
Working temperature |
-20C~60C/20%~90%RH (no frost) | |
|
Storage temperature |
- 40 ~75 c / 10% ~ 95% RH (no frost) | |
Structure |
Size(mm) |
L132xW45xH24mm | |
Cooling method |
Cooling method |
Natural cooling air convection | |
| Product Model | DC output | PF | Efficiency | |
| LKAD14FC960 | 26-40V 320-960mA | 0.90 | 89% | |
Features
- 90-264VAC(50/60Hz) Input, suitable for international general AC input;
- Isolated topology;
- High efficiency and good stability;
- the copper wire of transformer is Grade F, resist high-temperature 155oC
- THD<15%, Current accuracy: 3%
- Short circuit,over voltage, over current and over temperature protection
- Cooling by natural air convection
- 100% Full load burn-in test
- Independent, Class 2 constant current type
- Degree of protection IP20
- Certification: TUV,SAA,CB,CCC
- Application for LED ceiling light,down light,panel lights and so on;
- 9 years' Experience in the LED drive r/ power supply field
