| Output Voltage: | 16-45V |
|---|---|
| Input Voltage: | 100-277 |
| Output Type: | Single |
| Brand Name: | lINKUAN |
| Output Current: | 350mA |
| Output Frequency: | 82% |
| Model Number: | LKAD014D |
| Place of Origin: | China (Mainland) |
| Size: | L198xW41xH26.5mm |
| Application: | LED Lighting |
| Warranty: | 5 years |
| Type: | Class 2 constant current |
| Current Accuracy: | 3% |
| Power factor: | >0.9 |
| Certification: | SAA,CE |

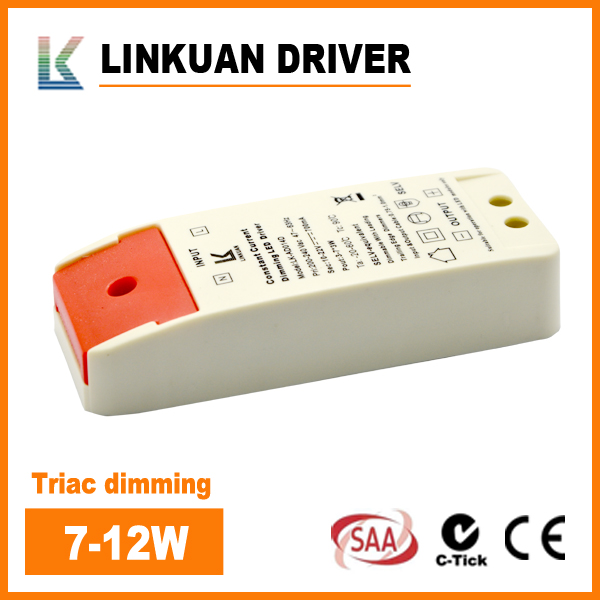

| Product name: | SAA dimmable Constant current 15W 350ma 450ma 600ma 700ma 36v led driver |
Quick Details
Specifications
SAA dimmable LED driver 12W 36V 350mA for home light driver
Features
- 200-240VAC(50/60Hz) Input;
- Isolated topology,MCU program,Leading (or trailing) triac dimming;
- High efficiency,high PF, good stability,dimming smoothly;
- the copper wire of transformer is Grade F, resist high-temperature 155oC
- Current accuracy: 3%
- Short circuit,over voltage, over current and over temperature protection
- Cooling by natural air convection
- 100% Full load burn-in test
- Independent, Class 2 constant current type
- Degree of protection IP20
- Certification: SAA,CE
- Application for LED ceiling light,down light,panel lights and so on;
- 9 years' Experience in the LED drive r/ power supply field
