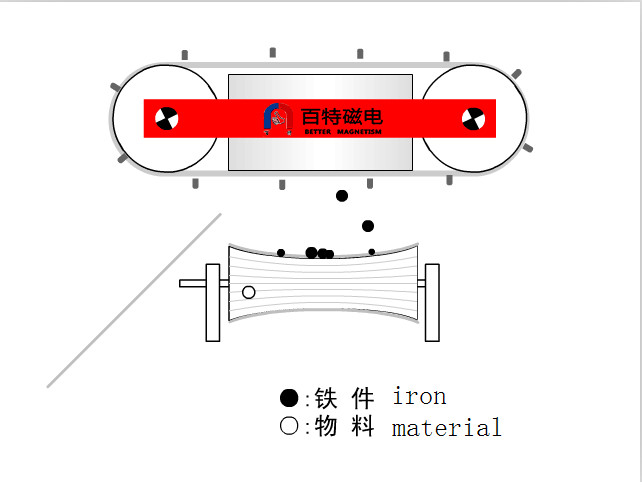

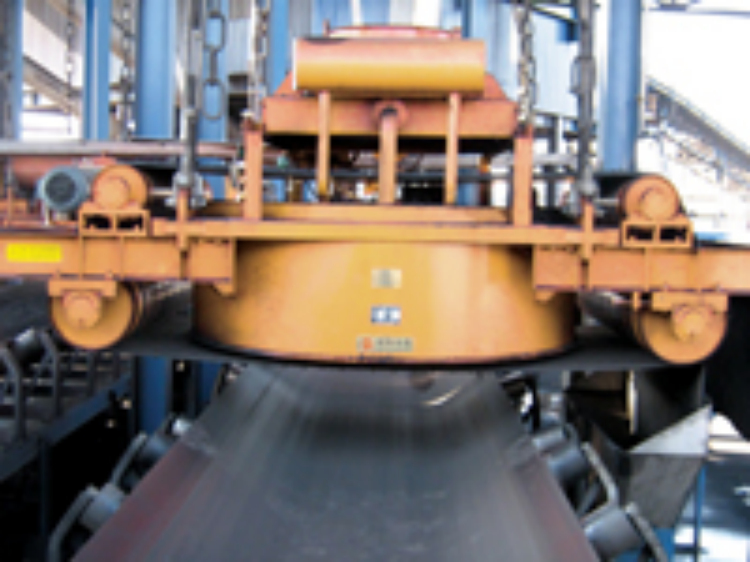

RCDEQ(RCDFQ) series forced oil cooling overband magnetic separator for conveyor belts is mainly used in occasions with particularly high iron removal requirements in coal conveying ports, large scale thermal power plants, coal mines, etc. It is suspended above large conveyor belt to effectively eliminate detonator, lead wire and other small iron pieces in the coal, and can work in dusty, humid, seriously salt spray corrosive and other harsh environments. There are seven kinds of specifications for magnetic filed intensity at rated suspension height: 90 mT, 120 mT, 150 mT, 175 mT, 200mT, 225 mT and 250 mT.

Feature
   1.Magnetic route is short, magnetic waste less, the gradient is high and removing iron efficiently.
   2.Light weight, compact cooling structure and high heat-releasing efficiently.
   3. Absorbing the advanced oil forced circulation technology for the large or medium transformer both home and abroad, it features with low temperature rising (40C) and the technology is reliable and safety.
  4. the exciting coil is completely dipped into the transformer oil to be dustproof, moisture-proof and anti-corrosion.
  5. Made three-dimensional excitation coil winding, the area for heat releasing is large to control the temperature rise (40C) for long service life.
  6. Easy maintenance, the drum shape structure, special designed wholly sealed structure to help the equipment run in harsh environments.
Technical Data

		Conveyor belt Width  (mm)	Suspension height (h=mm)	Magnetic intensity (mt)	Belt Speed (m/s)	Existing Power (kw)	Condenser Power  (kw)	Weight (kg)	Appearance Size (mm)
RCDEQ-10	T1	1000	300	90	5.8	6.5	0.25	3450	296016201480
	T2			120		9.5	0.25	3820	296016201520
	T3			150		15.0	0.25	4500	300016201550
RCDEQ-12	T1	1200	350	90		9.0	0.25	3850	325017701520
	T2			120		14.0	0.25	4620	335017701590
	T3			150		20.0	0.25	6600	352017701590
RCDEQ-14	T1	1400	400	90		14.0	0.25	4650	335017501550
	T2			120		20.0	0.25	6780	352018601590
	T3			150		29.0	0.25	8560	363018601620
RCDEQ-16	T1	1600	450	90		18.0	0.25	5760	352018501590
	T2			120		28.0	0.25	8920	375022501620
	T3			150		32.0	0.25	10200	395022501630
	T4			175		52.0	0.75	12300	412024701750
	T5			200		70.0	0.75	14375	4170247001750
	T6			225		85.0	1.1	16730	4230249001800
	T7			250		104.0	0.552	18250	4350253001860
RCDEQ-18	T1	1800	500	90		26.0	0.75	8800	395022501630
	T2			120		32.0	0.75	10500	395024501650
	T3			150		40.0	0.75	12500	400024501670
	T4			175		56.0	0.75	18560	424025001800
	T5			200		75.0	0.75	20754	430025201850
	T6			225		90.0	1.1	22500	430025801900
	T7			250		107.0	0.552	23500	440026501950
RCDEQ-20	T1	2000	550	90		30.0	0.75	11650	395024501650
	T2			120		39.0	0.75	13500	410026801670
	T3			150		41.0	0.75	15200	462026801670
	T4			175		70.0	0.552	24580	440026801830
	T5			200		83.0	0.552	25435	447027001900
	T6			225		104.0	0.552	27890	452027302150
	T7			250		125.0	0.552	29500	460028002250
RCDEQ-22	T1	2200	600	90		39	0.75	13200	410026801670
	T2			120		42	0.75	16500	426027501690
	T3			150		45	0.75	17260	450027501690
	T4			175		100	0.552	28750	465028502200
	T5			200		121	0.552	30445	470029002300
	T6			225		153	0.552	32270	478029002300
	T7			250		176	0.552	34100	483029502370
RCDEQ-24	T1	2400	650	90		40	0.75	16800	426027501690
	T2			120		46	0.75	18500	450027501690
	T3			150		54	0.75	22000	480029501720
	T4			175		120	0.552	34750	460028502100
	T5			200		150	0.552	37680	470029502280
	T6			225		180	0.552	40585	485030002430
	T7			250		200	1.12	44500	4950310025

Packaging & Delivery
Packaging Details:
Pack each window with aluminum foil band and PVC film to protect against scratches.
2. Use wood pallet and frames to fix the windows to avoid collision or shaking.
3. Use packing strap to fasten the pallets.
4. Load the pallets with forklifts. Put airbags between pallets to avoid collision.
Delivery Detail:
Shipped in 30 days after payment
