| Item Type: | Tube Lights |
|---|---|
| Light Source: | LED |
| Brand Name: | ALLMAY |
| Certification: | CE,RoHS |
| Working Lifetime(Hour): | 50000 |
| CRI (Ra>): | 70 |
| Input Voltage(V): | 85-265 |
| Place of Origin: | China (Mainland) |
| IP Rating: | IP33 |
| Lamp Body Material: | Aluminum |
| Working Temperature(): | |
| Color Temperature(CCT): | Warm White |
| Lamp Luminous Efficiency(lm/w): | 100 |
| Lamp Luminous Flux(lm): | 900 |
| Lamp Power(W): | 9 |
| Warranty(Years): | 2 |
| LED Light Source: | SMD2835 |
| Sensor distance: | 6-8m |
| Sensor degree: | 180*360 |
| Delay time: | 18-25s |
Quick Details
Specifications

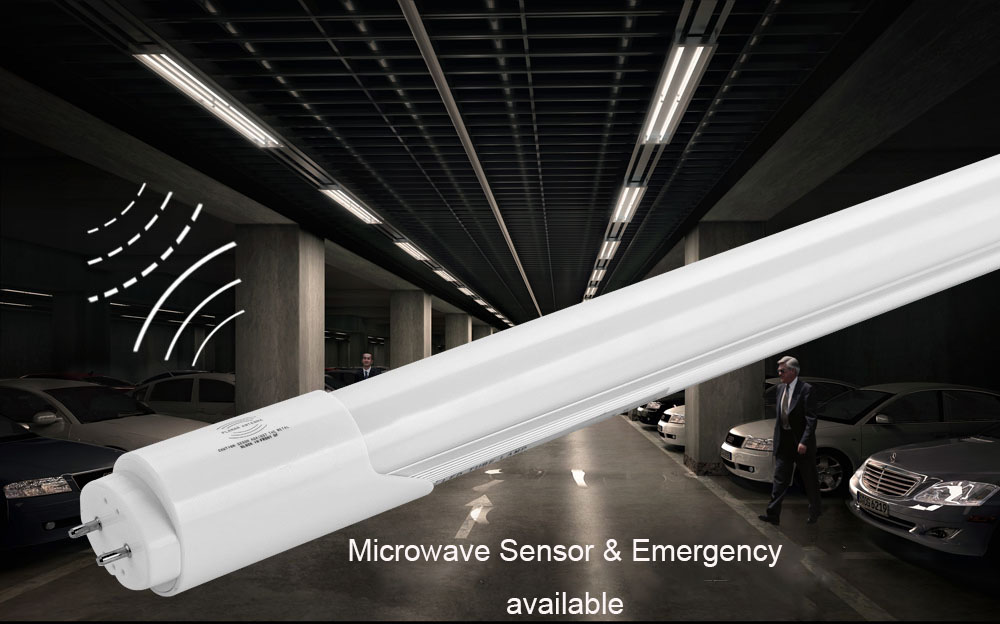

600mm(2ft) 9W T8 LED Tube with Motion Detector / Turns off
this 9W T8 LED Tube uses a radar motion detection system, emits a brightness of 900 lumens, has a 30.000 hour lifespan and coms with a translucent cover.

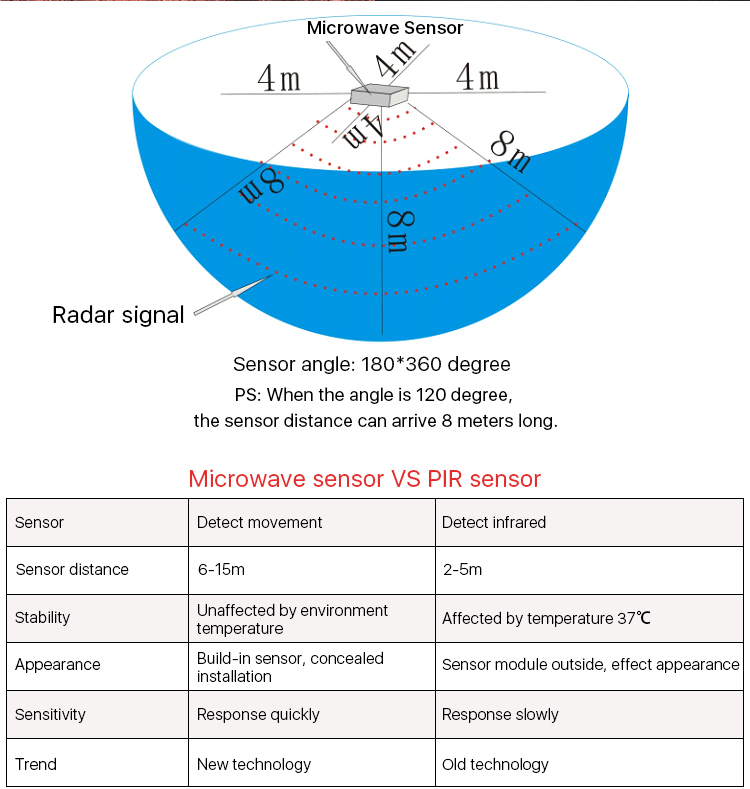

Thanks to its incorporated radar sensor, the light turns on whenever it detects movement at a 180 angle and at a distance of 8 meters. the tube turns off when no motion is detected within range (180 and 8 meters), and 30 or 40 seconds have passed.
Features:
the ultimate in energy-efficient tube lighting
Full brightness when movement detected dropping to 20% brightness (or off 0% ) in standby mode (no movement).
in-built microwave motion sensor.
Much more effective than previous PIR sensors.
Easy to install, Allmay LED Tube fits into your existing fluorescent T8 light fixture.
Poly-carbonate and aluminium construction.
Low energy alternative to a standard fluorescent batten
Ultra-bright LEDS: low power consumption with enhanced life expectacy
Slim design: offers a more stylish and modern solution to traditional battens
Applications:
Ideal for areas where traffic is infrequent but background lighting is still important for safety and security.

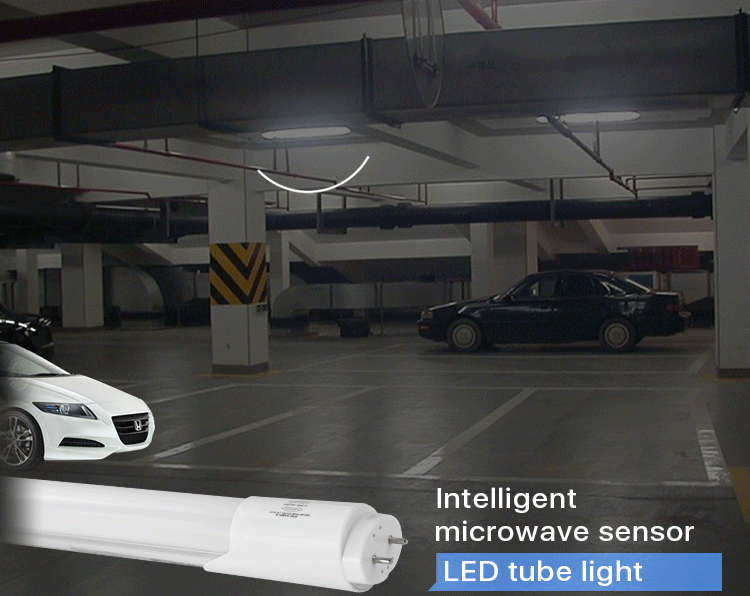

Car-parks, staircases, corridors & walkways. Warehouses and distribution centers. Basements, washrooms, entrances & exits.
Technical parameters - Microwave Sensor T8 LED Tube
| Power consumption | 9w in bright mode/ 2-4 w in standby mode |
| Equivalent |
120 Watt tungsten lamp |
| Input voltage | 85-265VAC, 50-60Hz |
| Power factor | >0.92 |
| Lumen output | 900lm bright mode/230lm standby mode |
| Color temperature | Cool white 6000-6500K |
| LED Source |
48PCS SMD2835 |
| Color rendering index (CRI) |
>70 |
| Beam Angle |
120 |
| Composition-diffuser & casting |
Opaque, unmagnified, Polycarbonate |
| Construction |
Corrosion resistant 6063 Aluminium alloy |
| Operating temperature |
-20 to +50 C |
| Service life |
35000+hours |
| Detection angle |
180*360 |
| Detection zone |
up to 8 m radius |
| Standby power consumption |
<1w |
| Plug/Socket/Base |
T8 size / G13 Base |
| Diffuser |
Frosted diffuser |
| Housing construction |
Aluminum & Polycarbonate cover |
| Dimensions |
Dia 26 * 600 mm |
