| Brand Name: | Firstrate |
|---|---|
| Usage: | Industrial |
| Output: | 10mV/V ~ 15mV/V |
| Theory: | MEMS technology |
| material: | stainless steel |
| Model Number: | FST200-201 |
| Place of Origin: | China (Mainland) |
| output signal: | 10mv/v-15mv/v |
| signal line: | 4 wire |
| compensated temperature: | -20~+85 deg C |
| Certificate: | CE, ROHS |
| Material: | Stainless Steel |
| use for: | universal industrial |
| supply voltage: | 5-15vdc |
| accuracy: | 0.05 %FS, 0.1%FS, 0.3%FS, 0.5%FS |
| EMC: | EN61000-6 |
| range: | 1-600bar |
Quick Details
Specifications
| Product Introduction | |

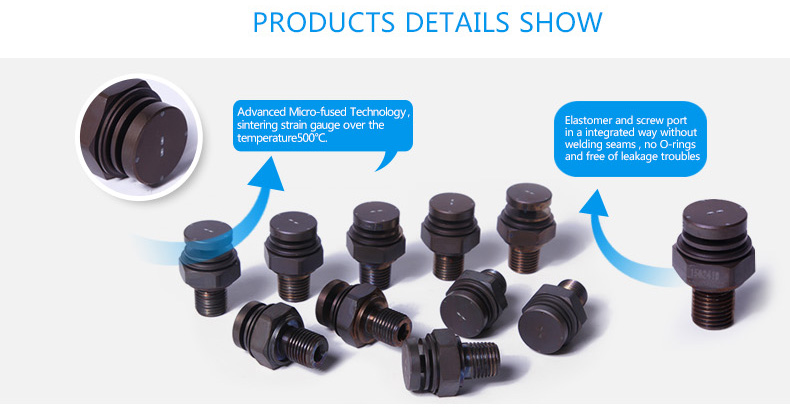

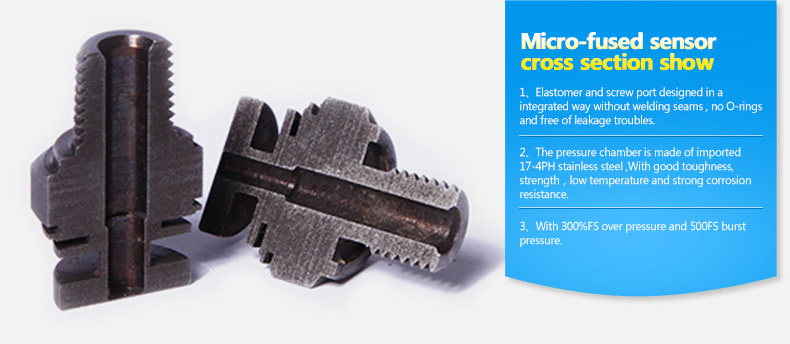

| FST800-201 hotsell Industrial analog output high precision pressure sensor is a silicon MEMS strain gauge sensor which is glass bonded to a stainless steel diaphragm. It avoids influences on product caused by temperature, humidity, mechanical fatigue and medium, thus to improve its longterm stability in the industrial environment. Its pressure chamber is made of 174PH stainless steel in an integrated way without welding seams or Orings and free of leakage troubles. the sensor adopts the advanced digital Compensated Temperature and is featured with the strong interference resistance, wide working temperature scope and longterm stability, etc. the series products provide several optional pressure connections and electric connections for customers. | |
| Product Features | |
| Advance Microfused Silicon Strain Gauge, whole-designed elastomer, free of leakage troubles Advanced digital temperature compensation and wide working temperature scope High sensibility, high accuracy, high frequency response and longterm stability Excellent resistance against impact, overload, shock and erosion | |
| Applicable Scope | |
| Industrial process testing and control Automatic testing system Hydraulic and pneumatic systems Pump station and water treatment system Industrial machinery manufacture | |
| Standard Range | |
| Pressure Type | Gauge pressure and sealed pressure |
| Pressure Range(bar) | 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 |
| Pressure Range(psi) | 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K |
| Technical Index | |
| Signal Output | 10mV/V ~ 15mV/V |
| Signal Line Specification | 4wire |
| Supply Voltage | 5~15VDC( recomend10VDC) |
| Accuracy | 0.05%FS 0.1%FS 0.3%FS 0.5%FS |
| Zero Drift | 0.02%FS/C |
| Thermal Sensitivity Shift | 0.02%FS/C |
| Longterm Stability (1 Year) | 0.1%FS |
| Frequency Response (-3dB) | 3.2kHz |
| Compensated Temperature | -20~+85C |
| Working Temperature | -40~+85C |
| Storage Temperature | -40~+125C |
| Overload Pressure | 300% FS |
| Burst Pressure | 500% FS |
| Mechanical Vibration | 20g |
| Impact (11ms) | 100g |
| Environmental Protection | IP65 |
| Media Compatibility | 17-4PH |
| EMC | EN61000-6 |
| Certificates | RoHS |
