| Pixels: | 6mm |
|---|---|
| Display Function: | Video |
| Tube Chip Color: | Full Color |
| Usage: | Outdoor |
| Brand Name: | Hangel Tech |
| Screen Dimension: | Customized |
| Model Number: | HTF-ROD6mm |
| Place of Origin: | China (Mainland) |
| Cabinet Unit Dimension: | 576 x 576mm |
| Cabinet Unit Resolution: | 96 x 96 pixels |
| Cabinet Unit Weight: | 10 KG/unit |
Quick Details
Specifications

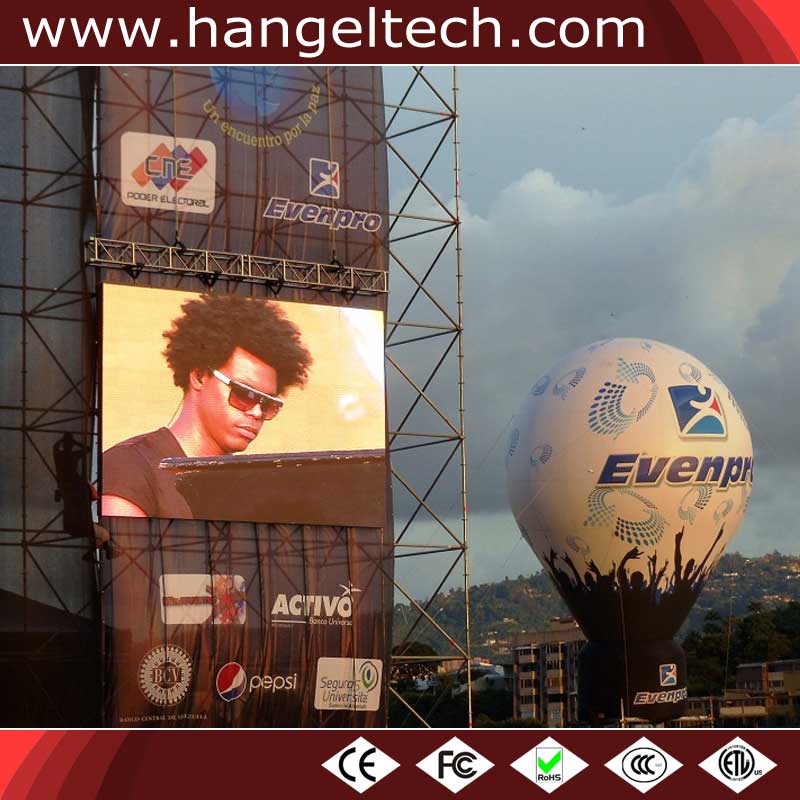

Outdoor P6mm LED Video Screen Display for Rental - Die Casting Cabinet 576x576mm
Technical Specifications,
|
Model No. |
HTF-ROD6 SMD |
|
Pixel Pitch |
6mm |
|
Pixel Density |
27,778 dots/sqm |
|
LED Tech |
SMD3535, RGB 3 in 1 |
|
Module Size |
192 x 192mm |
|
Module Resolution |
32 x 32 pixels |
|
Cabinet Size |
576x 576 x 80mm |
|
Cabinet Frame |
Lifting Cabinet |
|
Cabinet Material |
Die Casting Aluminum |
|
Cabinet Resolution |
96x 96 pixels |
|
Cabinet Weight |
12 KG/PC |
|
Brightness |
>6000Nits (CD/sqm), bright enough for outdoor facing sunlight |
|
Brightness Controlling |
Manual 256 levels, Auto 8 level |
|
Driving Mode |
1/8 scan, constant current driving |
|
Refresh Rate |
>1000 HZ |
|
Frame Rate |
60 HZ |
|
Grey Scale |
65536 level |
|
Display Colors |
10-bit colors |
|
Viewing Distance |
3 ~ 300 meters |
|
Viewing Angle |
Hor. 160; Ver. 160 |
|
Protection Grade |
Front IP65; Back IP54, weather proof |
|
Power Input |
AC110V 60HZ / AC220V 50HZ, 10% more or less |
|
Power Consumption |
Max.1200w/sqm Aver. 400w/sqm |
|
Working Temp. |
-30 Celsius ~ +50 Celsius |
|
Working Humi. |
10% ~ 90% |
|
Maintenance |
Rear access, replace fault components |
|
Signal Input |
AV, S-Video, VGA, DVI, HDMI, SDI, DP (use Video Processor) |
|
Controlling Distance |
CATE 5 < 100 mts; SMF < 10 KM; 3G, 4G controlling no distance limitation |
|
MTBF |
> 5000 Hours |
|
LED Life Span |
100,000 Hours |
Q & A
Question,
Why should I choose this model, but not another one?
Answer,
There are many advantages for the model HTF-ROD6mm.
- 576 x 576mm modular unit, easy to be assembled as any required dimension;
- Light body, less than 10KG/unit. One person can manage the installation & dismantle. It saves much labor cost.
- High definition, high contrast ratio and rich colors (281 trillion colors), present views amazing & stunning visual feast.
- High brightness & weather proof ensure that the screen can work well outdoors under sunlight.
Question,
Why should I buy it from you, but not from other vendors?
Answer,
Hangel Technology and our team have been in the field of LED display over 7 years. We are focusing on LED display technology developing to supplying clients assured, relieved & considerate LED display solutions & services.
in these years, we are servicing for hundreds of customers & partners from over 50 countries & areas all over the world.
We are doing our job with rich-experienced production team, skillful workers & & considerate customer service staff.
from the moment you entrust the job to us, we are ready to supply you reliable products & considerate service.
Question,
What's the warranty for the screen?
Answer,
We offer 2 years warranty to the LED display screen and enough spare parts in case there is some problem.
Actually, there are less problem on our products. for those products exported in 2010, we checked with our clients to know that most of them are still working well now.
for more information, pls contact us directly.
