| Dimensions: | As per request |
|---|---|
| Brand Name: | XH |
| density: | 10.2g/cm3 |
| name: | Molybdenum wire |
| Purity: | 99.95% |
| Model Number: | Mo1 |
| Place of Origin: | China (Mainland) |
| Material: | Molybdenum |
| Purity: | 99.95% |
| Application: | EDM cutting machine |
| Diameter: | As per request |
| Package: | 2000 meter/roll |
| Delivery time: | 7 working days |
Quick Details
Specifications

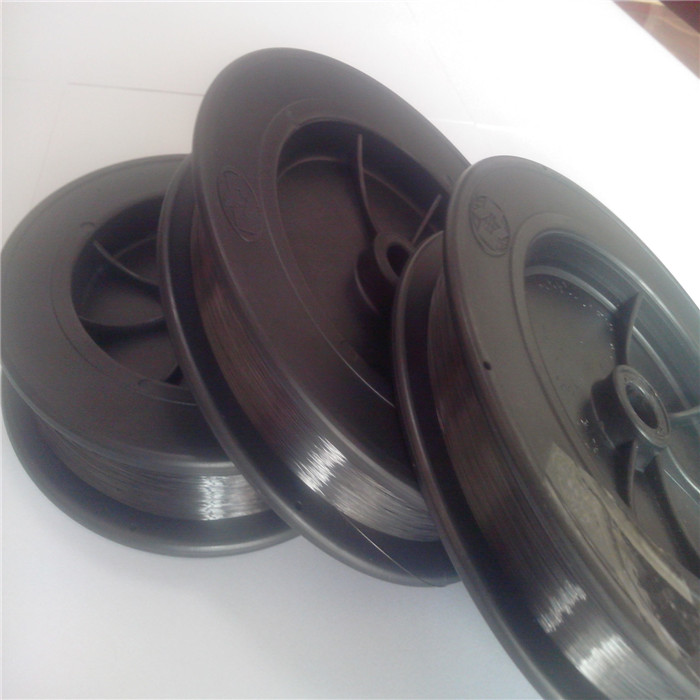

EDM Machine Cutting Molybdenum WireSpecifications
Molybdenum Wire
1.Density:10.20g/cm3
2.Purity: Mo99.95%
3.Standard: GB/T4182-2003
Molybdenum wire is a key part for Monocrystalline Silicon growing furnace application, it has higher creep resistance,thermal stability and better ductility after high-temperature use.
Our minimum diameter of moly wire is 0.04mm
1. Grade: Mo1,Mo2,TZM,MOLa,WMo
2. Purity: > =99.95%
3. Characteristic:
Melting Point:2610 Degrees Celsius
Boiling Point:4800 Degrees Celsius
Density: 10.2g/cm3
High quality, workability
4. Certificate: ISO9001:2008
5. Product Feature:High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion..
6. Dimensions and tolerance(According to clients' requirements):
Grade |
Mo-1 |
Grade |
Mo-1 | ||
the impurity content is not more than % |
Pb |
-- |
the impurity content is not more than % |
Si |
0.003 |
Bi |
-- |
Ca |
0.002 | ||
Sn |
-- |
Mg |
0.002 | ||
Sb |
-- |
P |
0.001 | ||
CD |
-- |
C |
0.020 | ||
Fe |
0.006 |
O |
0.003 | ||
Ni |
0.003 |
N |
0.003 | ||
Al |
0.002 |
-- |
-- | ||
Sizes and detail
Diameter(m) |
Weight/200mmmg |
Weight/200mm tolerance |
Diameter tolerance % |
30d40 |
1.47 -2.61 |
3.0 |
---- |
40<d100 |
>2.61 16.33 |
3.0 |
7.0 |
100<d400 |
>16.33 256.2 |
3.0 |
---- |
400<d600 |
---- |
---- |
2.5 |
600<d2500 |
----- |
----- |
2.0 |
7. Application:
Molybdenum wire is widely used in lighting (such as used as mandrel, support wire, lead-in wire, etc.), heating components, heating material in furnace, wire-cutting, spraying wire, glass to metal seals, printer pins, coil-mandrels,hooks for ordinary lights,grids for electronic tubes and heaters for hi-temperature furnaces; also hi-temperature structural for halogen lamps, heaters for hi-temperature furnace, rotation axis for X-ray and other fields and so on.
