| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|

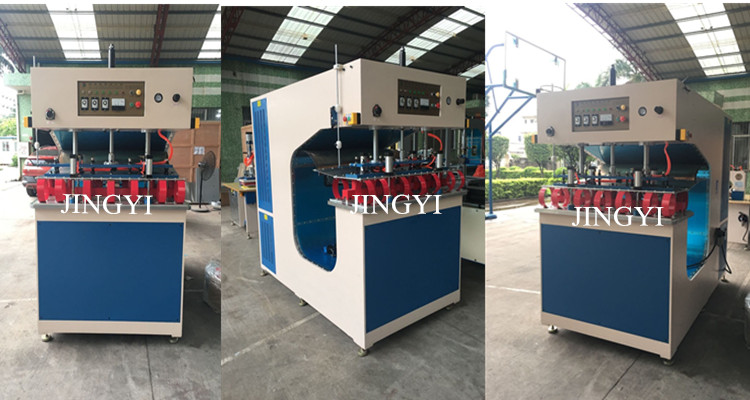

| Usage: | RF PVC Tents Welding Machine Canvas Tarpaulin Inflatable |
| Weight: | 1500kg |
| Voltage: | AC220/380/400/415/440V 3PHASE |
| Brand Name: | Jing Yi |
| Dimensions: | 60*1200, 1000*25MM |
| Welding Area: | Depend |
| Frequency: | 27.12MHZ |
| Power: | 8KW, 10KW, 12KW, 15KW, 25KW |
| Model Number: | JY-FB |
| Place of Origin: | China (Mainland) |
| Usage: | RF PVC Tents Welding Machine Canvas Tarpaulin Inflatable |
| Warranty: | 1 year |
| Certificate: | CE |
| Color: | Main Blue |
| OEM: | Accepted |
| ODM: | Accepted |
| Customize: | YES |
Quick Details
Specifications
Features
1. High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
2. Length, width and radian of welding area can be adjusted by welding die.
3.There is 750mm free space behind the electrode which makes the machine suitable for big scale manufacturing that require extensive material handling. The dimension of product handle platform can be made as client request.
4. for getting better welding effect, install laser scanning system inside the machine to get precise wedling position.
5. European model squareness high frequency vibration bos, more realiable and stable in output
6. International industrial wave bands 40.68MHz and 27.12MHz, which is in line with international standard.
7. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.
8. Welding time can be adjusted according to welding materials
9. Firmly welding, be well meet with thick or thin dimension of welding material
10. Machine groove deep and wide, conveninent In continuous welding with large area.
11. Single line or two lines continue welding, welding length can be ordered as special need.
12.Can be used as a freestanding machine for welding production or as a supplement to a larger machine system.
13.Machine groove deep and wide,conveninent in continuous welding with large area.
14.Firmly welding,be well meeting with materials of thick or thin.
Specification
|
Model |
JY8000FB |
JY12000FB |
JY15000FB |
JY25000FB |
|
Power |
8000W |
12000W |
15000W |
25000W |
|
Voltage |
3P 380v 50Hz or customize |
|||
|
Frequency |
27.12MHz |
13.56MHz |
||
|
Input power |
15KVA |
20KVA |
25KVA |
35KVA |
|
Oscillation tube |
7T69RB |
E3130 |
8T85RB |
8T25RA |
|
Max pressure |
500kg |
800kg |
1000kg |
1500kg |
|
Operation mode |
Pneumatic |
|||
|
Max gap of electrodes |
100mm |
|||
|
Size of active horn |
100mm |
|||
|
the size of upper electrode |
100*600mm |
100*800mm |
100*1000 |
100*1500mm |
|
the size of lower electrode |
400*800mm |
400*1000mm |
400*1200mm |
400*1500mm |
|
Welding time |
0.01~9.99s adjustable |
|||
|
Net weight |
800kg |
1000kg |
1300kg |
1500kg |
|
Overall dimension |
1500*1350*1740 |
1650*1350*1740 |
1700*1480*1740 |
1980*1480*2350 |
Industrial Canvas,PVC Tent,PVC tarpaulin,PVC stretch ceiling,Raincoat,Inflatable toys,Waterbed,Large-scale advertising banner,Awning and canopy,Truck cover,Sunshading canvas,Painting canvas,film curtain and relatives for automatic stepping welding and solding
