| Contact Load: | Low Power |
|---|---|
| Protect Feature: | Sealed |
| Size: | Miniature |
| Theory: | Electromagnetic Relay |
| Brand Name: | Titcha |
| Usage: | General Purpose |
| Model Number: | MY2(HH52P) |
| Place of Origin: | China (Mainland) |
| weight: | not more than 32g |
| size: | 20.5*27*33.4mm |
Quick Details
Specifications
MY2(HH52P) 12VDC,10A General Purpose relay
Features:Various relays, including LED and high capacity
with 2Z, 3Z, 4Z contact forms
with various terminal types
Gilt contact type
Dust-proof cover, various mounting types
Various sockets available
Technical details:
Model:MY2(HH52P)
Coil rated voltage:DC6-110V,AC6-220V
Coil rated power:DC0.9W,AC1.2VA
Electrical Life:105OPS
Mechanical life:107OPS
Operating temperature:-40C~70C
Weight:32g
Mounting methods:Printed Circuit board Flange,outlet

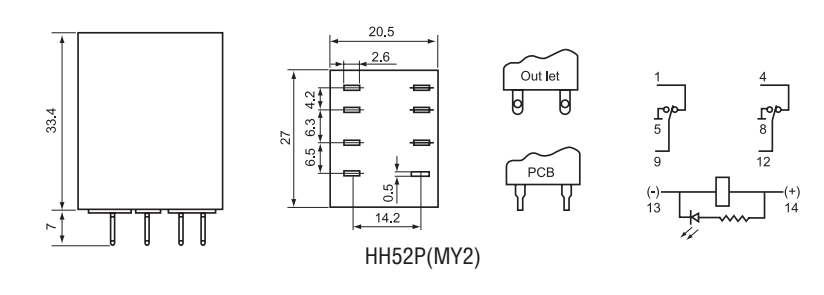

Outline and size

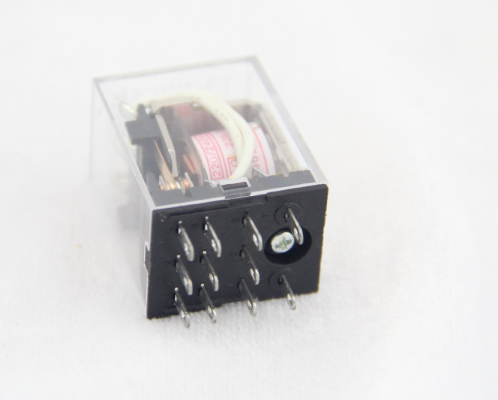

Product's pciture
