| Application: | Laser Cutting |
|---|---|
| Certification: | CE |
| Brand Name: | Taiyi Laser |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Metal |
| Laser Type: | Fiber Laser |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | TY-3015JB |
| Place of Origin: | China (Mainland) |
| Control Software: | Cypcut |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 80m/min |
| Cutting Area: | 3000*1500mm |
| Cutting Thickness: | 1-20mm depend on laser power |
| Condition: | New |
| Product name: | Hot Sale China Sheet Metal CNC Fiber Laser Cutting Machine Price For Sale |
| Model: | TY-3015JB |
| Laser power: | 500-3000W |
| Cutting speed: | 80m/min |
| Max. acceleration: | 1.0G |
| Machine power: | 8-26KW |
| Machine weight: | 8600kgs |
Quick Details
Specifications
High Efficiency Metal Saw Blade CNC Fiber Laser Cutting Machine
Product Description
Machine Application
Applicable Material:
Fiber Laser Cutting machine is used for cutting sheet metal&pipes:
Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, etc..
ApplicAble Industries:
Fiber Laser Cutting machine is mainly applied in metal processing: metal plate&tubes, secure door, charging pile, auto parts, spaceflight, electronic parts, subway parts, machinery, precision components, ships, elevator, kitchenware, gifts and crafts,, metal art ware, tool processing, adornment, advertising letters, ironware, chassis, racks and cabinets, hardware, glasses frame, nameplates, etc..
Specification
| Laser Source | IPG/Nlight/Raycus/Max |
| Machine Body | Gantry structure |
| Max running speed | 120m/min |
| X/Y positioning accuracy | 0.03mm |
| Power Supply | 380V 50Hz/60Hz |
| X/Y repeated location precision | 0.03mm |
| Running Temperature | 0C-40C |
| Max Acceleration | 1.0G |
| Machine gross power | 8-26KW |
| Applied Materials | Thin mild steel, stainless steel and other kinds of metallic sheets |
| Cutting Area | 3000mm*1500mm/4000mm*2000mm/6000mm*2000mm |
| Total Weight | 8600KGS |
| Laser Power | Max cutting thickness | |||
| Carbon steel(mm) | Stainless steel(mm) | Aluminum (mm) | Brass (mm) | |
800W |
8 | 3 | 1 | 1 |
| 1000W | 12 | 4 | 2 | 2.5 |
| 1500W | 14 | 5 | 4 | 3 |
| 2000W | 16 | 6 | 5 | 4 |
| 3000W | 22 | 10 | 6 | 8 |
above parameter for reference only | ||||

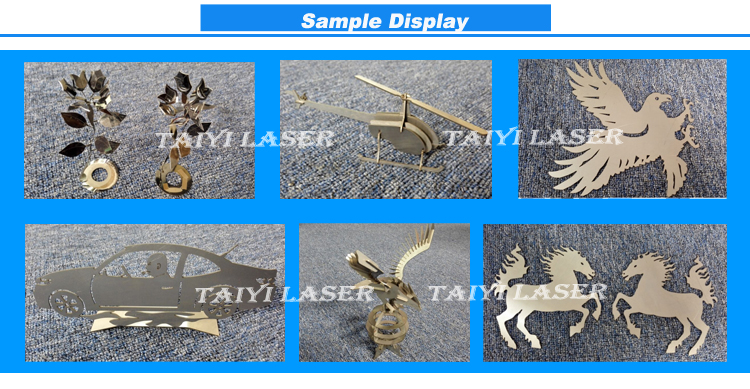

Sample display
Why Choose Taiyi Laser
1. Brand Protection
2. Quality Assurance & High cost-effective
3. China manufacturer with Competitive price
4. Multi-language service with Quick response
5. Engineer overseas service available
6. OEM available
Training
after signing the contract, your company can arrange technologist to our factory or we can arrange engineer to customer's factory. the training content as follow:
A) Common cutting software training;
B) Machine on and off procedures;
C) the significance of control panel and software parameters, parameters range setting;
D) Basic cleaning and maintenance of the machine;
E) Common Hardware Trouble shooting;
Warranty
A). 2 Year for the whole machine(Man-made Damage is negotiated.).
B). Laser source 2 Year warranty
C). Lifelong maintenance and spare parts supply
D). Free training for operation staffs. (engineer can go abroad is negotiated.)
