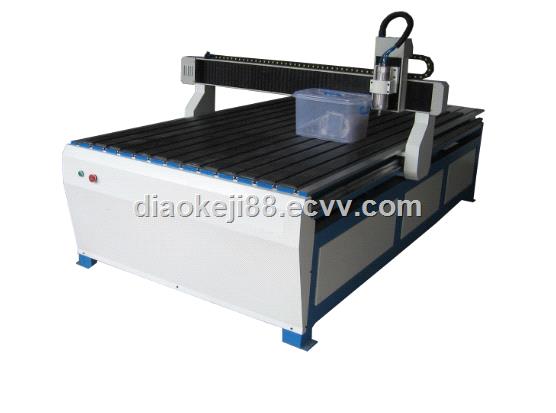

1318 plastic cutting machine, drilling, drawing groove
Plastic cutting machine, plastic processing machine, plastic cutting router, CNC router, wood cutting machine

1318 plastic cutting machine,Performance advantages:
1, the use of imported linear square rails, double row four ball slider, bearing capacity, smooth operation, high precision, long life. Import ball screw high precision, accurate under the knife.
2, one computer control cabinet, more convenient, clean and tidy. Design more humane, using a unique intelligent budget rule, give full play to the potential of the motor to achieve high-speed processing, straight line curve, the curve is more perfect, does not account for computer memory and can achieve the automatic start and stop cutting spindle.
3, software compatibility, compatible type3 / Artcam / Castmate / Wentai and other CAD / CAM design software.
4, the use of high-speed drive stepper motor and drive, Y-axis with a dual-motor drive, so that high-speed operation up to 30 m / min or more empty line speed, with strong cutting spindle can make the carving speed is more improved.
5, equipped with automatic lubrication system, just a touch can be on all rail slider oil.

1318 plastic cutting machine,the main purpose:
1, woodworking industry: MDF, MDF, particleboard, synthetic plate hollow engraving, cabinet doors, solid wood doors, craft doors, Mianqi doors, screens, craft fan window processing, shoe shine machine, game cabinets and panels, mahjong Table, computer tables and plate furniture products, auxiliary processing.
2, the advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, a variety of materials advertising decorative products.
3, other industries: you can carve a variety of large relief, shadow carving, widely used in craft gift industry.
4, flat wood, acrylic, organic board, stone, plastic, MDF (MDF) and other materials line carving, cutting, chamfering, drilling two-dimensional sculpture and three-dimensional relief

1318 plastic cutting machine,Parameters:
Model 1318 - Plastic Cutting Machine
1 XYZ work area 1220x1800x120mm
2 Table size 1440X2345mm
3 XYZ travel positioning accuracy 0.03 / 300 mm
4 XYZ Relocation positioning accuracy 0.04 mm
5 X, Y structure ball screw, shaft linear bearing
6 Z structure ball screw, shaft linear bearing
7 maximum power consumption of 3.5 kilowatts
8 maximum speed 0-6000mm / min
9 maximum working speed 0-5000mm / min
10 Spindle motor 2.2Kw Self-cooling liquid spindle (option: 3.0Kw HSD)
11 Spindle speed 0-24000RPM
12 working mode step
13 Working voltage AC220V / 50 / 60HZ
14 command G code, * uoo, * mmg, * plt
15 operating system DSP system
16 interface USB
17 flash memory 128M
18 XYZ work fine <0.01mm
19 software Type3 software, Wentai software, Artcam software
20 Operating ambient temperature: 0 C to 45 C
Relative humidity: 30% ~ 75%
21 Package size 1800x2330x1450mm
22 net weight 500KG
23 Total weight 550KG
All the above parameters are subject to change without notice
