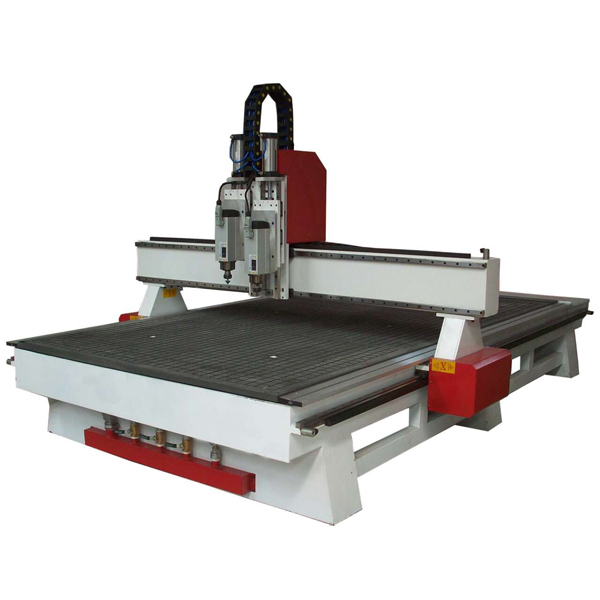

Multi-process automatic tool change, 1325QD wood cutting CNC machine
Multi-process CNC machine, wood cutting CNC machine, automatic tool change CNC machine, wood processing center, pneumatic engraving machine,
Product NaMe: Cylinder type -1325-2T
 1325QD wood cutting CNC machine,Its main application industry:
1, woodworking industry: three-dimensional wave board processing, cabinet doors, solid wood doors, craft doors, Mianqi doors, screens, craft fan window processing, shoe shine machine, game cabinets and panels, mahjong tables, computer tables and plate furniture products Auxiliary processing.
2, this paragraph models suitable for 2-3 kinds of flower knife engraving engraving, a variety of flower-type processing without the need for tool change, the program automatically run, its
1325QD wood cutting CNC machine,Products:
the main feature is the investment of small funds, high income, and maintenance of small, easy to operate, for poor CNC operation,
It is also easy to program.
2, advanced motion control system, automatic completion of multiple levels of 3D processing, to carry out fast, smooth three-dimensional processing, engraving or cutting, can be achieved offline operation.
3, the overall steel structure welding, tempering aging treatment, solid deformation, gantry movement, work surface fixed, can be processed on the work surface of the material.
4, the use of imported linear square rails, double row four ball slider, bearing capacity, smooth operation, high precision, long life Import ball screw high precision, accurate under the knife.
5, software compatibility, compatible type3 / Artcam / Castmate / Wentai and other CAD / CAM design software.
6, six partition vacuum adsorption table, can be effective for different sizes of plate adsorption. Vacuum pump can choose imported brands of oil-free vacuum pump to solve the cold weather of the water cycle vacuum pump trouble for water problems.
7, the use of high-speed drive stepper motor and drive, Y-axis with a dual-motor drive, so that high-speed operation up to 35 m / min or more empty line speed, with cutting the spindle can make the carving speed is more improved.


1325QD wood cutting CNC machine, performance parameters:

Model woodworking engraving machine
X, Y axis travel 1300 2500mm
Z axis travel 200mm
Maximum operating speed of 35m / min
Maximum engraving speed of 25m / min
Resolution 0.005mm
Repeat positioning accuracy of 0.05mm
Clamping method vacuum adsorption
Engraving instruction G code *.U00 *.Mmg *.Plt
Software operating environment Windows98 / 2000 / xp
Control system
Operating voltage AC380V / 50Hz
Spindle power 4.5KW 6.0KW (air cooling)
Spindle speed 0-24000rpm / min
Working way step
Drive the rack
Running rail three-axis all-rail (Taiwan production, silver or AMT)
Change the pneumatic tool change
