| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Type: | Filling Equipment |
| Application: | Liquid |
| Brand Name: | IVEN |
| Condition: | GOOD |
Quick Details
Specifications
Main application

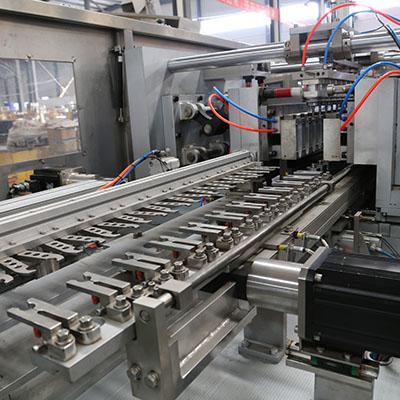

this unit is made up of CLQ Ultrasonic Vertical Washing Machine, RSM Sterilizing & Drying Machine and KGYX Filling & Sealing Machine.
Divided into three working areas of washing, sterilizing & drying and filling & sealing. It can be either used in-line or in the form of three single machines. Can automatically finish the processes of water spaying, ultrasonic wave washing, compressed air blowing, recycling water flushing, compressed air blowing, fresh high-temperature sterilizing, cooling, bottle-collating, filling, cap-collating, stopppering, panel mounting and so on for vials.
Can be equipped with Servo-motor, more stability and accuracy.
Technical parameters
| Model | Production line | Suitable size | Output(max) | Power | Net weight | Overall size |
|---|---|---|---|---|---|---|
| BXKZ I | CLQ 40 | 2.25ml | 6000-12000 pcs/h | 69.8KW | 7500Kg | 993025002340mm |
| RSM 620/44 | ||||||
| KGF 8 | ||||||
| BXKZII | CLQ 60 | 2.25ml | 8000-18000 pcs/h | 85.8KW | 8000Kg | 1083025002340mm |
| RSM 620/60 | ||||||
| KGF10 | ||||||
| BXKZ III | CLQ 80 | 2.25ml | 10000-24000 pcs/h | 123.8KW | 8100Kg | 1083025002340mm |
| RSM 900/100 | ||||||
| KGF 12 |
