1.Brief Introduction:

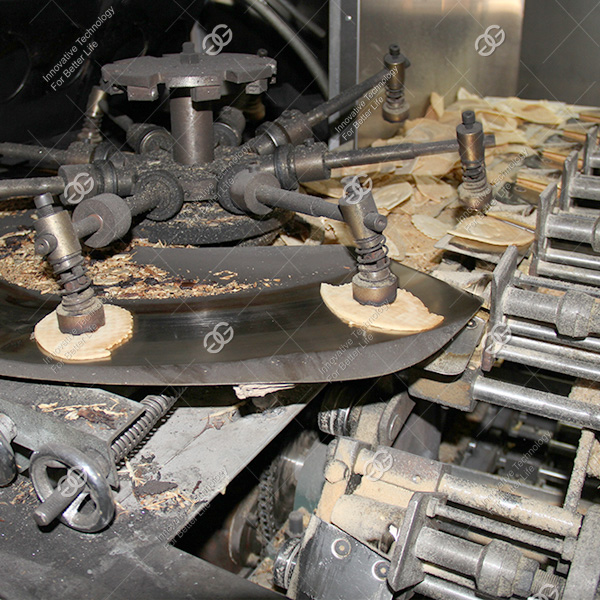

  The ice cream cone machine producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.



2.Techincal parameters:



Model	LG-55
Drive motor	380V 1.5KW
Gas consumption	5-7 kg/h
Producing capacity	4000-5000 pcs/h
Machine measurement	9000*1900*1850 m
Total weight	5100kg



3.Performance features:
Features of Automatic Sugar Cone Production Line
(1)Cone making machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
(2)It is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
(3)We can also design and produce other specifications and models according to our customers' requirements.
The same furnace, choose different molding device, can produce round cake, egg roll, egg roll, etc.
