1.Brief Introduction:



this pizza cone baking machine can form 60 pieces pizza cone one time, and the baking time is about 1 to 2 minutes. so this machine can produce pizza cone about 1800 to 2400 pieces, high production capacity can meet big requirement of market, ideal equipment for customer for large production. with the improvement of technology, this machine is easy operation, one woman can operate this machine easily.



2.Techincal parameters:



Model	GG60A
Capacity	36pcs/time(Max.60pcs/time)
Pizza Cone Size	Height16cm*dia.7cm
Baking time	1-2min
Material of Machine	Cast Iron Mould, Machine covered with carbon plate and stainless steel plate
Voltage	380V
Power	21KW
Dimension	1260*1140*1400mm
Gross Weight	950kg



3.Performance features:

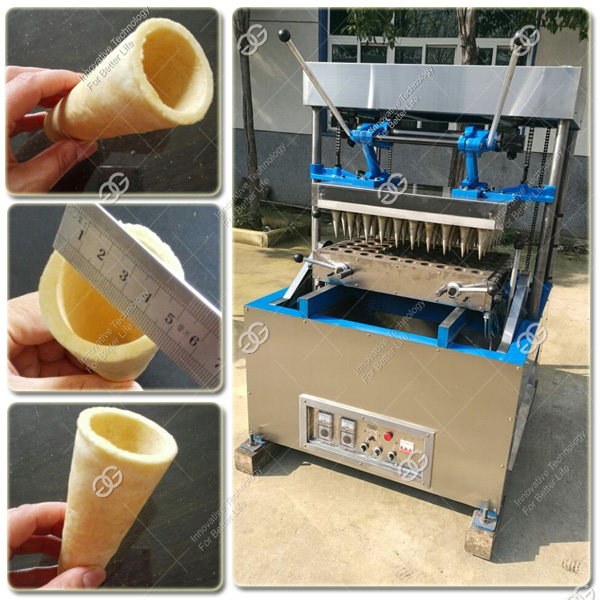

Automatic Pizza Cone Machine Structure:

 1. the base and lid, with four columns form this pizza cone equipment, the first two columns as guide pillar, the base is the installation benchmark for mould, bearing the weight of the total weight of the machine at the same time; the roof is the installation of the upper die, lower die set slide, advantageous to the finished product collection. Electric box at the bottom of the rack.

2. Mold: Consists of the upper die and lower die and the manipulation rack

3. Electrical parts: Electronic components concentration in a frame at the bottom of the drawer, loose screws can pull out.

4. the machine is corollary equipment for pizza cone oven, used to place pizza stuffing, cheese, or other fillings.
