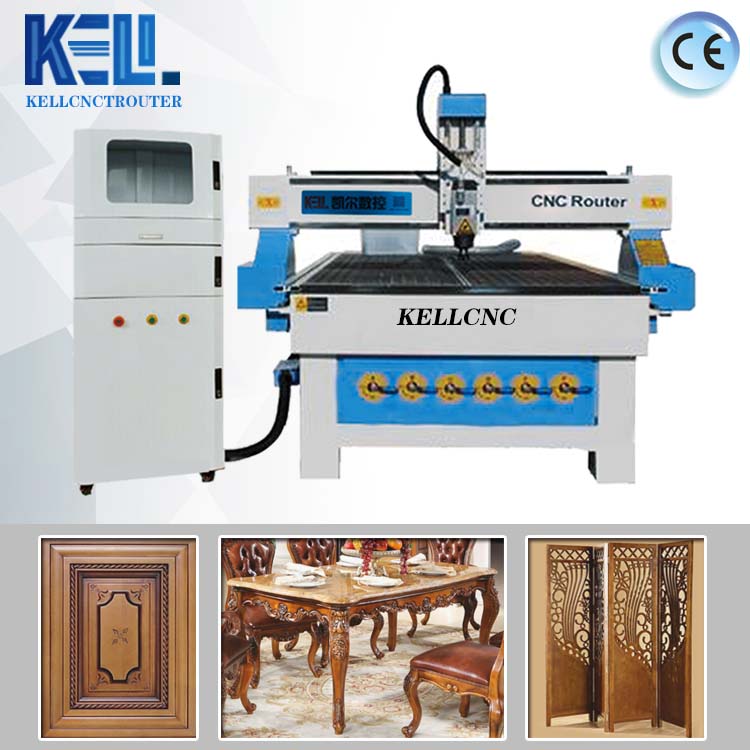

(1325 woodEngraving machine)Basic Info

 Model NO.: Kell CNC router

 Spindle Layout: Vertical

 Feed Mode: Mechanical

 Condition: New

 Working Area: 1300*2500*200mm(Working area X axis 1300mm  Y axis 2500mm Z axis 150mm )

 Z Axis Transmission: Taiwan TBI Transmission

 X Y Axis Transmission: Gear and Rack Transmission

 Precision Processing precision :0.03mm

 Speed Max travel speed:20m/min

 Max engraving speed:11M/min

 Inverter: Taiwan RuipuInverter

 Weight: 1300KG

 Type: Engraving Router

 Spindle Number: Spindle

 Controlling Mode: CNC

 Control System: Weihong  53C Control System

 Spindle Power: 3.2KwWater Cooling Spindle

 Motor and Driver: Leadshine Stepper Motor and Drivers

 Dimension(L*W*H): 3110X1800X1550mm

 Voltage: 380V/50Hz

 Origin: Jinan Shandong China

 Equipment introduction:

 1, the use of high-precision rail, double row, four column slider, bearing capacity, smooth operation, high precision, long life, lower precision

 2,and T structure, strong load-bearing capacity, small deformation

 3, constant power spindle motor, cutting power, high efficiency

 4, the software compatibility is good, compatible with Typ3/Artcam/Castmate/, Wen Tai and other CAD/CAM design software

 5, bidirectional tool cooling system, effectively improve the service life of tools

 6,Scope of application:

1.Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc

2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould

3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC,etc

4.Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
