the following example is for you reference.


1.Brief Introduction:

  1212 CNC machine, its main application industry:
1, woodworking industry: MDF, MDF, particleboard, synthetic plate hollow engraving, cabinet doors, solid wood doors, craft doors, Mianqi doors, screens, craft fan window processing, shoe shine machine, game cabinets and panels, mahjong Table, computer tables and plate furniture products, auxiliary processing.
2, the advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, a variety of materials advertising decorative products.
3, other industries: you can carve a variety of large relief, shadow carving, widely used in craft gift industry.
4, flat wood, acrylic, organic board, stone, plastic, MDF (MDF) and other materials line carving, cutting, chamfering, drilling two-dimensional sculpture and three-dimensional relief




2.Techincal parameters:
Performance parameters:
Model 1212 NC router
X, Y axis travel 1200 1200mm
Z-axis travel 120mm
Maximum operating speed of 10m / min
Maximum engraving speed 6m / min
Resolution 0.005mm
Repeat positioning accuracy of 0.05mm
Clamping method Clamp clamping or vacuum adsorption
Engraving instruction G code *.U00 *.Mmg *.Plt
Software operating environment windows98 / 2000 / xp
Control system DS control
Operating voltage AC220V / 50Hz
Spindle power 2.2KW water cooling
Spindle speed 0-24000rpm / min
Working way step
Transmission mode high precision screw
Running guide three-axis full rail





3.Performance features:

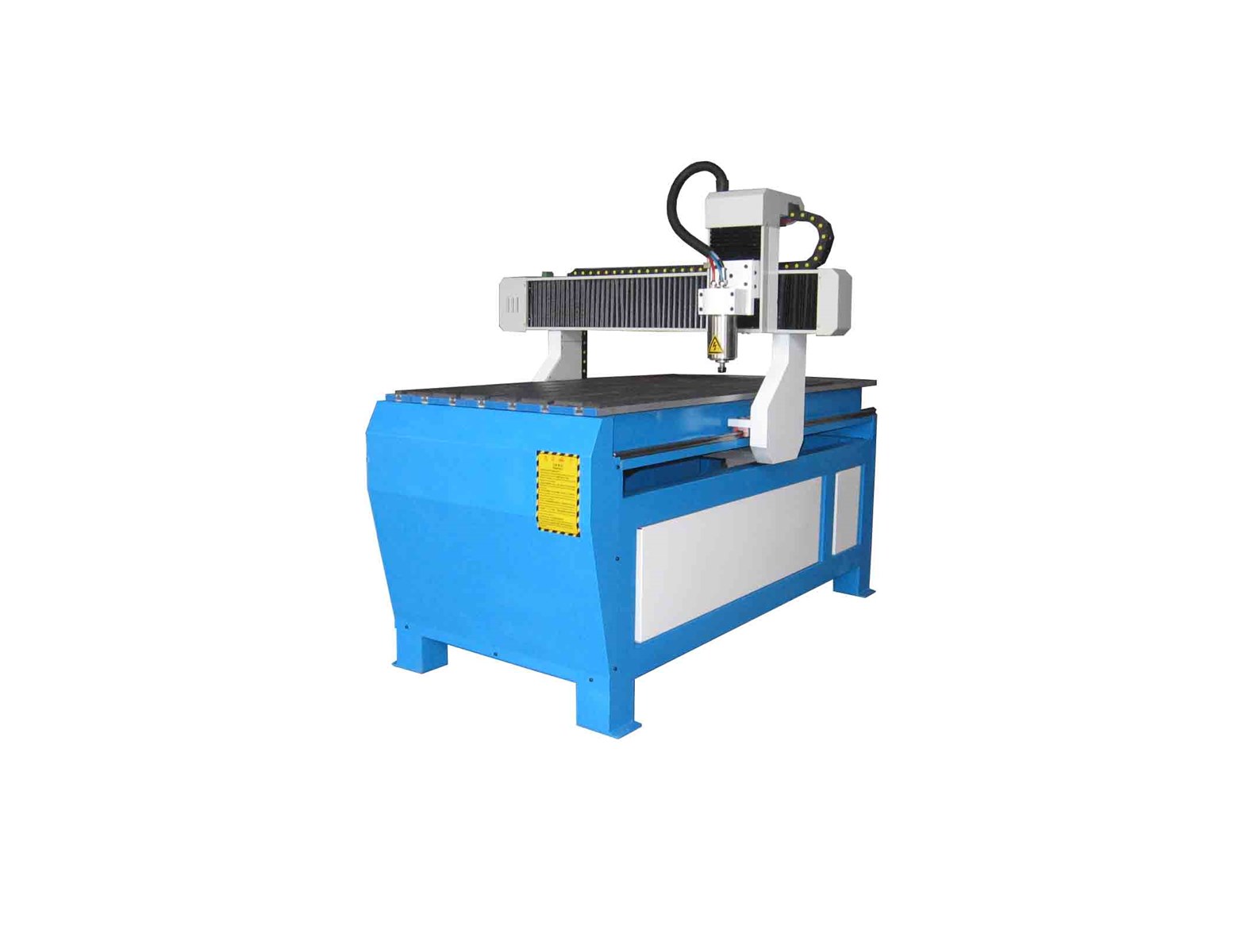

DSP handle control 1212 CNC machine
1212 CNC machine, performance characteristics:
1, the use of imported linear square rails, double row four ball slider, bearing capacity, smooth operation, high precision, long life. Import ball screw high precision, accurate under the knife.
2, one computer control cabinet, more convenient, clean and tidy. Design more humane, using a unique intelligent budget rule, give full play to the potential of the motor to achieve high-speed processing, straight line curve, the curve is more perfect, does not account for computer memory and can achieve the automatic start and stop cutting spindle.
3, software compatibility, compatible type3 / Artcam / Castmate / Wentai and other CAD / CAM design software.
4, the use of high-speed drive stepper motor and drive, Y-axis with a dual-motor drive, so that high-speed operation up to 30 m / min or more empty line speed, with strong cutting spindle can make the carving speed is more improved.
5, equipped with automatic lubrication system, just a touch can be on all rail slider oil.
