MS203 Reel Wrapper for Narrow Rolls Stretch Film Packing

MS203 Reel wrapper is a semi-automatic Wrapping system with chain-driven which designed to stretch wrap roll product by turning the roll on steel blocking rollers while spinning the product on a Turntable. this creates a " cocoon" wrap pattern and provides complete Protection of the roll.

Product details

Export markets:   north America,south America,eastern Europe, Southeast asia, oceania,MID east asia, westem Europe;

Place of oriagn: Shenzhen city of china

Packaging details: standard wooden package;

Quick details

Application: Printing, glass, cans, Electrons etc

 Model number:MS203         Control softare:MQS

Turntable Diameter:2000mm

Application material:Metal    Type:pre-stretch Film carriage roll wrap machine

Control system:PLC

Motor brand:TCG/Taiwan       PLC: Panasonic/Janpan

after-sales service provided:engineers Available to over sea

Brand name:MQSPAC        Certification:ccc,ce,iso,

 Power:1PH,220V,1.5KW      turntable Speed:15 rpm

Product size: 500-1600mm,customized   Condition:new

Machine size: 3200 x 2000 x 2200mm  Color:white and orrange

Specifications

1. Technical Parameter

Item	Parameters
Model	MS 203
Packing speed	20~40 Rolls/hour
Reel diameter	500-1500mm,customized
Reel width	500-1600mm,customized
Turntable diameter	2000mm,customized
Turntable weight capacity	2000kg ,customized
Turntable height	460mm,customized
Turntable speed	0-12rpm Adjustable turntable speed ,customized
Control system	PLC control, wrap layers Adjustable,customized
Film carriage	Power pre-stretch system up to 350% with adjustable,customized
Power	2.0KW, 380V 50HZ 3P
Machine size	3200 x 2000 x 2200mm
Machine weight	1100kg
Pneumatic system	0.6-0.8MPa,200NL/min

2. Professional Reel Wrapper Control Introduction

1.Reel wrapper ideal for wrapping paper Rolls & non-woven rolls;



2.Especially good for narrow rolls, with Top press arm to hold the roll;

3.Powered pre-stretch film carriage, ratio 250%(customized).



4.Automatic wrapping according to pre-set Parameters. Friendly user interface for setting wrap cycles and film tension.



5.Auto height detection, turntable home Position, forklift sockets for easy moving



6.Full wrapping of rolls,all-round Protection products, moistureproof, prevent scratching, reduce scrap rate;



7 It is ideal for reel axial Wrapping-across the cylindrical diameter then along the longitudinal axis;



5 According to the actual needs of the Packaging, can choose standard reel wrapper or automatic ejection type, or Automatic online equipment.

FAQ.

1)      how can I get the training after I order the machine?

A:machine manual and operation CD will be supplied with you for each machine~!

B:we have Processional engineer team to supply 24 hours service online

C:engineer Available to service machine oversea

D:welcome come to our factory to get training in any time~!



UnderCFR or CIF terms,we are responsible for shipping from china Port to the destination port.Under FOB/EXW terms,clients shall arrange shipment by themselves or their agent.

3)      how is the packing?

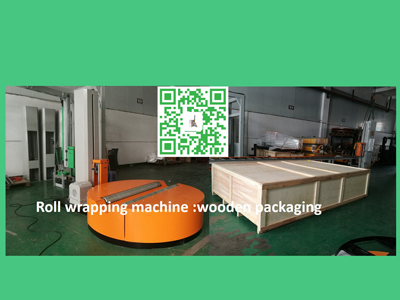

Water-proof Plastic film package with foam protection in each corner.

Solid seaworthy Wood box package with PET belt

Save space as Much as possible for container loading

We are professional manufacturer of  Wrap machines with export license.

5)      Where is your factory Located?how can I visit there?

Our factory is located in ShenZhen city,Guangdong Province.It will take 30mins from ShenZhen International airport,2 hours from GuangZhou.

6)      Can you do OEM?

Yes,we can do OEM products.It's no problem.

7)I never use this Kind of wrap machine before,is it easy to learn?

User-

Friendly English manual and operation video Will be send together with the machine.If there is still and question,we can Talk through phone or skype or wechat or whatsapp.

Moreover,you could come to our factory to Learn how to use it before shipment.Our technician will give you professional Guidance.

8)      how Could I know if this machine is suitable for me?

Before ording, we will provide every Details of the orbital wrap machine for you reference,or you could tell us your Detailed requirement,our technician will recommend the most suitable machine For you.Futhermore, before shipment, we can pre-test the equipment to see if it Meets your requirements

MQSPAC is the professional manufacturer of Wrapping machine and,if you need any support our help,pls just feel free to contact with me

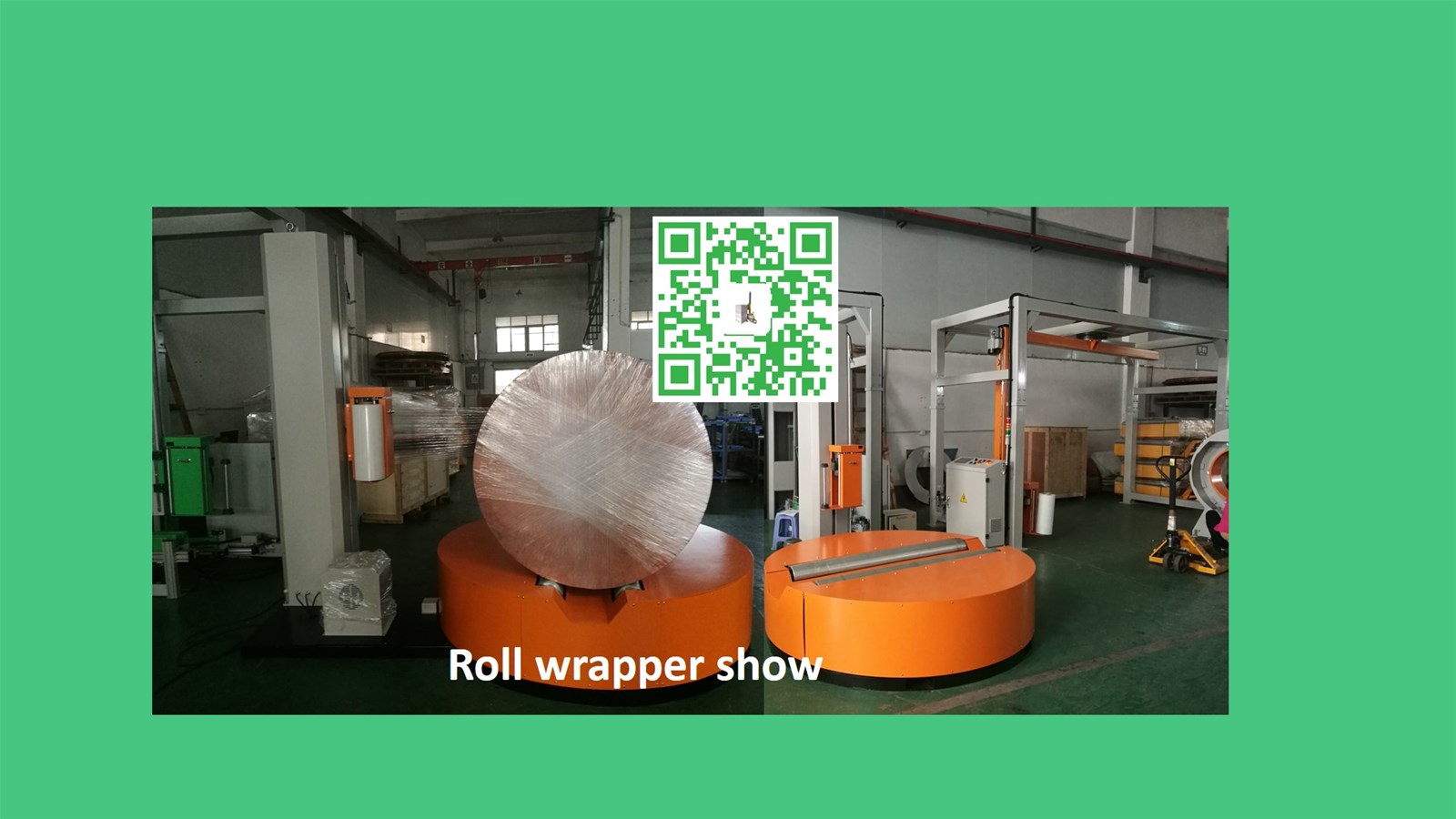

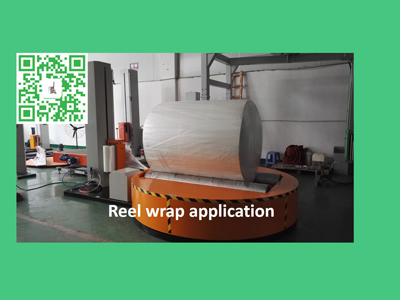

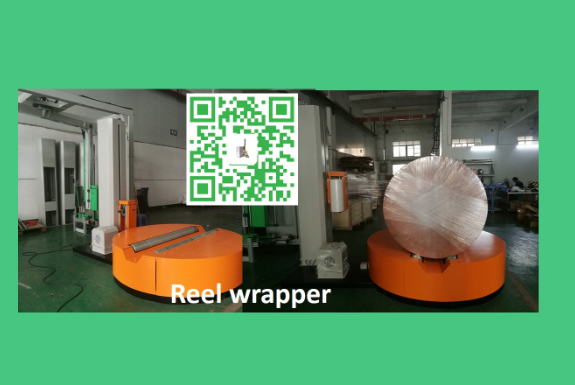

Reel wrapping machine details:

Reel WrapperOperation  Video:
