| Max. Power: | 255w |
|---|---|
| Number of Cells: | 60 |
| Size: | 1640*992*40mm |
| Material: | Polycrystalline Silicon |
| Brand Name: | GS |
| Model Number: | GS-P255W |
| Place of Origin: | China (Mainland) |
| Connector: | MC4 |
| Glass: | 3.2mm |
| Frame: | Aluminum |
| Cable: | L1000+/-5mm |
| Weight: | 19.6kg |
Quick Details
Specifications

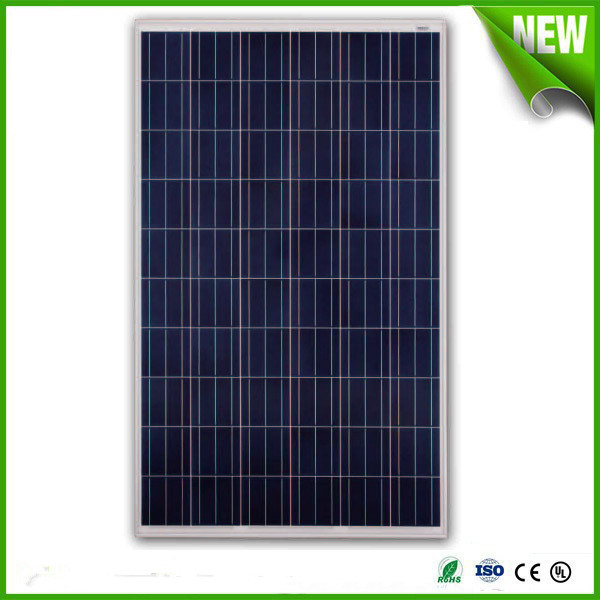

255w poly-crystalline silicon solar panel for solar system
1. Rigorous quality control meets the highest international standards. 2. High-transmissivity low-iron tempered glass, strong aluminium frame. 3. Using UV-resistant silicon. Warranties 1. 10 years limited product warranty 2. 15 years at 90% of the minimal rated power output
Quality and Safety
3. 25 years at 80% of the minimal rated power output
Specification:
ITEM NO.:
Poly 156*156 cell,60pcs. Power range from 230Wp-260Wp Maximum Power(W)
230
235
240
245
250
255
260 Optimum Power Voltage(Vmp)
29.0
29.2
29.4
29.5
29.7
30.1
30.3 Optimum Operatige Current(Imp)
7.59
7.71
7.83
7.97
8.08
8.14
8.25 Open Circuit Voltage(Voc)
36.4
36.6
36.7
36.8
36.9
37.1
37.3 Short Circuit Current(Isc)
8.32
8.4
8.52
8.59
8.62
8.65
8.69 Solar Cell:
156*156 Poly Number of Cell(pcs)
6*10pcs Brand Name of Solar Cells
JA Cell, NSP Cell Size of Module(mm)
1650*992*40/45/50 Cable & Connector Type
Pass the TUV Certificate Frame(Material Corners,etc.)
Aluminium-alloy Backing (Back sheet)
TPT Cell Efficiency for 240W(%)
15.6% Weight Per Piece(KG)
19.5KG FF (%)
70-76% Junction Box Type
Pass the TUV Certificate Tolerance Wattage(e.g.+5%)
+3%, Front Glass Thickness(mm)
3.2 Temperature Coefficients of Isc(%)
+0.04 Temperature Coefficients of Voc(%)
-0.38 Temperature Coefficients of Pm(%)
-0.47 Temperature Coefficients of Im(%)
+0.04 Temperature Coefficients of Vm(%)
-0.38 Temperature Range
-40C to +85C Surface Maximum Load Capacity
5400Pa Allowable Hail Load
23m/s,7.53g Bypass Diode Rating(A)
12 Warranty
100% of 10 years,80% of 25 years. Standard Test Conditions
AM1.5 1000W/M 2 25 +/-2C Packing
Carton or pallet 1*20'
14 Pallets / 316pcs 1*40'STD
25 Pallets / 700pcs
